LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
Specifications
Brand Name :
THLB
Model Number :
12.8V12Ah
Place of Origin :
China
MOQ :
10 units
Price :
$50/units 10-999 units
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Payment Terms :
T/T
Cathode Materials :
LiFePO4
Operating Temperature(℃) :
-20-60
Capacity :
12.8V 12Ah
Charge Voltage :
14.4±0.1V
Charge current :
10A
Cycle life :
≥1500times 0.5C(80%DOD)
Internal Resistance :
≤40mΩ
Battery cell :
LiFePO4
Warranty :
2 Years
Features :
High Energy Density,Long Cycle Life etc
Description
6000 Cycles LiFePO4 Battery Pack 12 Volt 12 Amp 3.2 Volt 1800mAh 4S6P Battery
Internal Resistance below 40 milliohms 12 volt 12 amp hour LiFePO4 18650 3.2 volt 1800mAh 4S6P Lithium Ion Battery Pack
Factory Sale LiFePO4 battery pack lithium ion 12v 12ah
Advantages Over Lead Acid Batteries
  • Longer cycle lifespan
  • Smaller and lighter design
  • Higher energy density for greater current output
  • Superior temperature adaptability
  • More environmentally friendly
  • Extended warranty coverage
Note: The following parameters are customized for presentation purposes. We can design, develop, and produce any customized battery according to your specific requirements.

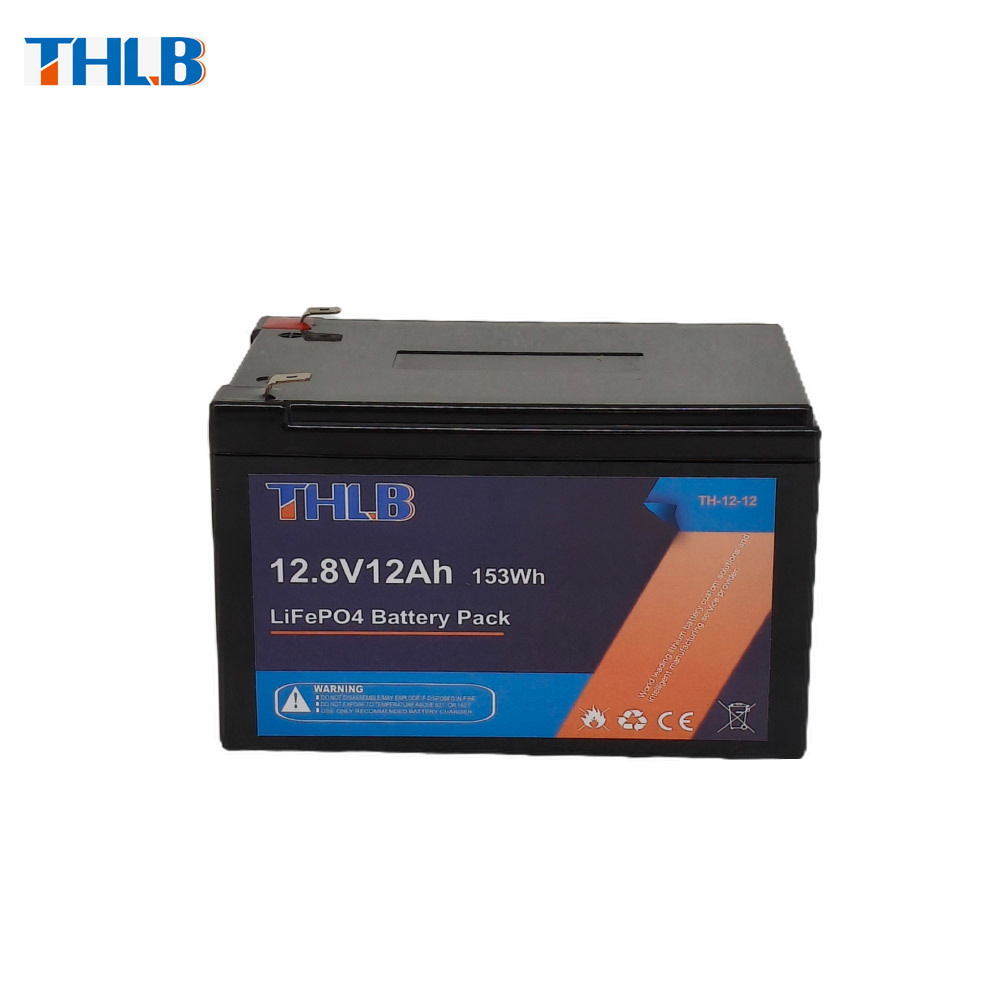

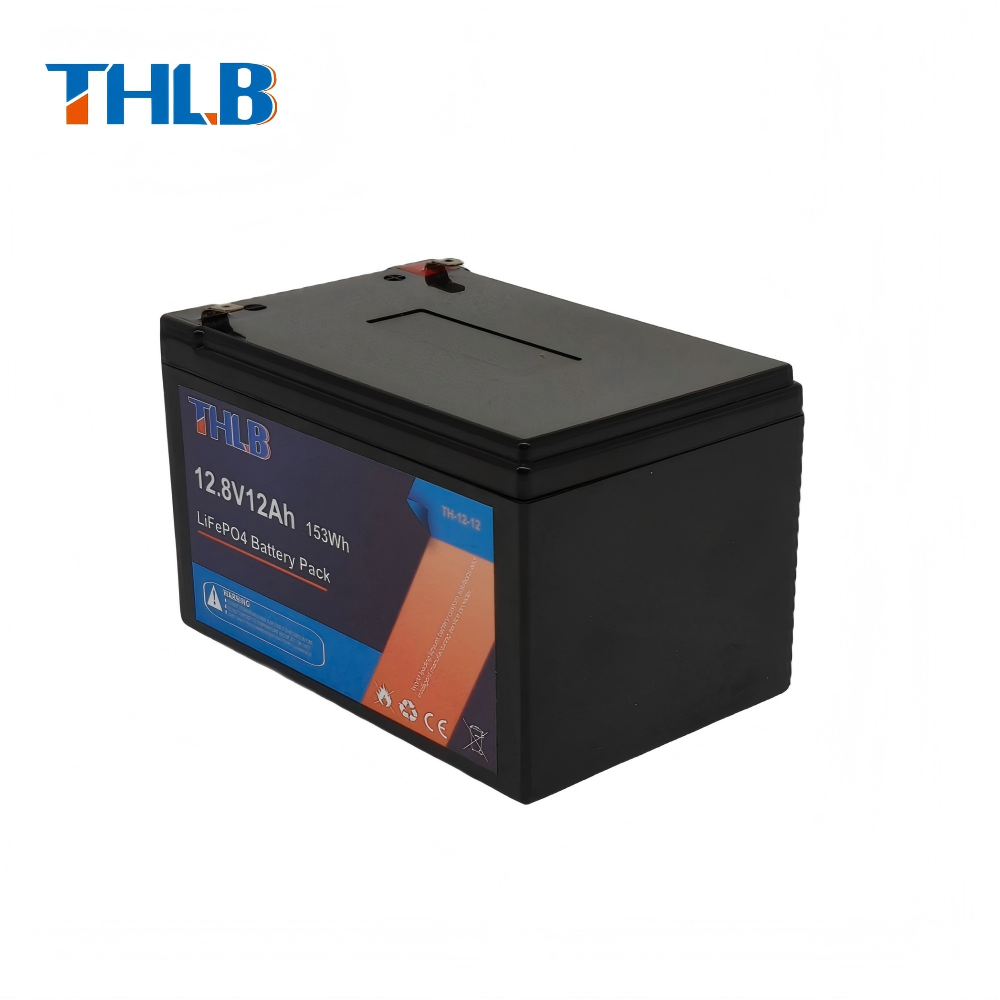

Product Images

LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries

LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries


Technical Specifications
MAIN KIT INCLUDES 1 x 12V12Ah LiFePO4 Battery Module
1 x 4S-15A PCM
1 x Plastic Battery Case
2 x F2 Terminals
Normal Voltage 12.8V
Normal Capacity 12Ah
Battery Energy 153.6Wh
Battery Cycle Life 1500 Times @80%DOD
Cell Configuration LiFePO4 18650 3.2V 1800mAh-4S6P
Reference Battery Size 151*99*99mm
Reference Battery Weight 1.4kg
Battery Encapsulation Plastic Case
Charge Voltage 14.4V
Charge Mode CC/CV
Normal Charge Current <=10A
Normal Discharge Current 6A
Max. Continuous Output Current 12A
Passive Protection Function Over charge protection; Over discharge protection; Over current protection, Charge balance function, etc
Operation Temperature Range Charge: 0°C---45°C
Discharge: -20°C---60°C
Battery Storage Temperature -20°C---25°C
Individual Cell Approval CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS
Packing & Delivery

LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
Company Profile
LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries LiFePO4 Battery Pack 12 Volt 12 Amp lead Acid replacement batteries
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: Size of the battery pack in mm, Capacity of the Battery pack, Voltage of the battery pack, Max discharge current, Cable and connector types needed, Casing and Terminals if required, Any protection circuits you may need.
Q7: Are your battery real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
