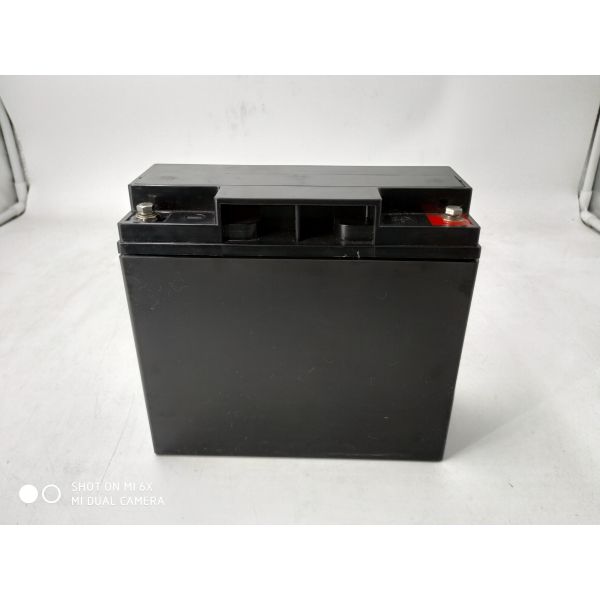

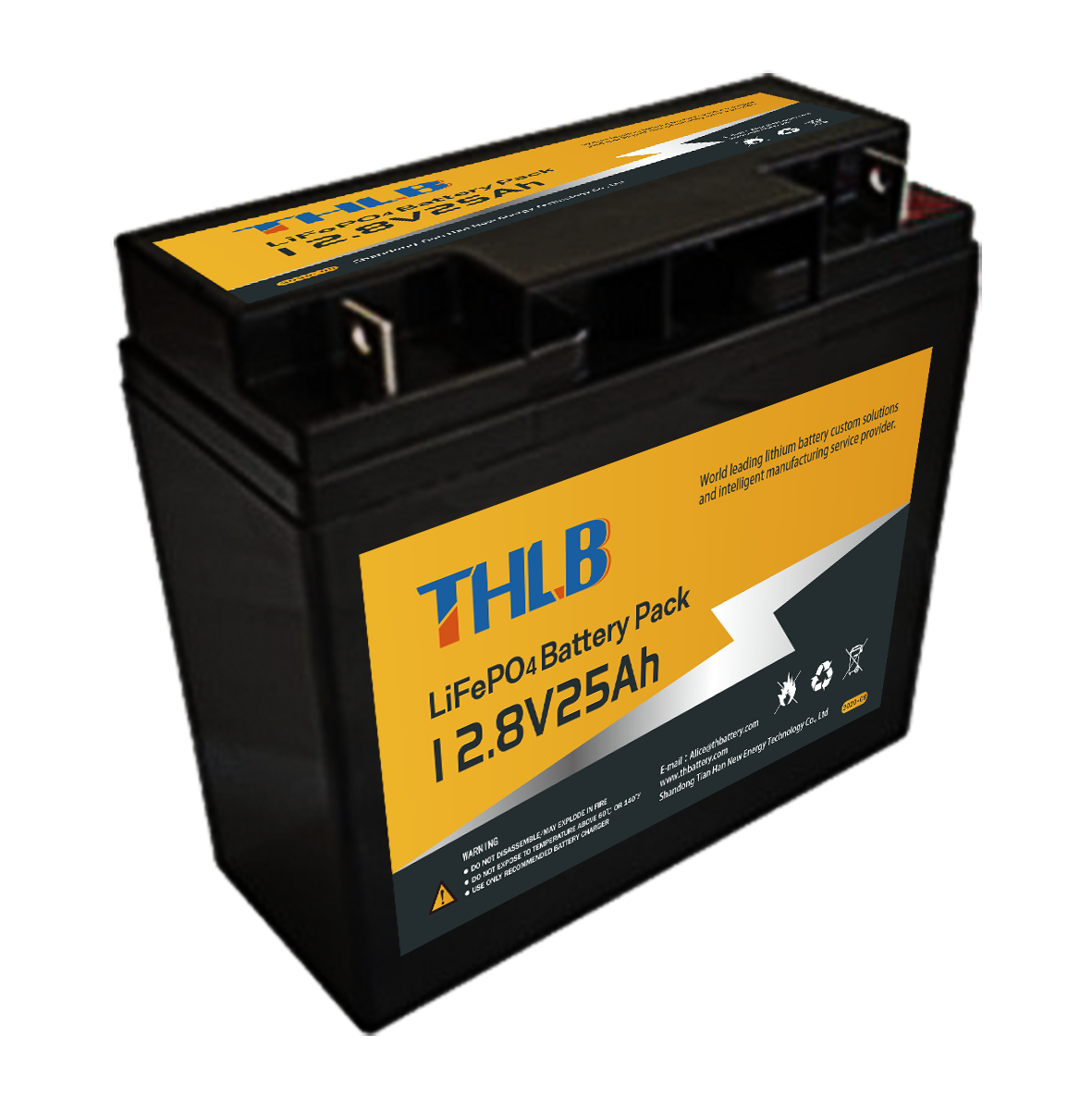

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack
Specifications
Brand Name :
THLB
Model Number :
12.8v 18ah, (26650-3.2V-4S6P)
MOQ :
10 pieces
Price :
$58/pieces 10-49 pieces
Max Load Quantity(cells) :
4
Cycle Life :
1000 cycles
Application :
Boats, Toys, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters
Operating Temperature(℃) :
-20-60
Cathode Materials :
LiFePO4
Type :
Li-ion
Voltage :
12V
Capacity :
18Ah
Category :
Rechargeable Batteries pack
Cycle Characteristic :
2000 times
Working Temperature :
-20°C~60°C
Battery Weight :
2.5±0.1kg
Reference Battery Size :
168x128x102mm
Place of Origin :
China
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description

12 Volt Customizable Lithium Ion Rechargeable Battery Pack Replacement Alternative for Lead Acid Boats Energy BackupCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

factory customized rechargeable battery lithium ion pack 12volt lithium battery for electric bike

Product Model

GC-12V-018LFP-B (26650-3.2V-4S6P)

Electrical

Characteristics

Normal Voltage

12.8V

Rated Capacity

18±1Ah(0.2C)

Energy

About 230.4Wh

Internal Resistance

≤40mΩ

Cycle Life

≥2,500times 0.2C(80%DOD)

Passive Protection Function

Over charge protection, Over discharge protection,

Temperature protection, Balanced function

Standard Charge

Charge Voltage

14.4±0.15V

Charge Mode

0.2C to 14.4V, then 14.4V,charge current to 0.01C (CC/CV)

Charge Current

4A

Max. Charge Current

5A

Standard Discharge

Continuous Current

20A

Max Continuous Current

≤30A

Max. Pulse Current

≤66A(≤1s)

Discharge Cut-off Voltage

About 10.0V

Environmental

Charge Temperature

0℃ to 45℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

0℃ to 40℃

Mechanical

Material System

LiFePO4

Material of Case

Plastic

Dimensions (mm)

168x128x102

Weight

2.5±0.1kg

Terminal

Torberry connector

Curves

Charge and discharge curve

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Cycles

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery PackCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery PackCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Company Information

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery PackCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery PackCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery PackCustomizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

Packing & Delivery

Customizable Lead Acid Replacement Battery Rechargeable Lithium Ion Battery Pack

FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
