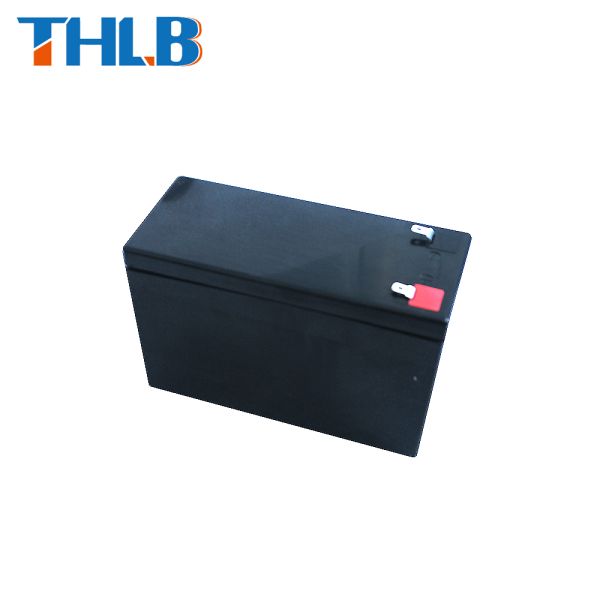

THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
Specifications
Brand Name :
THLB
Model Number :
12.8v 12ah
Place of Origin :
China
MOQ :
5 pieces
Price :
$28/pieces 10-49 pieces
Delivery Time :
7-15 Working Days
Packaging Details :
Standard Packaging
Cycle Life :
1500 cycles
Application :
Consumer Electronics, Boats, Solar Energy Storage Systems, Electric Wheelchairs, Golf Carts
Operating Temperature(℃) :
-20-60
Cathode Materials :
LiFePO4
Type :
Li-ion
Voltage :
12.8V
Capacity :
12Ah
Category :
Rechargeable Batteries pack
Working Temperature :
-20°C~60°C
Battery Weight :
1.4±0.1kg
Reference Battery Size :
151.5*99*100 mm
Color :
black
Description
Rechargeable THLB Battery 12.8V 7.5AH 8AH 12AH Lifepo4 Battery Pack
High-capacity rechargeable 12.8V LiFePO4 lithium ion battery pack with extended cycle life and professional-grade performance characteristics.
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
Package Contents
Item Quantity
12.8V 12Ah LiFePO4 Battery Module 1
PCM (Protection Circuit Module) 1
Plastic Battery Case 1
T2 Terminals 2
Product Specifications
Normal Voltage 12.8V
Normal Capacity 12Ah
Battery Energy 153Wh
Inner Resistance < 90mΩ
Battery Cycle Life 2000 Times @100%DOD
6000 Times @80%DOD
Cell Configuration LiFePO4 32700 3.2V 6000mAh-4S2P
Reference Battery Size (151.5±1)*(99±1)*(100±1) mm
Reference Battery Weight 1.4±0.1 kg
Battery Encapsulation Plastic Case
Charge Voltage 14.4V
Charge Mode CC/CV
Normal Charge Current 1.5A
Normal Discharge Current 4A
Max. Continuous Output Current 12A
Passive Protection Function Over charge protection; Over discharge protection; Over current protection, etc
Operation Temperature Range Charge: 0°C - 45°C
Discharge: -20°C - 60°C
Battery Storage Temperature -20°C - 25°C
Individual Cell Approval CE / RoHS / UN38.3
Safety Performance Classification
  • Resistance to heavy loads - tested according to regulations, no ignition or explosion
  • Resistance to thermal shock - tested according to regulations, no ignition or explosion
  • Anti-overcharge - tested according to regulations, no ignition or explosion
  • Resistance to overdischarge - tested according to regulations, no ignition or explosion
  • Resistance to short circuit - tested according to regulations, no ignition or explosion
  • High temperature storage - tested according to regulations, no leakage, smoke, fire or explosion
  • Anti-heating - tested according to regulations, no battery penetration through screen
  • Anti-puncture - tested according to regulations, no ignition or explosion
  • Anti-extrusion - tested according to regulations, no ignition or explosion
  • Resistance to low pressure - tested according to regulations, no leakage, smoke, fire or explosion
  • Constant damp heat - tested according to regulations, no deformation, rust, smoke or explosion
  • Anti-vibration - tested according to regulations, no damage, leakage, smoke or explosion
  • Anti-collision - tested according to regulations, no damage, leakage, smoke or explosion
  • Temperature cycling - tested according to regulations, no leakage, smoke, ignition or explosion
  • Flame retardant properties - meets GB/T2408-2008 FH-1 and FV-0 requirements
  • Insulation resistance - metal case insulation resistance not less than 2 MΩ
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
Our Company
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
Packing & Delivery
THLB 12.8V 12AH Lifepo4 Battery Pack
THLB 12.8V 12AH Lifepo4 Battery Pack
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping costs are not covered.
Q2. What about the lead time?
A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: Minimum order quantity is 100 pieces.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small trial orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or sea shipping.
Q5. How to proceed an order for Lithium ion cell?
A: Confirm cell models of interest, receive specifications and quotation, confirm order quantity, issue purchase order, and production begins after deposit or full payment confirmation.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcomed.
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty included.
