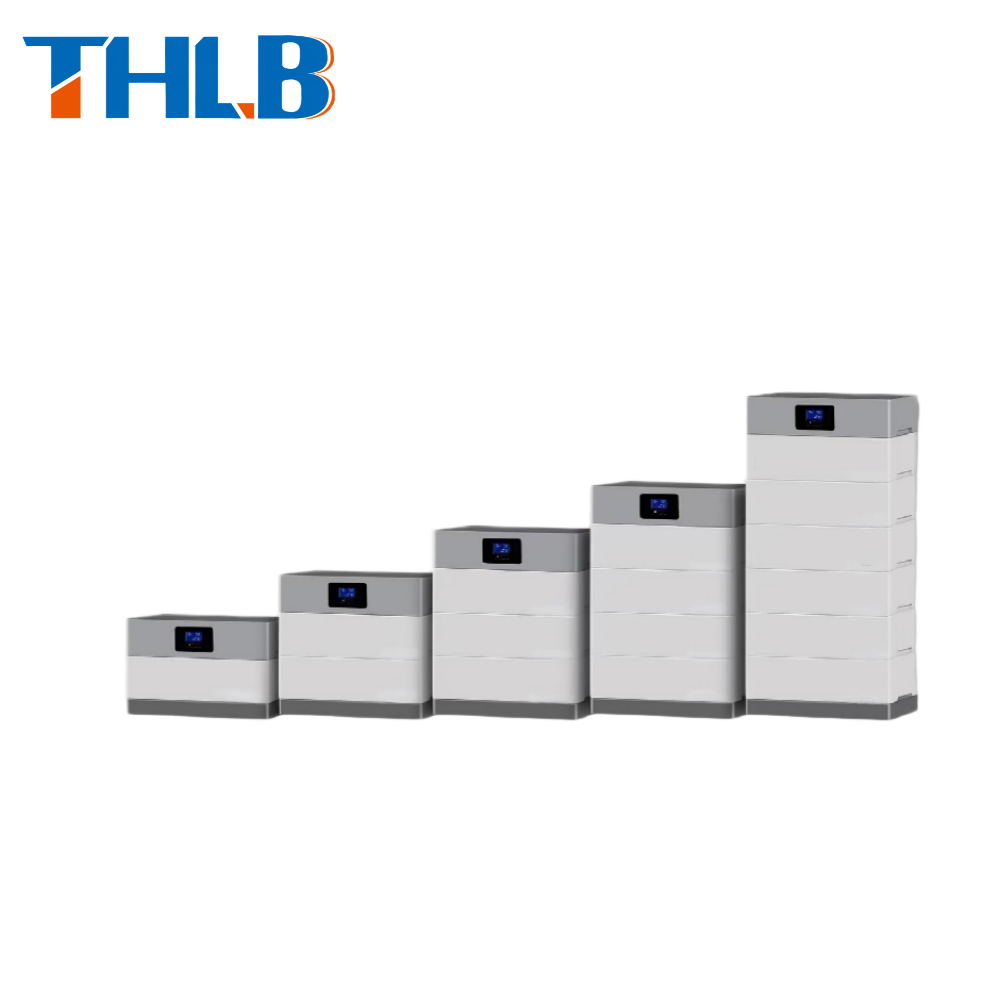

New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
Specifications
Model Number :
723.2V300Ah
Delivery Time :
35-40 Working Days
Size :
600*950*280mm
Payment Terms :
T/T
Communication :
CAN
Packaging Details :
Standard Packaging
Voltage range :
70~102.2V / 72.5~105.85V
Place of Origin :
China
Price :
price in negotiation
Battery Type :
li- iron phosphate（LFP）
Protection :
Overcurrent/ overvoltage/short circuit/ balanced, etc.
Nominal capacity :
300Ah
Brand Name :
THLB
MOQ :
1piece
Description
723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet

The battery system consists of two high-voltage battery strings, providing a nominal voltage of ±361.6 V and a nominal capacity of 300 Ah. It is suitable for dual-bus high-voltage DC UPS applications, offering long cycle life, high safety, and fast charge/discharge capability. The system can continuously support a 80 kVA UPS at full load for over 2.5 hours.

The complete high-voltage battery system (723.2 V / 300 Ah) adopts a dual-string architecture composed of two independent 361.6 V / 300 Ah battery assemblies. The corresponding bus voltages are:

Positive bus: +361.6 V

Negative bus: –361.6 V

New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet


New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
Customization Note: This battery is designed as a demonstration model for our customers. We specialize in producing fully customized battery solutions according to your specific requirements. Share your needs with us, and we'll handle the rest with trusted expertise.
Technical Specifications

Project parameters

Unit

Specification

Note

Cell

Battery Type

/

li- iron phosphate(LFP)

Nominal capacity

Ah

300

25℃/0.2C

Nominal voltage

V

3.2

Nominal energy

kWh

0.96

Voltage range

V

2.5~3.65

Module

Series-parallel connection

/

28S1P

29S1P

6 28S

2 29S

Nominal capacity

Ah

300

Nominal voltage

V

89.6

92.8

Nominal energy

kWh

26.88

27.84

Voltage range

V

70~102.2

72.5~105.85

Size(L*W*H)

mm

600*950*280

Weight

Kg

190

Battery system

Series-parallel connection

/

226S cell

Nominal capacity

Ah

300

Nominal voltage

V

723.2

±361.6V

neutral point N

Nominal energy

kWh

217

Voltage range

V

565~824.9

282.5~412.45

neutral point N

Max. Charge/Discharge Current

A

125

Communication Protocol

/

CAN

Protection

/

Overcurrent/

overvoltage/short circuit/ balanced, etc.

Monitoring

/

Display/PC

Cycle Life

times

4000

25℃,0.2C

100%DOD,80%EOL

Ingress Protection Grade

/

IP54

Charging temperature range

℃

0~55

Discharging temperature range

℃

-20~60

Weight

Kg

1550

8 modules+1 high voltage box

Packing & Delivery
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
Company Profile
New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet New Lithium Battery 723.2V 300Ah (216.96kWh) high-voltage modular energy-storage cabinet
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Do you provide after-sales service?
Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
What is your company's advantage?
We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Do you accept OEM/ODM?
Yes, it is available.
What information do you need to make a customized battery pack?
We need the following details: 1. Size of the battery pack in mm, 2. Capacity of the battery pack, 3. Voltage of the battery pack, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits you may need.
Are your batteries real capacity?
All of our battery cells are Grade A, 100% new with real capacity.
What kind of certificates do you have?
We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
What is your lead time for mass production?
Generally, about 25-30 days depending on different items after receiving down payment and confirmation about the samples.
