48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
Specifications
Brand Name :
THLB
Model Number :
3650
Place of Origin :
China
MOQ :
5 pieces
Price :
$539/pieces 5-99 pieces
Battery Size :
26650
Cycle Life :
1500 cycles
Cathode Materials :
LiFePO4
Application :
Consumer Electronics, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Weight :
20kg
Operating Temperature(℃) :
-20℃--60℃
Battery type :
LifePO4
Nominal Capacity :
100Ah/200Ah
Nominal Voltage :
48V/51.2V
Warranty :
3 Years
OEM/ODM :
Available
Brand :
New(grade A cell)
Size :
310*180*234mm
Communication :
RS485/CAN communication
Discharge cut-off voltage :
About 37.5V
Discharge current :
100A
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description
48V Nominal Voltage Off Grid Solar System 10KW Complete Home Energy System with 51.2V Cylindrical Lithium Ion Batteries

Ternary Battery Pack
Items
Parameters
Battery Model
IFR-48.0V100.0Ah
Nominal voltage
48V
Typical capacity
100Ah ± 3Ah (At 0.2C discharge rate)
Working current
50A
Max discharge current
100A
Cut-off voltage
about 37.5V
Voltage
54.0V±0.2V
Charge
0℃～+55℃
Discharge
-20℃～+60℃
Discharging Inner Resistance
≤22mΩ
Protection Function
Overcharge, over-discharge, over-current, temperature, short circuit and other protection functions
Communication mode
UART/RS485/RS232/CAN
Output mode
Barrier terminal (KT8-10-2P/Black/Pitch 21/Current 115A/M6 screw)
Weight
41±1kg
Size(L*W*H)
(482*460*177)±2mm
Cycle
≥1500,and the capacity retention rate is ≥80%.

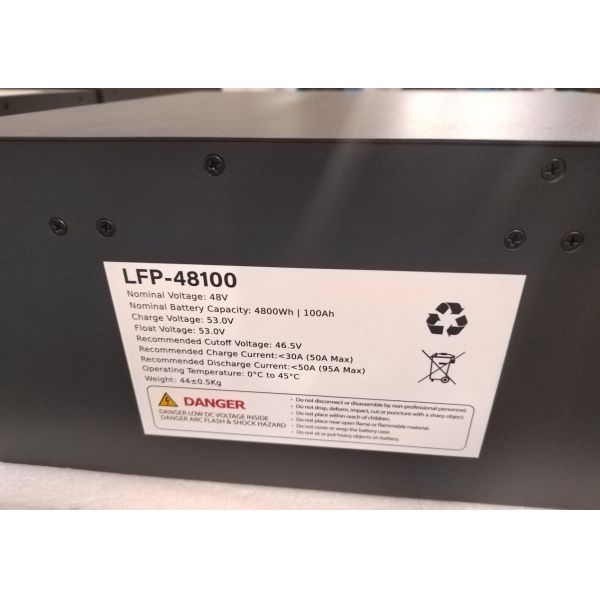

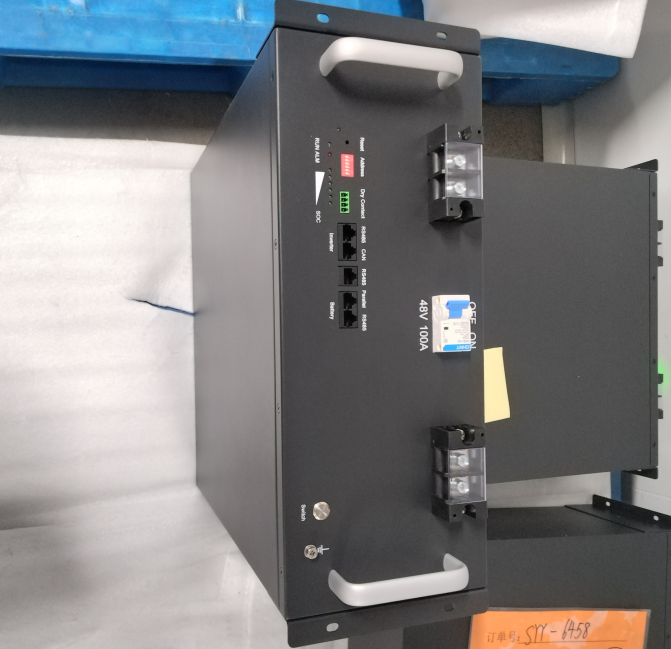

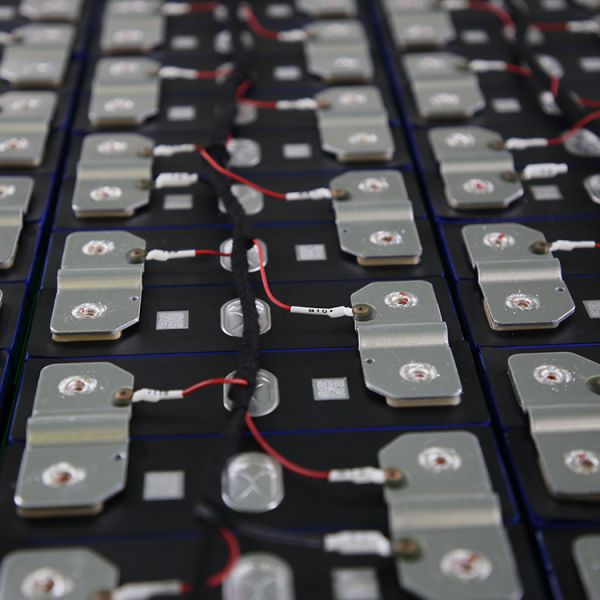

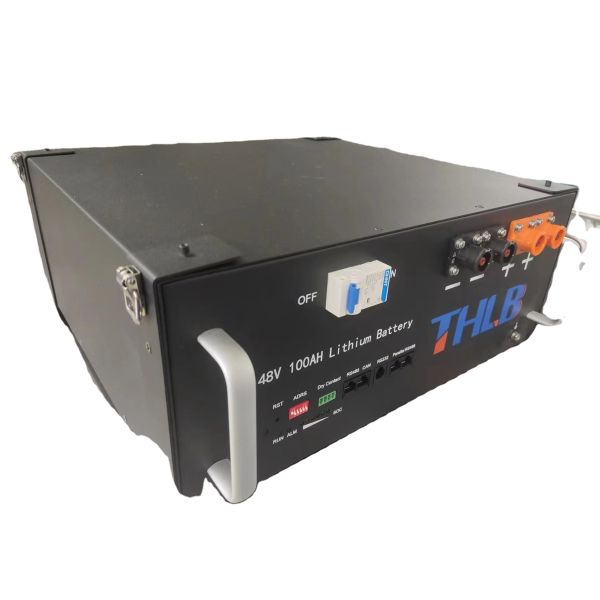

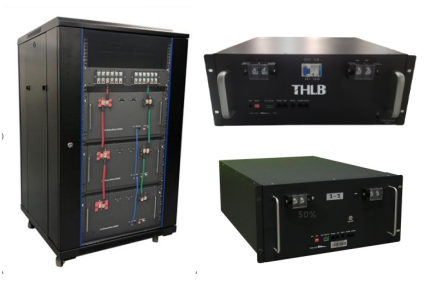

product
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles

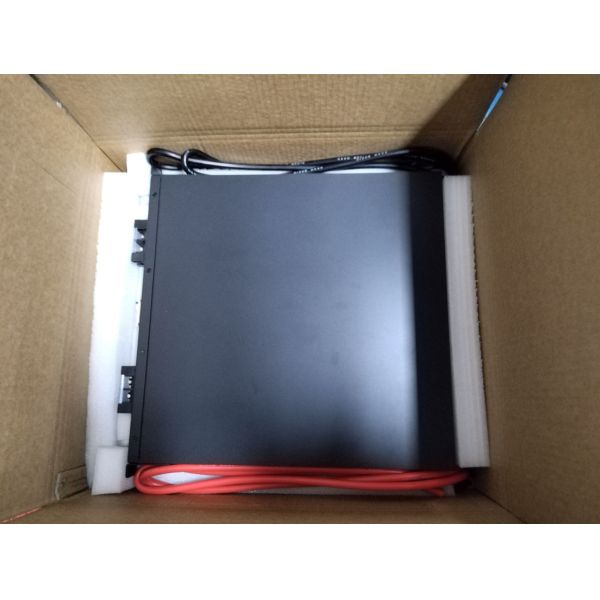

Packaging and delivery
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
Company Profile
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
48V Off Grid Solar Battery 10KW Energy Storage Lithium Battery 1500 Cycles
Shandong Tian Han New Energy Technology Co., Ltd is an ISO 9001:2015 certified manufacturer, specializing in R&D, manufacturing, sales, and service of lithium batteries, power lithium batteries, battery packs, and BMS etc.
Our batteries have passed CB, CE, UL, RoHS, REACH, BIS, UN38.3, MSDS etc certification to ensure quality.
Customization/OEM/ODM are available.
FAQ
Q1: Are you a factory or a trading company
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes,we can supply samples,the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service
Q5: Do you accept OEM/ODM?
A5: Yes,it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need.
Q7:Are you battery real capacity?
A7:All of our battery cells with Grade A,100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3.
Q9: What is your lead time for the mass production?
A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
