12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
64pcs per small box , box size is 39x17x12cm.
512pcs per carton, cartons size 39x35x48 cm, G.W. about 15kg
MOQ :
Negotiable
Price :
Negotiable
Type :
28 pins 128x64 COG LCD Display
Display Size :
128x64
Supplier Type :
Manufacturer
LCD Type :
128x64 COG LCD
Model name :
TSG12864-1186-FFDLWS-R
Interface :
MCU / SPI interface
Display type :
FSTN, positive, transflective
Outline Dimension :
77.4x52.4x6.5mm
Active Area :
66.52x33.24mm
Viewing Angle :
6 O'clock
Driver IC :
ST7565R
Operatiing Temperature :
-20 to 70℃
Storage Temperature :
-30 to 80℃
Description

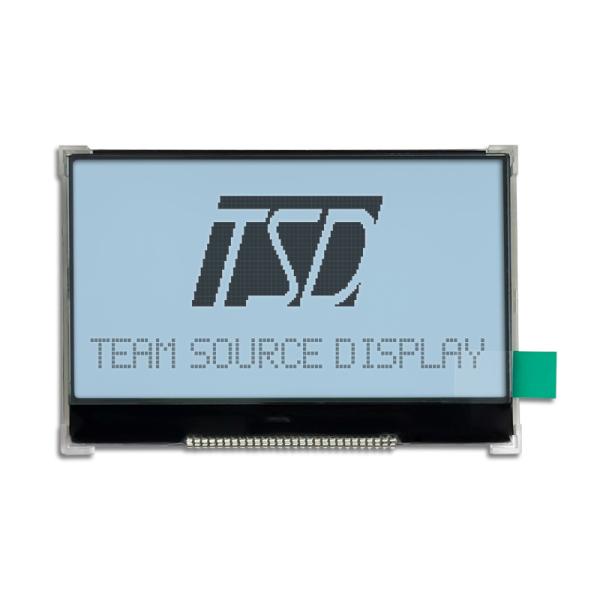

12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
FSTN 128x64 COG 28 pins 12864 mono graphic lcd module custom monochrome lcd display module
Display type
FSTN, positive, transflective
Part No.
TSG12864-1186-FFDLWS-R
Resolution
128xRGBx64 dots
Outline dimension
77.4x52.4x6.5mm
Active Area
66.52x33.24mm
Viewing angle
6 o'clock
Driver IC
ST7565R
Driving Method
1/65 duty, 1/9 bias
Operation temperature
-20℃ to +70℃
Storage temperature
-30℃ to +80℃
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
More detailed datasheet can be provided! Click here to contact us!
12864 Graphic LCD Display Module MCU Interface with 28 Metal pins
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
