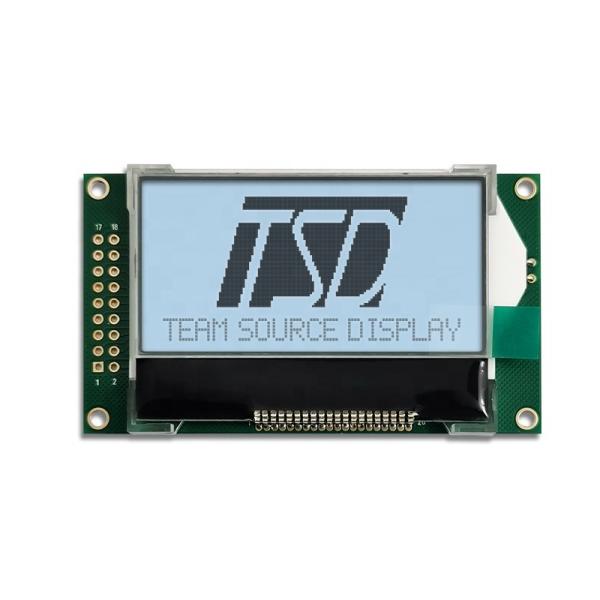

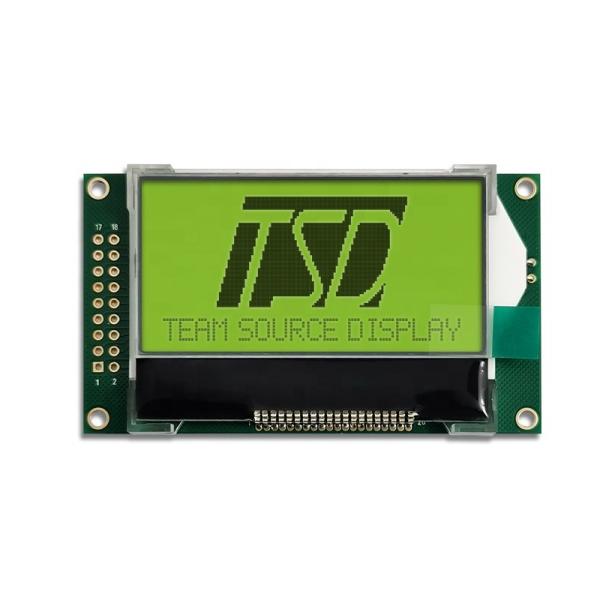

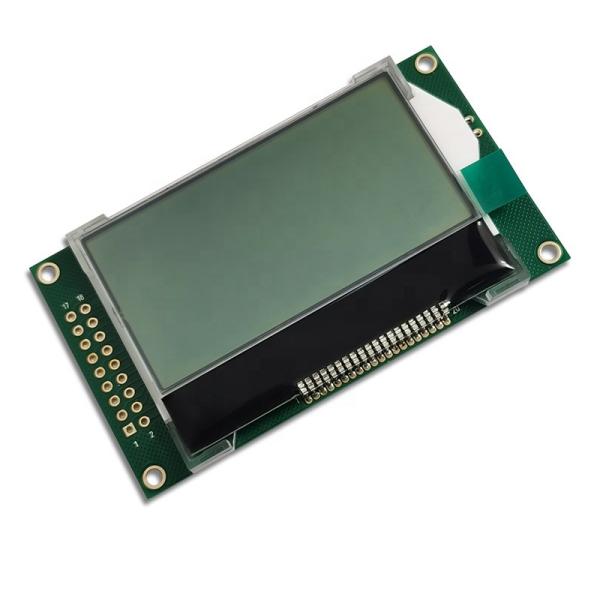

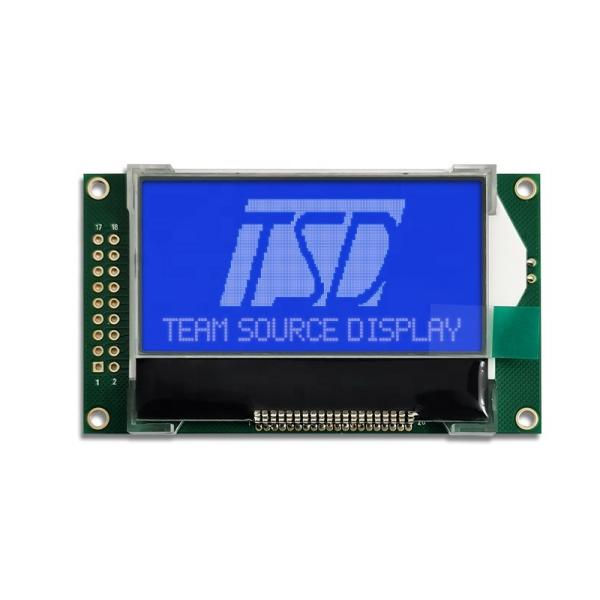

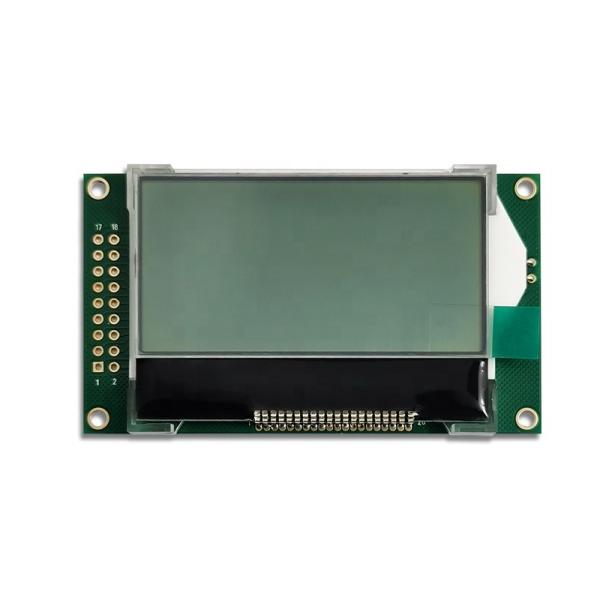

3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
64pcs per small box , box size is 39x17x12cm.
512pcs per carton, cartons size is 39x35x48cm, G.W. about 15kg
MOQ :
Negotiable
Price :
Negotiable
Type :
COG LCD
Display Size :
2.2inch
Supplier Type :
Manufacturer
Active Area :
46.05x23.01mm
Resolution :
128X64 dots
Viewing direction :
6 O'clock
Outline Dimension :
58.2x39x8.0mm
Driver IC :
ST7567S-G4
Backlight color :
White color
Driver condition :
1/65 duty, 1/9bias
LCD Type :
FSTN Positive Transflective
Dots pitch :
0.36(L)*0.36(W)
Interface Type :
6800/8080
Description
Transflective 3v 128x64 graphic lcd module 12864 cog lcd display fpc fstn mono lcd
About us
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Display type
FSTN, positive, transflective
Part No.

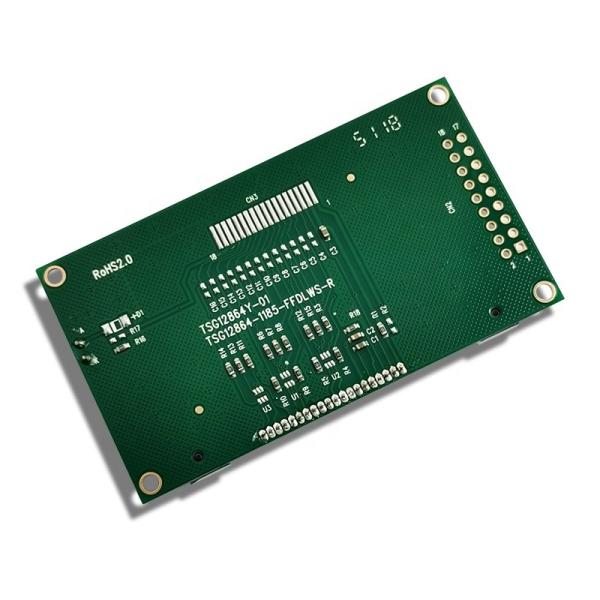

TSG12864-1185-FFDLWS-R
Resolution
128xRGBx64 dots
Outline dimension
58.2x39x8.0mm
Active Area
46.05x23mm
Viewing angle
6 o'clock
Driver IC
ST7567S
Driving Method
1/65 duty, 1/9 bias
Operation temperature
-20℃ to +70℃
Storage temperature
-30℃ to +80℃
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
More detailed datasheet can be provided! Click here to contact us!
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Production Process
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Application
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Certifications
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Exhibition & Certificate
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
Packing & Delivery
3v Lcd Graphic Display 128x64 6800 Interface ST7567S-G4 Driver
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
