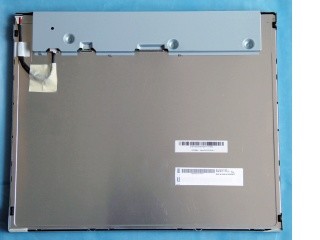

19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
19 Inch Hight Brightness Symmetry TFT-LCD G190EAN01.5 50K hours With LED Driver
Specifications
Brand Name :
AUO
Model Number :
G190EAN01.5
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
1PCS
Price :
70USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
Package Carton : 7 pcs / box 14 Kgs Carton Size (L×W×H):476×274×414 mm
Size :
19 Inch
Resolution :
1280*1024
Luminance :
700 cd/m² (Typ.)
View Direction :
Symmetry
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Support Color :
16.7M 72% NTSC
Interface Type :
LVDS (2 ch, 8-bit) 30 pins Connector
Contrast Ratio :
1000:1 (Typ.) (TM)
Light Source :
WLED , 50K hours , With LED Driver
Environment :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

1. Main Information:

AU Optronics Corp.G190EAN01.5 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are following: Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features, this model be applied to Industrial, Medical Imaging, Outdoor High Brightness etc.

2. AUO G190EAN01.5 Mechanical Details:

Pixel Features : Pixel Format 1280(RGB)×1024 [SXGA] Dot Pitch 0.098×0.294 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.294×0.294 mm (H×V) [86PPI]
Mechanical Size : Display Area 376.32×301.056 mm (H×V) Bezel Area 380.32×305.06 mm (H×V)
Outline Dim. 396×324 mm (H×V) Outline Depth 15.8 (Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 5:4 (H:V) Shape Style -
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Other Features : Weight 1.70±0.15Kgs Surface Antiglare

3. AUO G190EAN01.5 Optical Details:

Basic Information : Brightness 700 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 13/12 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.265; Wy:0.305 Color Numbers 16.7M (8-bit)
Color Temperature 10776K White Uniformity 1.25 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 96% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance Outdoor Visibility Sunlight Readable Transmittance -

4. AUO G190EAN01.5 Backlight Details:

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 50K(Min.) (Hours)
Replacement - Amount - Position Edge light type (Bottom side)
Interface Features Type Connector Position - Lamp Driver With LED Driver
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
STM MS24019R 1.25 mm 9 pins 1 pcs
Driver Electrical : Voltage Input 12.0±1.2V Current Input -
Consumption 23.0/25.2W (Typ./Max.)

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
