6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface
Specifications
Brand Name :
ESEN
Model Number :
TX070-30RB-A1
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
No MOQ
Price :
can be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
7~14 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Size :
7.0 inch
Resolution :
280(horizontal)*1424(Vertical)
Interface :
MIPI
Connect type :
Connector
Color Depth :
16.7M
Technology type :
a-Si
Pixel pitch (mm) :
0.12x0.12 0.12x0.12
Pixel Configuration :
R.G.B. Vertical Stripe
Display Mode :
Normally Black
Viewing Direction :
ALL
Gray Scale Inversion Direction :
ALL
LCM (W x H x D) (mm) :
38.20*181.47*3.5
Active Area(mm) :
33.6 x 170.88
With /Without TSP :
Without TSP
Weight (g) :
TBD
LED Numbers :
8 LED
Customization :
FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Description

7.0 Inch 6.9 Inch TFT LCD Display with CTP 280x1424 resolution MIPI/RGB interface view angle is all o'clock

Type: TFT

Supplier Type: Manufacture

Place of Origin: GUA

Brand Name: LCD MALL

Resolution: 280x1424

LCD TYPE: WXGA

Driver IC: T-CON

Interface: MIPI(LCM)+IIC(CTP)

Backlight LEDs: 8 chip white LED

Luminance: 400nits

Viewing Angle: ALL/IPS

OD Size (mm): 46.2* 199 * 4.8

AA Size (mm): 33.6 * 170.88

PIN number: 40PIN

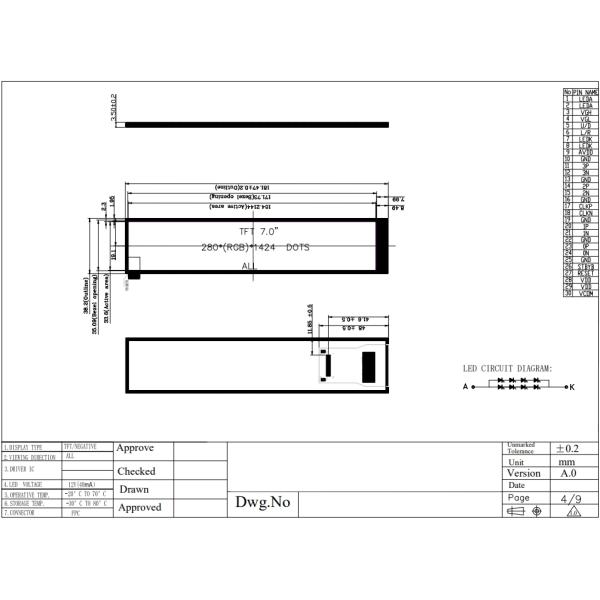

Mechanical Drawing

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

Input/Output Terminals

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

6.9 Inch 7.0 Inch TFT LCD Module With CTP 280x1424 MIPI RGB Interface

FAQ

1. Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

2. Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, ISO9001 Certificate; RoHS Environmental Certification;
