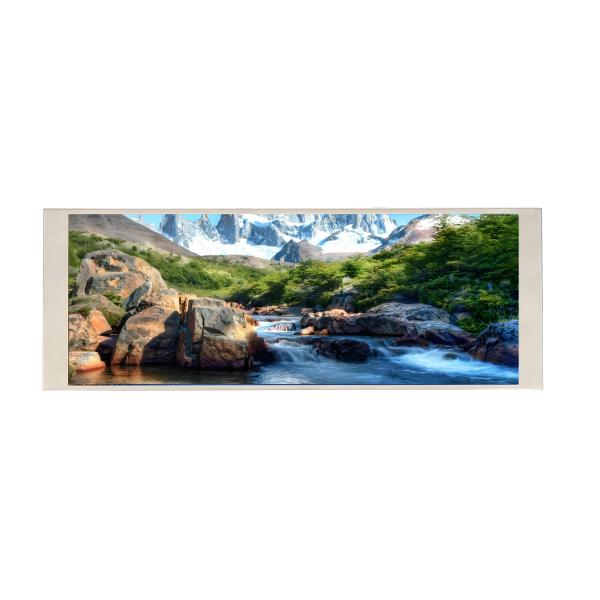

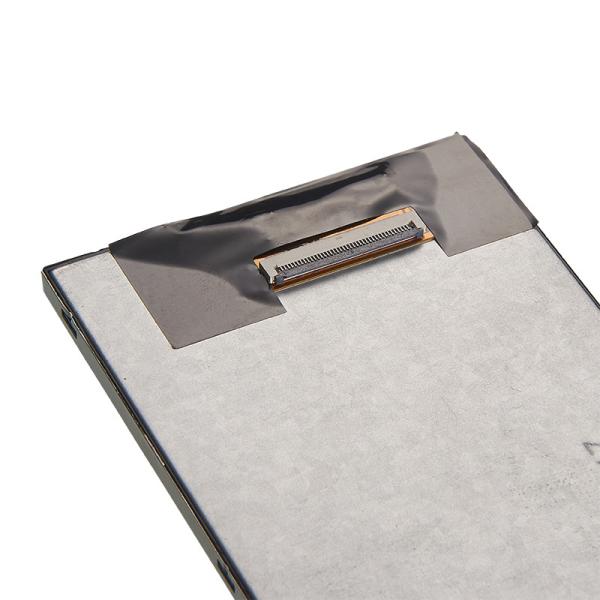

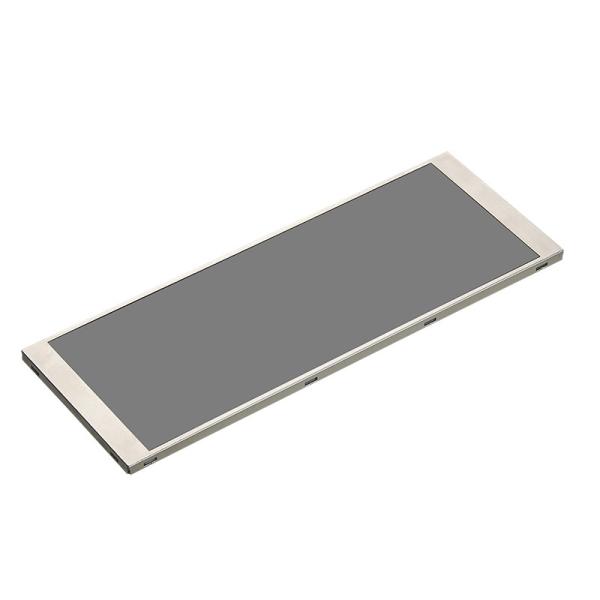

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen
Specifications
Brand Name :
ESEN
Model Number :
T068601G01-24M
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
No MOQ
Price :
can be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
6~14 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
LCD Size :
6.86inch
Panel Type :
IPS
Resolution :
480xRGBx1280
Display Mode :
Normally Black
Number of Colors :
16.7M
Viewing Direction :
ALL
NTSC :
50%Typ
Contrast Ratio :
1500Typ
Luminance :
300cd/m2
Module Size :
66.41(H)x177.19(V)x4.45(D）mm
Panel Active Area :
60.22*160.59mm
Pixel Pitch :
125.4(H) x 125.4(V)mm
Pixel Arrangement :
RGB Vertical stripe
Driver IC :
FL7707N
Light Source :
12 LEDS light
Interface :
MIPI
Operating Temperature :
-20~+70℃
Storage Temperature :
-30~+80℃
Custom Service :
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Description

6.86 inch bar display with 480x1280 TFT LCD Display Without or with Touch Screen LCD Backlight MIPI Interface

Notes:
(1) Display Type : 6.86" TFT+TP(can customize)
(2) Viewing Direction : 80/80/80/80
(3) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6)) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

WIDELY COMPATIBILITY
The 6.86 inch tft lcd module can be widelyused in household appliances such as washing machine,refrigerator, audio,oven,ventilator and so on.

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

Pin Assignments

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

Electrical Specification

6.86 Inch Bar Display With 480x1280 TFT LCD Display Without Or With Touch Screen

6. FAQ

Q1: Are you manufacturer ?
A: Yes, we are manufacturer.


Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.


Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.


Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.


Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.


Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
