LCD 8 Inch TFT Display 1024×768 LVDS Interface TFT Color Screen TFT LCD Module

Specifications

Brand Name :

ESEN

Model Number :

T080IWX40I3508

Certification :

ISO9001/ISO14001

Place of Origin :

Shenzhen China

MOQ :

No MOQ

Price :

can be negotiated

Payment Terms :

L/C,T/T

Supply Ability :

300K/mth

Delivery Time :

6~14 working days

Packaging Details :

Cartons, Capboard, EPE, Blister Tray.

LCD Type :

8 inch

Resolution :

1024(horizontal)*768(Vertical)

Glass Maker :

Innolux

Interface :

40PIN LVDS

Connect type :

Connector

Color Depth :

16.7M

Technology type :

a-Si

Pixel pitch(mm) :

0.1583*0.1583

Pixel Configuration :

R.G.B. Stripe

Display Mode :

Normally Black

Viewing Direction :

ALL

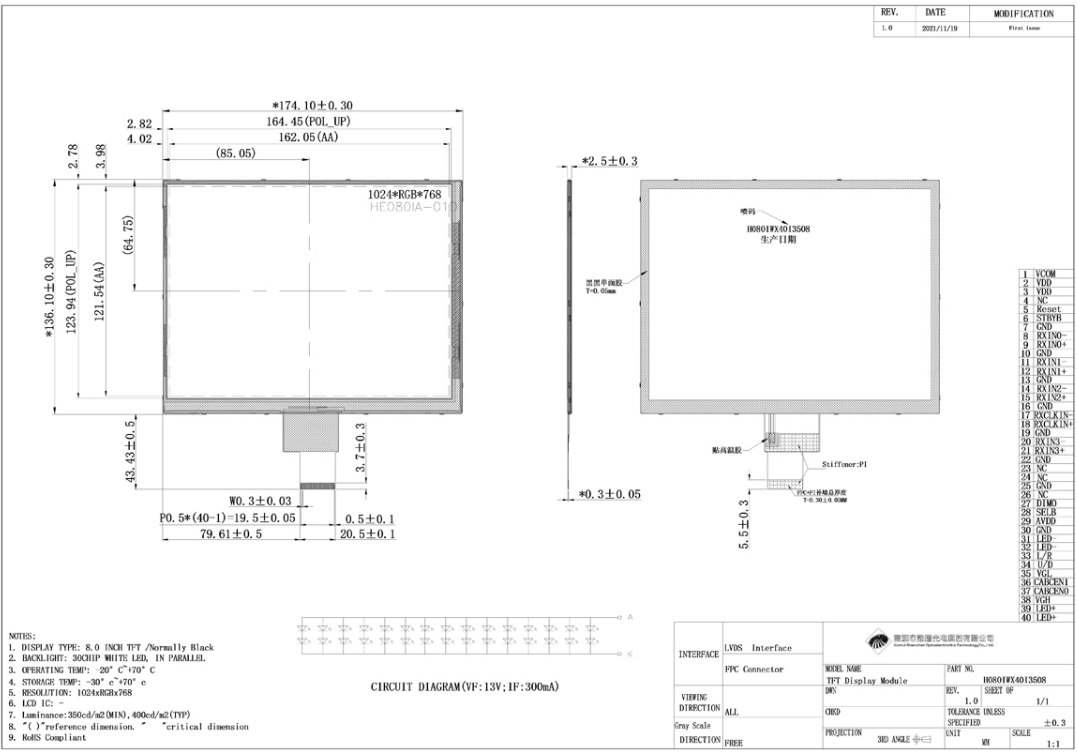

LCM (Wx H x D)(mm) :

174*136*2.5

Active Area(mm) :

162.05*121.54

LED Numbers :

30LEDS

luminance :

400cd/m2

Storage temperature :

-30--+80(℃)

Operating temperature :

-20--+70(℃)

Custom Service :

FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Description

8 inch TFT LCD screen 1024×768 LVDS interface TFT color screen TFT-LCD LCD module

Dimensions, interfaces and other specifications can be customized, power capacity touch, resistance touch. If you have other specifications please contact us, we will be happy to serve you.

No	Symbol	Description
1	VCOM	Common voltage
2	VDD	3.3V Power
3	VDD	3.3V Power
4	NC	Not connect
5	RESET	Global reset pin Active low enter reset state Suggest to connecting with an RC reset Normally pull high(R=100K,C=1UF)
6	STBYB	Standby mode, normally pull high STBYB=”1”,timing control ,source driver will turn off, all output are high-Z
7	GND	System Ground
8	RXIN0-	Negative LVDS differential data input
9	RXIN0+	Positive LVDS differential data input
10	GND	System Ground
11	RXIN1-	Negative LVDS differential data input
12	RXIN1+	Positive LVDS differential data input
13	GND	System Ground
14	RXIN2-	Negative LVDS differential data input
15	RXIN12+	Positive LVDS differential data input
16	GND	System Ground
17	RXCLK-	Negative LVDS differential clock input
18	RXCLK+	Positive LVDS differential clock input
19	GND	System Ground
20	RXIN3-	Negative LVDS differential data input
21	RXIN3+	Positive LVDS differential data input
