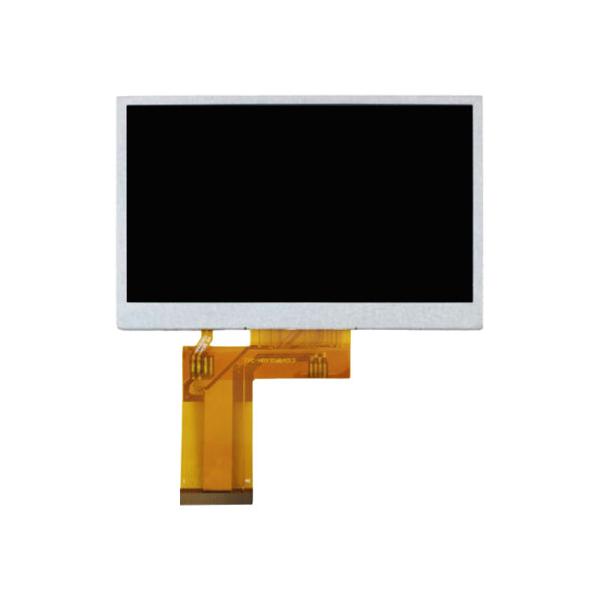

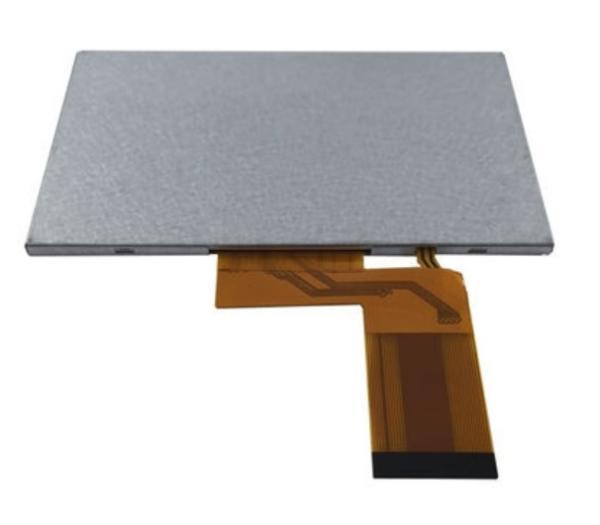

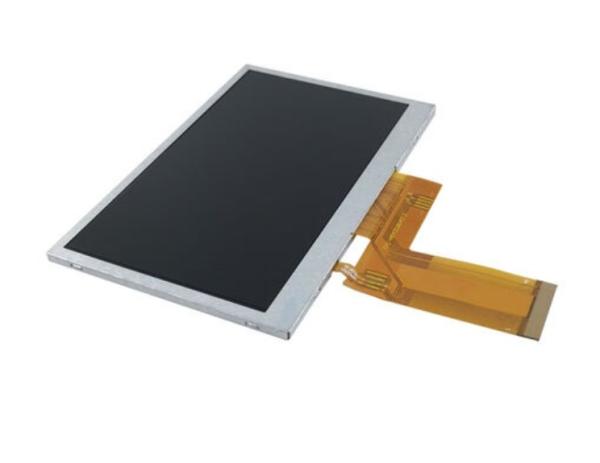

4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive
Specifications
Brand Name :
ESEN
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
3-4 weeks
Packaging Details :
All the products are packed in right way
Model Number :
T043WQ16
LCD Size :
4.3 inch
Technology type :
a-Si
lC :
ST7282A
Display Format :
480(RGB)x 272
Active Area(mm) :
95.04 x 53.856
LCM (Wx H x D)(mm) :
105.42*67.07*2.9
Intrface :
24-bit RGB
Color Depth :
16.7M
Display Spec :
0.198 x 0.198
Display Mode :
Normally White
Viewing Direction :
12 0'clock
Gray Viewing Direction :
6 O'clock
With /Without TSP :
Without TSP
LED Numbers :
10 LEDS
Working temperature :
-20°C~70°C
Storage temperature :
-30°C~80°C
Description

4.3inch 480x272 24-bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive

Mechanical Drawing

4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive


Absolute Maximum Ratings

Item Symbol MIN MAX Unit Remark
Supply Voltage VDD -0.3 4.5 V
Input Signal Voltage Vin -0.3 VDD+0.3 V
Logic Output Voltage VOUT -0.3 VDD+0.3 V
Operating Temperature TOPR -20 70 ℃
Storage Temperature TSTG -30 80 ℃

Electrical Characteristics

1.Operating conditions:

Parameter Symbol MIN TYP MAX Unit Remark
Power Voltage Vcc 3.0 3.3 3.6 V
Digital Operation Current Icc
5
mA
Gate On Power VCOMH 9 15 16 V
Gate Off Power VGH -11 -10 -7 V
Vcom High Voltage VcomH 3.26 - 5.8 V Note1
Vcom low Voltage VcomL -2 - -0.2 V Note1

2 Driving Backlight

Item Symbol MIN TYP MAX Unit Remark
LED current IF - 20 - mA Note 1Note 2,3
Power Consumption



mW
LED Voltage VF - 27
V
LED Life Time WBL 50000 - - Hr

Note 1 : There are 1 Groups LED

Note 2 : Ta = 25℃

Note 3 : Brightness to be decreased to 50% of the initial value
