Specifications
Brand Name :
ESEN
Model Number :
TS050YMM-J40-A2
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
No MOQ
Price :
can be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
6~14 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
LCD size :
5.0 inch
LCD IC :
HX8399C
Operating Temperature :
-20℃~ +60℃
Storage Temperature :
-30℃~ +70℃
Active Area :
127.008 (H) ×127.008 (V)
Number of Pixels :
1080(H) RGB × 1080(V)
Pixel Pitch :
0.1176 (H) ×0.1176 (V)
Pixel Arrangement :
1pixel 2domain
Display Colors :
16.7 M
Color Gamut :
65%(Min.) 70%(typ.)
Display Mode :
Normally Black, Transmissive mode
Dimensional Outline :
136.531x132.208x1.98mm
Viewing Direction (Human Eye) :
U/D/L/R free viewing direction
Custom Service :
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Description

5.0-inch Tape enclosure FHD 1080P TFT LCD module with high brightness 400cd

TS050YMM-J40-A2 is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 5.0 inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M colors.

5'' Tape Enclosure FHD 1080P Customized LCD Panel With High Brightness 400cd

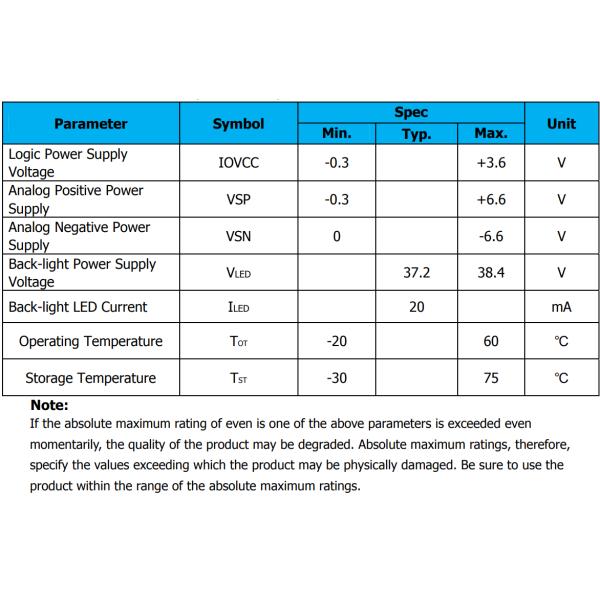

ABSOLUTE MAXIMUM RATINGS

5'' Tape Enclosure FHD 1080P Customized LCD Panel With High Brightness 400cd

ELECTRICAL SPECIFICATIONS

5'' Tape Enclosure FHD 1080P Customized LCD Panel With High Brightness 400cd

FAQ

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:The version of product specification is English.
