Specifications
Brand Name :
ESEN
Model Number :
T035SHV40I3505-T
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
500 PCS
Price :
can be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
7~10 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Size :
3.5inch
Resolution :
320(horizontal)*480(Vertical)
Interface :
MCU interface
Connect type :
connector
Color Depth :
262K
Technology type :
a-Si
Pixel pitch :
0.153x 0.153(mm)
Pixel Configuration :
R.G.B. Vertical Stripe
Display Mode :
Normally Black
Driver IC :
ILI9488
Surface Treatment :
HC
Viewing Direction :
ALL
LCM :
54.94*85.5*3.7(mm)
Active Area :
48.96 x 73.44(mm)
LED Numbers :
6 LEDs
Custom Service :
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board，different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.
Description
3.5-inch 340x420 Driver IC ILI9488 Touch Panel Standard TFT LCD Display ALL
This is our custom 3.5-inch touch panel. Screen: 340x480 with clear and bright images, easy to connect and adapt to systems with USB and MCU interface interfaces. TP (Touch plus Panel) technology can be used from different and sensitive touch ways. This touch screen is a reliable, user-friendly solution for your device, whether you use it for DIY projects, embedded systems, or even small industrial applications, adding convenience and functionality to your device. Perfect size for space-limited design without compromising performance.
3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

Electrical Characteristics

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

Note 1: Each LED : IF =20 mA, VF =3.2V.

Note 2: Optical performance should be evaluated at Ta=25℃ only.

Note 3: If LED is driven by high current, high ambient temperature & humidity condition. The life time of LED will be reduced.Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

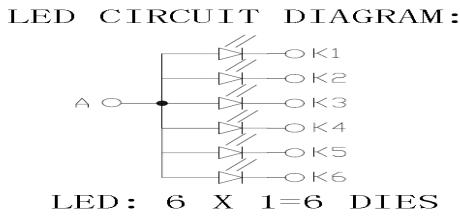

Figure : LED connection of backlight

Block Diagram

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT

customizable

3.5'' 340x420 Customized LCD Panel Driver IC ILI9488 Standard TFT
