Specifications
Brand Name :
ESEN
Model Number :
T112KTBIG41
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000/PCS
Price :
Please enquiry
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
2-4 weeks
Packaging Details :
All products are packaged in an appropriate and correct manner.
LCD Size :
1.12inch(Diagonal)
Display Mode :
Normally black
Resolution :
50(H)RGB x 160(V)
Dot pitch :
0.2184 (H) x 0.2184(V) um
Active area :
8.49(H) x 27.17 (V) mm
Module size :
10.8(H) x 32.18(V) x2.11(D) mm
Color arrangement :
RGB Vtertical stripe
Interface :
SPI4 LINE
Drive IC :
GC9D01
Luminance(cd/m2) :
300 (TYP)
Viewing Direction :
All View
Backlight :
1 White LED
Operating Temp. :
-20℃~ + 70℃
Storage Temp. :
-30℃~+ 80℃
Weight :
1.1g
Description

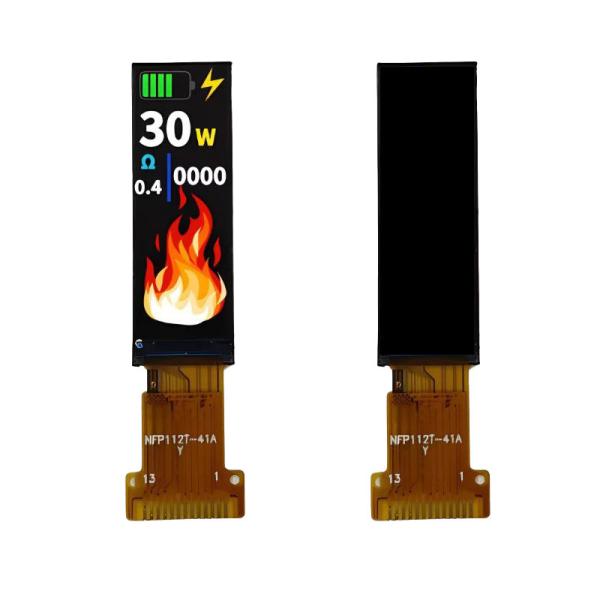

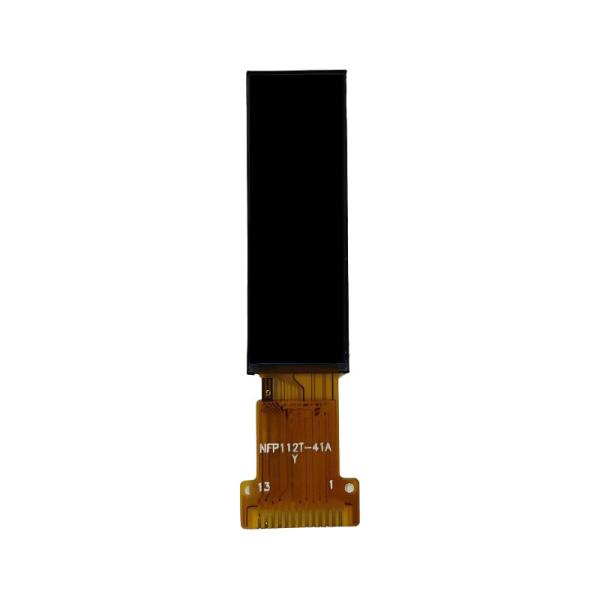

1.12 Inch Full-color ALL Tft LCD 300cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin

Model Number T0112KTBIG41
origin China
Small Orders Accepted

Key Specifications/ Special Features:

1. General Description

Description

T112KTBIG41 is a 50RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

2. Mechanical Drawing

1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI  Welding 13 Pin

3. Pin Definition

FPC Connector is used for the module electronics interface.

Note:

NO. Symbol Description
1 NC No Connect.
2 NC No Connect.
3 SDA SPI interface input/outpur pin.
4 SCL This signal will reset the device and it must be applied to properly initialize
the chip.Signal is active low.
5 RS Display data/command selection pin in 4-line serial interface.
6 RESET This signal will reset the device,Signal is active low.
7 CS Chip selection pin,Low enable,High disable.
8 GND Power Ground
9 NC No Connect.
10 VDD Power Supply for Analog
11 LEDK LED Canthode
12 LEDA LED Anode
13 GND Power Ground

4.Team advantages:

A: Fast response speed, supporting 24-hour standby service.

B: Provide local sales support in 10 countries (including those in Europe, North America, Asia, Australia, and Brazil).

C: Having a professional team with extensive experience in TFT LCD display design, manufacturing, and quality control.

D: Flexible business support, suitable for projects of all batch sizes (small, medium, and large).
