1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
Specifications
Brand Name :
ESEN
Model Number :
T171-2832ASWWG01-C18
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
3-4 weeks
Packaging Details :
All the products are packed in right way
Driver lC :
SSD1312
FPC Number :
NFP1312-41
Interface :
314-wire SPl, PC
Panel size :
50.5*15.75*2mm
Display size :
43.5*12.14mm
Pin count :
Connector for 18-pin interface
Viewpoint orientation :
All
Working temperature :
-40°c~70°c
Resolution :
128*32mm
Description

1.71 Inch OLED Monochrome Display With IC SSD1312 128×32 Resolution Serial Peripheral Interface SPI 18pin Interface Full View Display

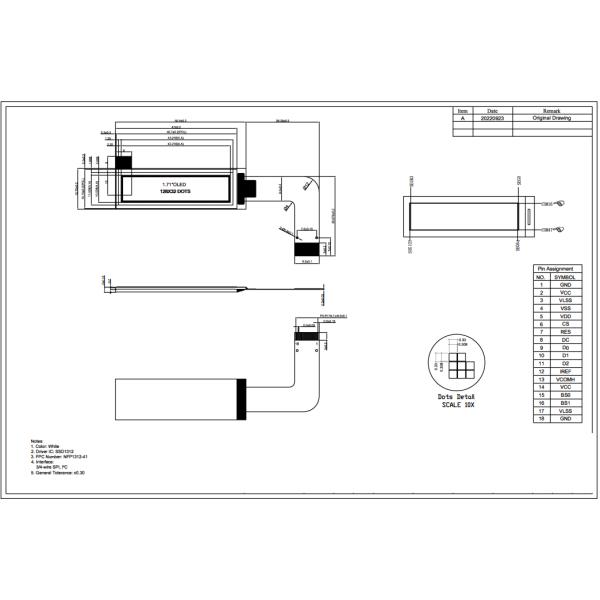

Mechanical Drawing:

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface

FAQ:

Q:If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

Q:What size LCD display can you provide?

A::0.42 inch to 32 inch TFT LCD display we can provide.

Announcements :

1.Do not attempt to disassemble or process the LCD module.

2.Do not make extra holes on the printed circuit board, modify its shape or change the positions of components to be attached.

3.Except for soldering the interface, do not make any alterations or modifications with a soldering iron; Ensure welding temperature at 320 ° C to 350 ° C, the welding time- 13 - control within the 10 s, welding note don't stay too long in the same place to avoid scald FPC.

4. Other matters in not clear before use, please contact our staff to guide.
