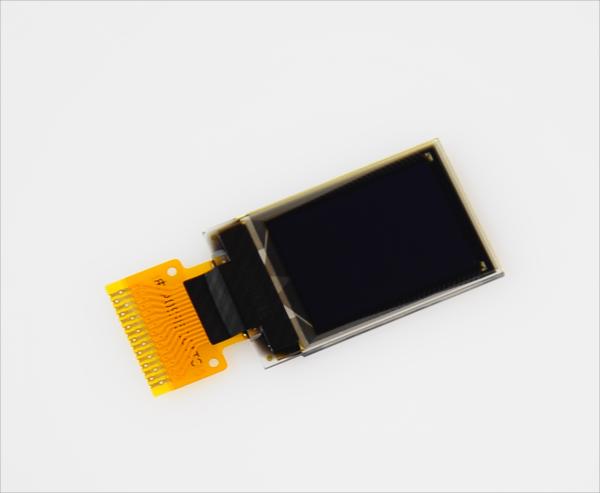

0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD
0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD
0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD
0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD
Specifications
Brand Name :
ESEN
Model Number :
N071-4864TSWEG01-H15
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
2-4 weeks
Packaging Details :
All the products are packed in right way
Size :
0.71 inch
Display Mode: :
Passive Matrix
Display Color :
Monochrome (White)
Drive Duty :
1/64 Duty
Outline Drawing :
According to the annexed outline drawing
Number of Pixels :
48 ×64
Panel Size :
13.9 ×22 ×1.2(mm)
Active Area :
10.54 ×14.7 (mm)
Pixel Pitch :
0.20 ×0.21 (mm)
Pixel Size :
0.22 ×0.23 (mm)
Description


Key Technology Integration Highlights:

Environmental Adaptability:
- Full product series support industrial-grade temperature range (-40°C to 85°C)
- Passed 100,000 bending cycles test

Energy Efficiency:
- Zero power consumption on black screens
- 30% lower overall power consumption compared to LCD, supporting green energy design

0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD

Mechanical Drawing

0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD

0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD

Pin Definition

0.71'' OLED Monochrome Display Environmental Adaptability Energy Efficiency OLED LCD


FAQ


Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.


Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.


Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.


Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.


Q:The product specification is in Chinese or English?
A:The version of product specification is English.
