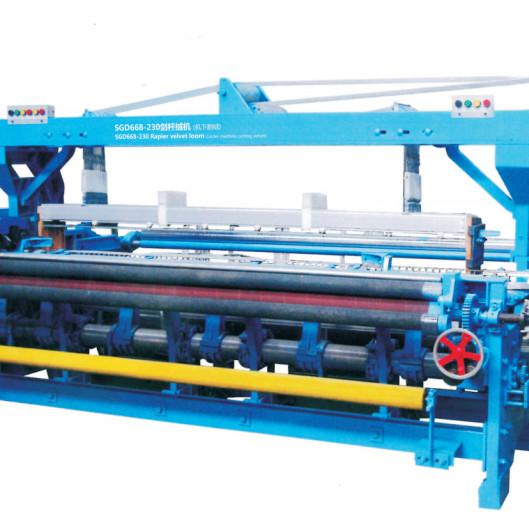

Suitable range: chemical fiber, cotton. Including 9000 and 5000 series of velvet fabric products. Model:SGD668-230 Rapier velvet loom (under machine cutting velvet) Machine style: front and rear fuselage separate frame.The attached beam of the front fuselage can install the dobby, and the rear fuselage can place the Reed width: 150cm-230cm
Yarn range: 580D-10D cotton, 10D-1500 D filament Weft selection device: six color electronic color selection Weft insertion device: six link weft insertion Beating up device: short hand four link beating up. Opening device: GT2000-Ⅱ fully enclosed automatic oiling dobby Let off device: servo let off and mechanical let off (optional) ¢450mm, Feeding device: servo feeding and mechanical feeding ¢800mm. (optional) 1.5kw*3, Coiler device: servo coiler and mechanical coiler :2.6kw-3.0kw. (optional) beam diameter: bottom warp beam ¢ 450mm, velvet warp beam ¢ 800mm Main motor: 2.2kW, single-phase servo motor: 1.5kw*3, Actual power consumption: 2.6kw-3.0k
