Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
steel pallet
Supply Ability :
1000 Set/Sets per Month
Price :
$7,800.00/sets 1-4 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Applicable Industries :
Manufacturing Plant, yarn plant
Showroom Location :
India, Chile
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2021
Warranty of core components :
1 Year
Core Components :
PLC, Pump
Condition :
New
Type :
Rapier Loom
Application :
making velvet fabric products
Production Capacity :
150cm-230cm
Dimension(L*W*H) :
W600cm*H390cm*D220cm
Weight :
1000 KG
Power :
AC 380V / 50Hz
Warranty :
1 Year
Key Selling Points :
High Productivity
Yarn range :
580D-10D cotton, 10D-1500 D filament
Weft selection device :
six color electronic color selection
Reed width :
150cm-230cm
Opening device :
GT2000-2 fully enclosed automatic oiling dobby
Let off device :
servo let off and mechanical let off
Main motor :
2.2KW
Coiler device :
servo coiler and mechanical coiler
bottom warp beam :
phi 450mm
velvet warp beam :
phi 800mm
Port :
shanghai
Description

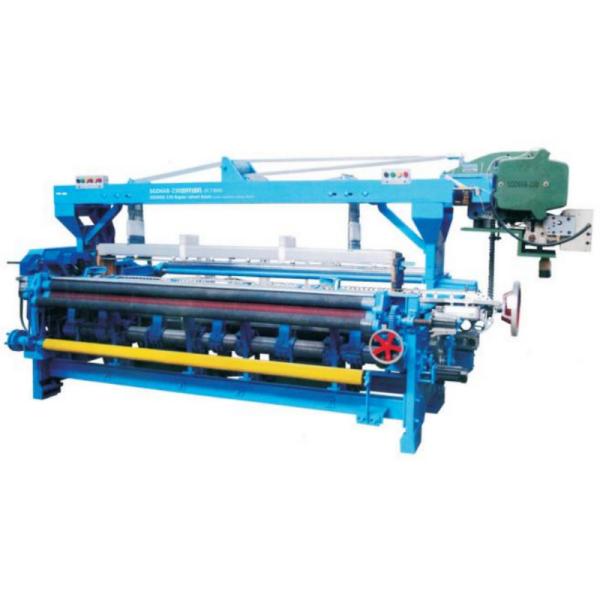

ZYTT brand rapier velvet loom for velvet fabric products 150o-2300mm reed width
Brief Introduction
Suitable range: chemical fiber, cotton. Including 9000 and 5000 series of velvet fabric products.
Model:ZY-SGD668-230 Rapier velvet loom (under machine cutting velvet)
Machine Specification & Advantages
Reed width
150cm-230cm
Yarn range
580D-10D cotton, 10D-1500 D filament
Weft selection device
six color electronic color selection
Weft insertion device
six link weft insertion
Opening device
fully enclosed automatic oiling dobby
power
2.2KW
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed

Advantage 1

The machine has the advantages of compact structure, convenient operation, easy fabric replacement and adjustment; High degree of automation and wide weaving range;
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed

Advantage 2

Microcomputer control system is adopted, which has the functions of automatic weft finding, fault detection, automatic weft selection, automatic stop of warp breaking, automatic stop of weft breaking, liquid crystal display, etc.
Machine Application
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Company Profile
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Our Partner
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
Certificates & Exhibitions
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed

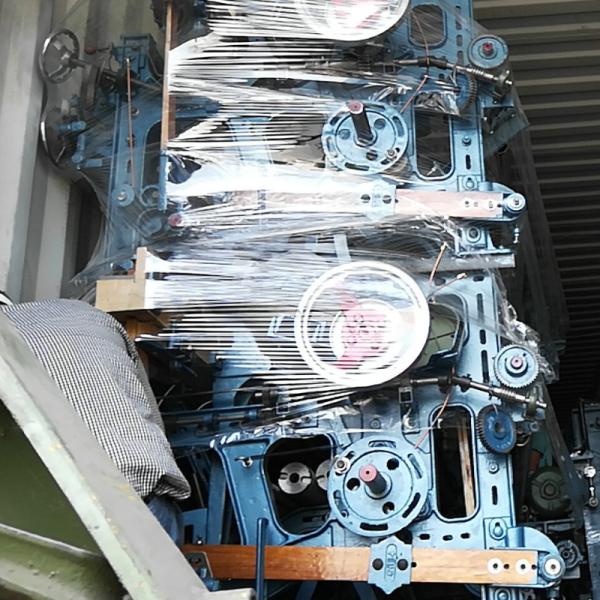

Packaging & Logistics
Rapier Velvet Loom Textile Weaving Machinery Fabric 1500mm 2300mm Reed
