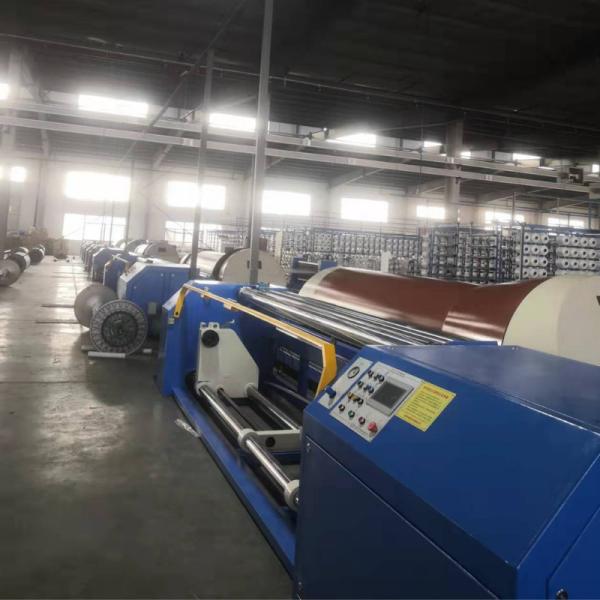

Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Smart High Speed Sectional Warping Machine 800m Min
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
steel pallet
Supply Ability :
100 Set/Sets per Month
Price :
$30,000.00/sets 1-4 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Model Number :
163C
Showroom Location :
Italy, Brazil, India, Spain
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Pump
Condition :
New
Type :
sectional warping machine
Production Capacity :
800m/min warping speed
Warranty :
1 Year
Key Selling Points :
Automatic
Working width :
2300-4800mm
warping speed :
800m/min
beam speed :
200m/min
Deviation of stripe positioning :
≤ 0.1(mm)
Input voltage :
3x380V(±10%)
Capacity :
40KVA 50KVA
warping motor power :
11KW 15KW
Port :
shanghai shenzhen qingdao
Description
Smart High Speed Sectional Warping Machine
Brief Introduction
This machine is suitable for sectional warping all types of yarns,including worsted yarn, chemical fibre filament and silk. It supplies rapier,projectile,water-jet and air-jet weaving machine with high quality weaver’s beams. lt is excellent in weaving top-grade fabrics or special-type fabrics.
As a professional textile machinery supplier, we have 12 years of experience in trading warping machines. We can not only provide simple section warping machines, but also provide automatic warping machines and spandex warping machines. This high-speed and high-precision warping machine can also be customized according to customer needs.
Machine Specification & Advantages
working width
4600mm
beam flange diameter
1000mm
warping speed
800m/min
breaking distance
≤3(m)(500m/min)
beaming tension

≤8000N
power
22KW
input voltage
3x380V
Smart High Speed Sectional Warping Machine 800m Min

Features 1

1. Warping and beaming is driven by A.C.frequency converter so that constant yarn speed and tension is gained even at high speed. 2. The special machinery-electricity-gas integrated oil pressure equipment can create oil pressure and drive the clamping breaker to realize the controlling of warp break, The proportioning valve contro the damping mode of the outer steel node and realize the automatic control of the beam tension.
Smart High Speed Sectional Warping Machine 800m Min

Feature 2

3. Warp servo transmission uses the ball bearing lead screw structure and has the characteristic of rapid response, high precision. Bar position setting and initial, potential adjustment will complete automatically once button pressing. 4. The forward and backward movement of warping table is controlled by AC digital servo controller and transmission of ball screw rod. The system is also equipped with press roller and several kinds of sensors. 5. The warping table will be backed for the same distance in the warping procedure.
Company Profile
Smart High Speed Sectional Warping Machine 800m Min
Our Partner
Smart High Speed Sectional Warping Machine 800m Min
Certificates & Exhibitions
Smart High Speed Sectional Warping Machine 800m Min
Packaging & Logistics
Smart High Speed Sectional Warping Machine 800m Min
