Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Ribbon Textile Warping Machine 200m/min Beam size 267x405mm
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
Wooden package
Supply Ability :
100 Set/Sets per Month
Price :
$110,000.00/sets 1-4 sets
Certification :
CE
Delivery Time :
30 days
MOQ :
1 set
Model Number :
328
Payment Terms :
D/A, L/C, D/A, D/P, T/T
Applicable Industries :
Manufacturing Plant
Showroom Location :
United States, Italy, Viet Nam, Pakistan, India, Uzbekistan, Iron
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Inverter, Touch Screen, Bearings, Terminal Components
Condition :
New
Automatic Grade :
Automatic
Voltage :
380V
Warranty :
1 Year
Port :
SHANGHAI
Description

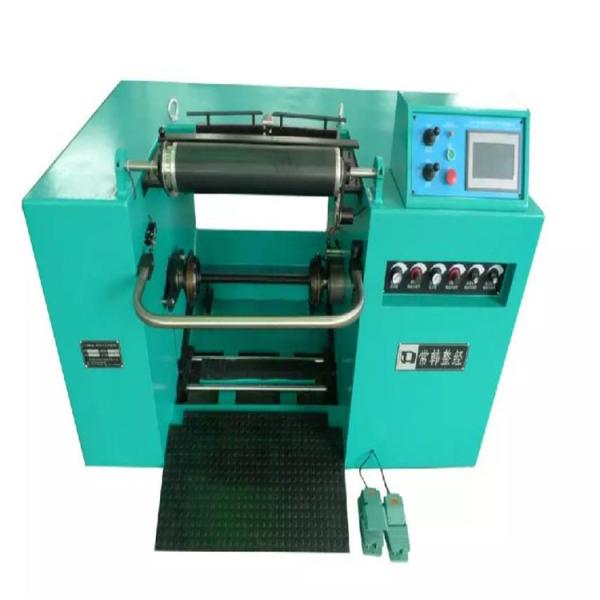

ZYTT-328 Ribbon Warping Machine
Product Features
1.The machine adopts advanced servo driving controlling system to drive big ball bearing pole to arrange the yarn accurately.
2.New man-machine interface can manage the techniques data operate easily.
3.The machine can record the information of single and double layers and control synchronically.
4.The machine has protection function when power-failure and it can break quickly.
5.Horizontal moving range of the warping yarn becomes less automatically when the diameter of beam becomes more. It forms a taper and looks beautiful.
Machine Specification & Advantages
Beam size 267xФ405(mm) 255xФ455(mm) (only for narrow Ribbon weaving)
Maximum creel linearspeed 200m/min.
.Pre-drafting value 10~200%; Final drafting value:3~100%

Control pneumatically and good stable, short distance for brake and good synchronization.
The quantity of cones is 84(or according to the buyer's requirements).
Beam, front roller, creel yarn stop distance between frame error≤ ±5%.
