25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
wooden cases package
Supply Ability :
100 Set/Sets per Month
Price :
$110,000.00/sets 1-4 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Model Number :
30/42 40/42
Applicable Industries :
Manufacturing Plant
Showroom Location :
India, Thailand
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Type :
yarn warper
Production Capacity :
98%
Motor power :
25KW(Frequency Conversion Motor)
Key Selling Points :
Automatic
Port :
shanghai
Description

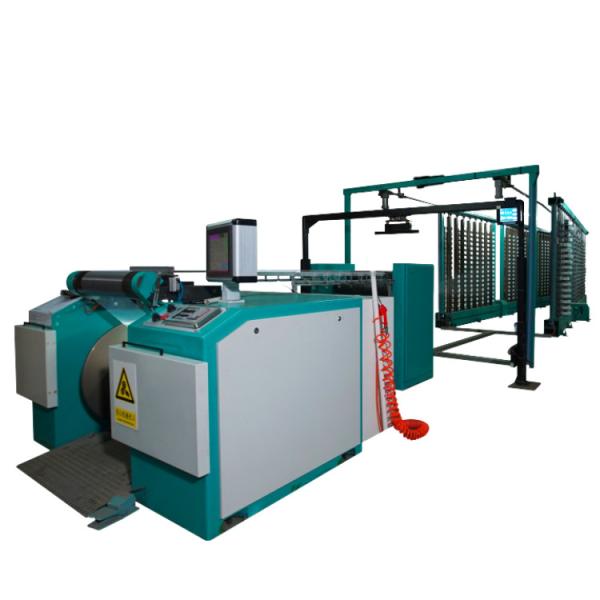

ZYTT-30/42 High Speed Copy Warping Machine
Product Applications
This warping machine is our new developed product for wide width fabric, with PLC , frequency converter, servo drive to implement communication bus control. It‘s suitable for polyamide and polyester filament, low elastic polyester.
Machine Parameters
1.Warper beam size:
A:42"x Ф40"(inch)
B:42"xФ30"(inch)
2.Warp line speed:50-1000(m/min).
3.Motor power:25KW(Frequency Conversion Motor)
4.Machine Dimensions(L*W*H):40000x7100x3000(mm)
5. Warp creel type and capacity: 600-1440 cones.
6.Damping tensioner : YZZ tension adjusted range:3-12,5-24,20-100CN.
7.Yarn storage:10m.
8. Balance roller servo motor power: 4KW.
9.The max . count range of200000m(circles)10.Mother Beams data:2 sets.(1 sets optional)
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
25KW Textile Warping Machine High Speed Copy Warping Machine
