21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
21x21 21x30 Textile Warping Machine Direct 3.7KW 1000m/Min
Specifications
Place of Origin :
China
Brand Name :
ZYTT
Packaging Details :
Wooden package
Supply Ability :
100 Set/Sets per Month
Price :
$23,000.00/sets 1-1 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Model Number :
21"x21"(inch),21"x30"(inch)
Applicable Industries :
Manufacturing Plant
Showroom Location :
United States, Italy, Viet Nam, Pakistan, India, Uzbekistan, Iron
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor, Gear
Condition :
New
Automatic Grade :
Automatic
Voltage :
380V
Power of Main Motor :
7.5KW
Warranty :
1 Year
Production Capacity :
98%
Model :
21/21,21/30
Function :
Improve Yarn Quality
Suitable for :
warping cotton yarn
Application :
Textile Industry
After-sales Service Provided :
Provide video
Port :
ningbo qingdao shanghai
Description

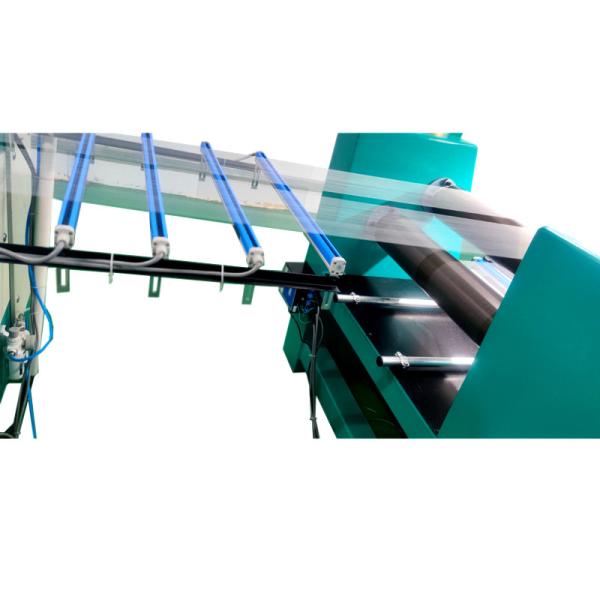

High Speed Direct Warping Machine
Brief Introduction
High speed direct warping machine, unique creation of China, adopts computer frequency conversation controlled technology, frequency, servo driven unit and PLC to real communication control. It reaches the international leading level and filing domestic vacancy. It is suitable for warping cotton yarn , polyamide and polyester filament , low elastic polyester fiber, viscose, and short-fiber yarn such as brocade yarn.
Machine Specification & Advantages
Beam size 21"xФ21"(inch),21"xФ30"(inch).
.Warping linearspeed 50-1000m/min
Main motor power 7.5KW frequency motor
Leveling roller motor 3.7KW servo motor
Max counting 100000m(circles)
The first beam data 2 groups
Copy precision (>3000 circles) same rolls, the deviation of same group beams circumference ≤0.25%

21

New type, simple operation, intelligent identification , auto-reservation of data, electronic gear, auto-controlled inspecting g machine and power cutting protection system, also with the extension n reed and measuring roller is overall moving. the guide reed is moving up and down to extend its' use life.
21

Company Profile
21
Our Partner
21
Certificates & Exhibitions
21
Packaging & Logistics
21
21
