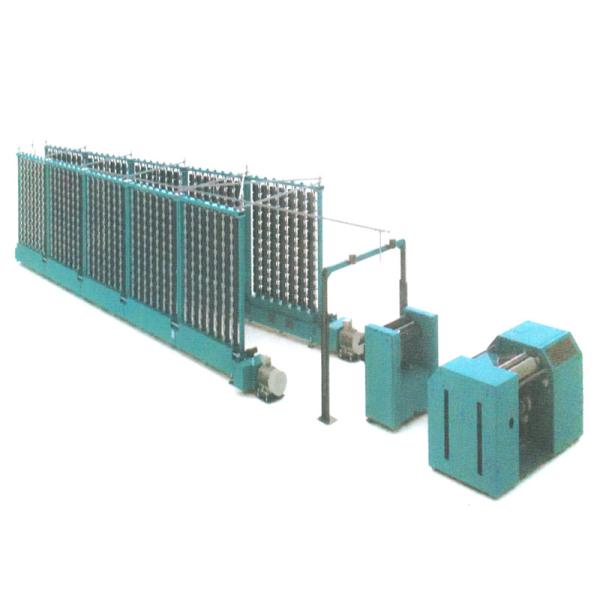

21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
package type: 1pc/polybag
Supply Ability :
5 Set/Sets per Month
Price :
$95,000.00/sets 1-4 sets
Certification :
CE
Delivery Time :
30 days
MOQ :
1 set
Applicable Industries :
Manufacturing Plant
Showroom Location :
United States, Italy, Viet Nam, Pakistan, India, Uzbekistan, Iron
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
New Product 2021
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Touch screen, Converter, high-speed servo system
Condition :
New
Automatic Grade :
Automatic
Voltage :
220V
Power :
5000
Weight :
5000 KG
Warranty :
1 Year
Product name :
spandex warping machine
beam size :
535x535mm(21 inches)
warper linear speed :
warper head20-6000m/min
breaking time :
less than 60s
creelhead :
720head(according to customer )
Bobbin size :
180x117mm&180x57mm
line speed :
0-600m/min
power of main motor :
5kw
Port :
SHANGHAI
Description
2021 hot selling High professional Elastic yarn warping machine produced by wuxi zhongyin.china
Brief Introduction
The machine adopts high-performance German servo drive and high-precision laser caliper. It has high control precision, strong reliability and easy operation and maintenance. It is an ideal warping machine for elastic yarn (such as spandex)
Machine Specification & Advantages
Line Speed
0~600 M/Min
Max. Tension of Line
300 N
Braking Torque
1600NM
Beam up/down
Pneumatic Control
Beam loose/tight
Pneumatic Control
Diameter of Speed Roller
150mm
Power of Main Motor
5KW
Monitoring Way
Immediate Monitor by Microcomputer Controlled Touch Screen
Pressure of Pneumatic Source
6 Bar


21 Inches Beam Warping Machine In Textile Industry Elastic Yarn
