textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Certification :
CE
Packaging Details :
Wrapped with plastic film and packed in wooden cases
Supply Ability :
10 Set/Sets per Year
Price :
$350,000.00/sets 1-4 sets
MOQ :
1 set
Delivery Time :
30 days
Plate Type :
Screen Printer
Applicable Industries :
Garment Shops, Manufacturing Plant, Printing Shops, Textile printing and dyeing industry
Condition :
New
Usage :
Cloths Printer, blanket printer
Automatic Grade :
Automatic
Color & Page :
Multicolor
Voltage :
380V
Dimensions(L*W*H) :
36m*4m*5m
Weight :
30000 KG
Max. Print Area :
1828mm
Warranty :
1 Year
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pump, PLC
standard colors :
6 9 12
printing type :
magnetic type+squeegee arbitrary combination
normal width :
180 200 220 240 260 280 300 320 cm
effective printing width :
1620 1850 2050 2250 2450 2650 2850 3050
repeat size mm :
640 820 914 1018 1018 1450 1828
printing vaeieties :
knitted woven fabric processingg
Port :
SHANGHAI
Description

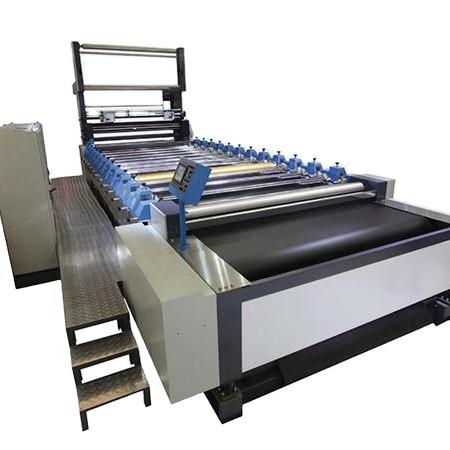

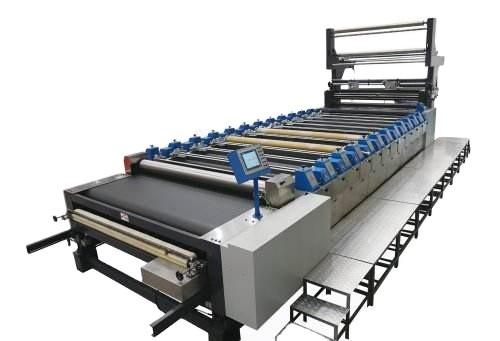

Repeat Variable Automatic Rotary Printing Machine
Brief Introduction
Our rotary screen printing machines are well suited to the mass production needs of textile factories. There are not only manual rotary screen printing machine, but also simple rotary screen printing machine and automatic rotary screen printing machine. At the same time, four-color rotary screen printing machine is our best quality products, we will provide more color services according to customer needs.
Machine Specification & Advantages
Nominal width
180 / 200 / 220 / 240 / 260 / 280 / 300 / 320 / 340 cm
Number of printing sets
3 / 6 / 9 / 12 / 15 sets
Printing position
640mm, 820mm, 914mm, 1018mm, 1450mm
Alignment accuracy
± 0.1mm
Process speed
4 m / min ~ 100 m / min
Scraping mode
magnetic rod / scraper
Power of Main Motor
165KW
textile Rotary Textile Printing Machine Industrial 165kw

Advantage 1

Main users spend back printing, with a spending back range of 640-1828mm The flower back is infinitely variable, electronic one key setting The patented design of variable bulkhead can meet all the needs of flower return with only standard chuck
textile Rotary Textile Printing Machine Industrial 165kw

Advantage 2

The patented design of variable diameter bulkhead can meet all the needs of flower return only with standard chuck Precision lifting printing platform to meet the requirements of large flower back printing The screen frame of printing unit is servo raised and lowered, and the flower return positioning is accurate

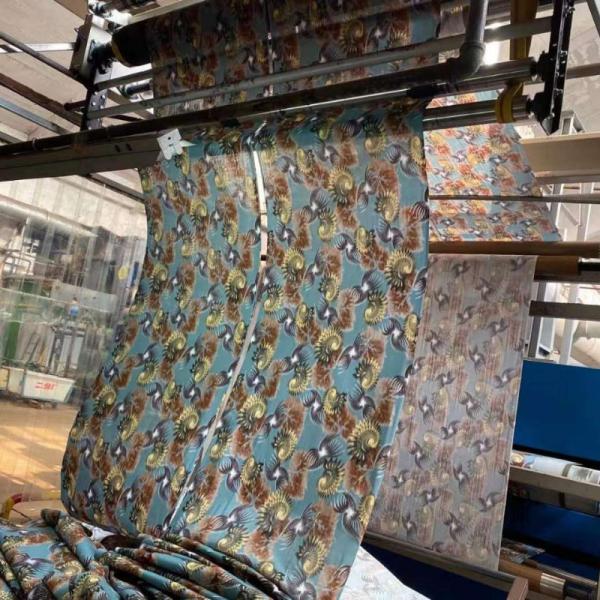

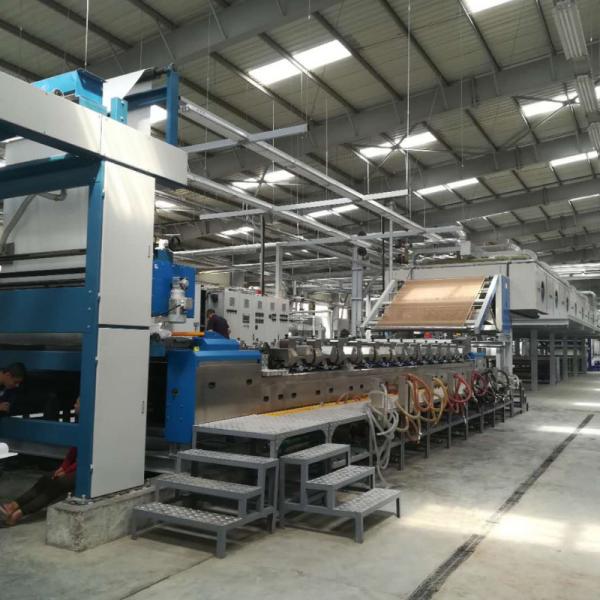

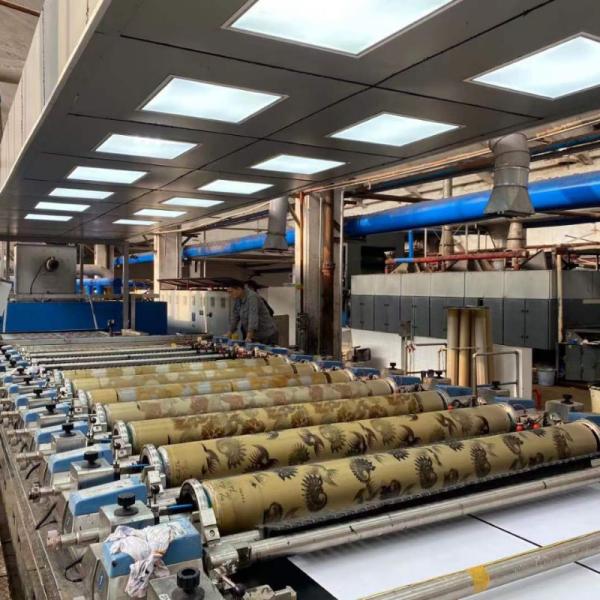

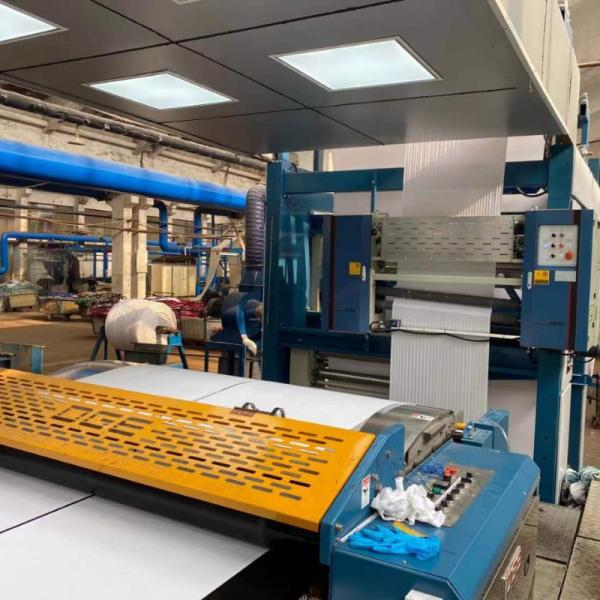

Machine Application
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
Company Profile
textile Rotary Textile Printing Machine Industrial 165kw
Our Partner
textile Rotary Textile Printing Machine Industrial 165kw
Certificates & Exhibitions
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
Packaging & Logistics
textile Rotary Textile Printing Machine Industrial 165kw
textile Rotary Textile Printing Machine Industrial 165kw
