Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
package
Supply Ability :
20 Set/Sets per Year
Price :
$128,000.00/pieces 1-1 pieces
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Applicable Industries :
Garment Shops, Manufacturing Plant
Showroom Location :
India
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Application :
yarn spinning
Type :
Spinning Production Line
Production Capacity :
rotor speed 120000rpm
Spinning Method :
Rotor Spinning
Automatic :
Yes
Dimension(L*W*H) :
69400x5830x7500mm 540rotors
Weight :
45000 KG
Power :
134.8KW
Warranty :
1 Year
Material application :
Ne 3-40 of cotton, T/C, viscose and chemical fiber
Function :
Yarn Production
Keywords :
Spinning machine
Rotors/section :
20
Rotor gauge (mm) :
230
Fiber length (mm) :
Max.60
Yarn count (tex) :
200~14.5(3 Ne~40 Ne)
Sliver count (tex) :
7140~2500(0.08 Ne ~0.24 Ne)
Draft ratio :
40~400
Twist range (t/m): :
250~1300
Port :
Shanghai
Description

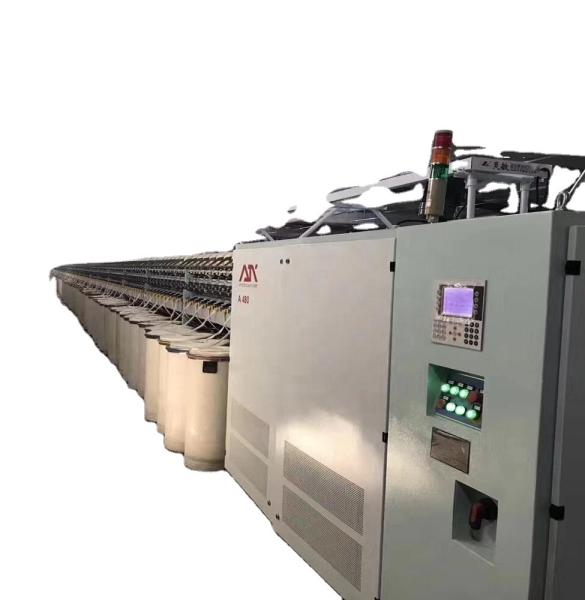

Used Open end rotor spinning textile machine for spinning cotton
Brief Introduction
Long machine, High speed, High productivity——Maximum rotor quantity can reach to 600 rotors. The practical spinning speed can be up to 100 000 RPM and the drawing-off speed can be up to 200m/min.
Individual Unit Control, Digital Piecing-up——The spun unit with stepping motor feeding can realize individual unit control and digital piecingup to improve high quality yarn.
Digital Forming, Perfect Package——Electric cam adopts the arrangement of 5 different kinds of curves to remove yarn overlap thoroughly and ensure perfect Package 200 m/min.
Machine Specification & Advantages
Combing roller speed (rpm)
5000~10000
Delivery speed (m/min.)
Max 200
Feeding speed (m/min)
0.2~4.8
Winding tension ratio
0.92~1.02
Winding angle
30°～40°
Package dimensions (mm)
Φ320×150
Can dimension (mm)
900×Φ400/1100×Φ400
Rotor diameter (mm)
31,33,36,41,50
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry

tip 1

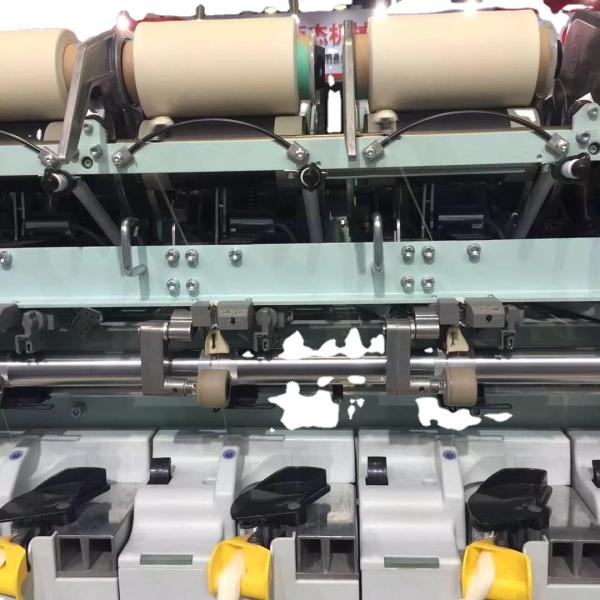

Semi-automatic Mechatronics Piecing-up System Semi-auto system make piecing-up better quality and more accurate control. The success rate of piecing-up can reach over 90% under spinning speed of 10000RPM.
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry

tip 2

Bilateral Independent Transmission System The left and right sides are completely independent transmission, double conveyor belts carry yarn, and both sides start and stop separately, which can realize the simultaneous spinning of two yarn counts on the machine.

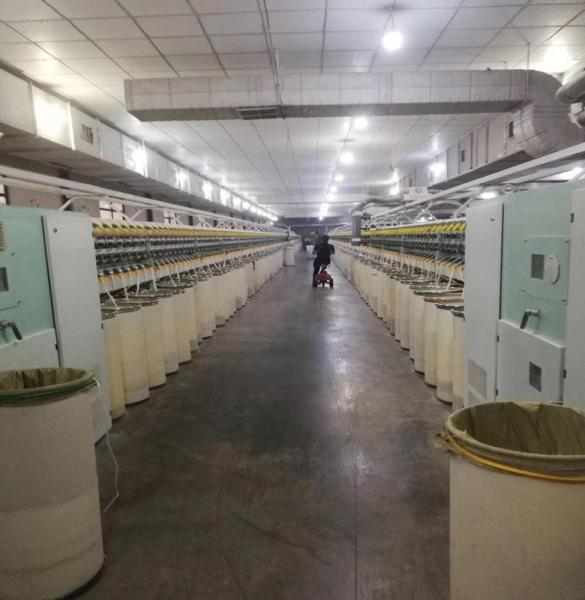

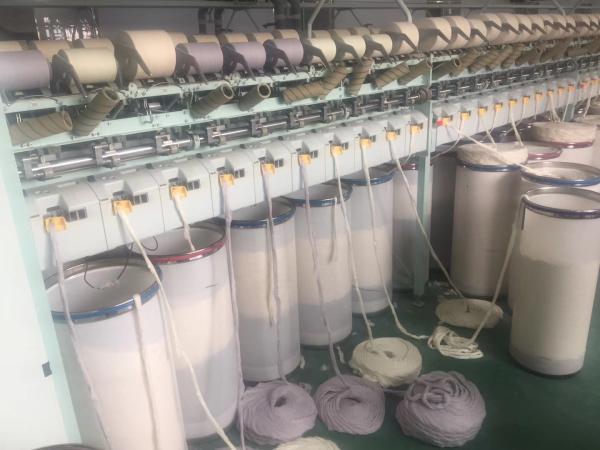

Machine Application
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Company Profile
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Our Partner
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Certificates & Exhibitions
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Packaging & Logistics
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
Open End Textile Machinery Fiber Small Cotton Spinning Machine In Textile Industry
