Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
Specifications
Brand Name :
ZYTT
Model Number :
ZY-JWF1618
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD125000-130000/Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 sets per month
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
Spinning Production Line,Winder Machine
Condition :
New
Automatic :
Yes
After-sales service provided :
Video technical support
Power(w) :
115-170kw
Spinning method :
Rotor Spinning
Application :
Textile,Making Yarn,Spinning Line,industrial
Weight :
4T
Production capacity :
HIGH SPEED
Warranty :
1 Year
Name :
Cotton yarn spinning machine / textile spinning machine
Voltage :
380v
Color :
white
Description

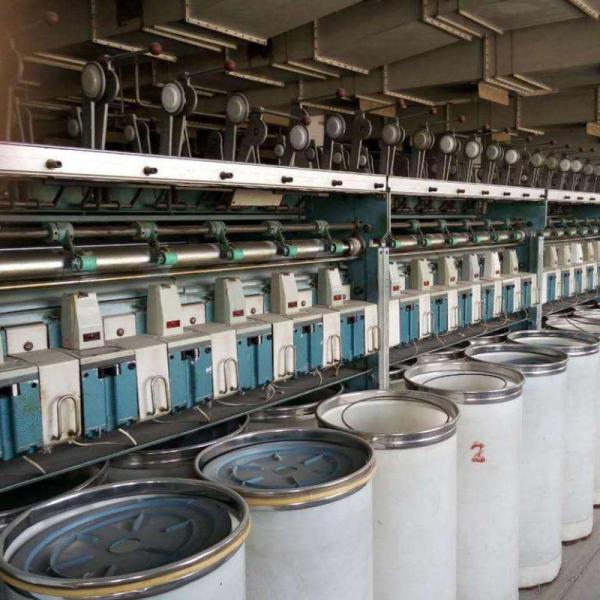

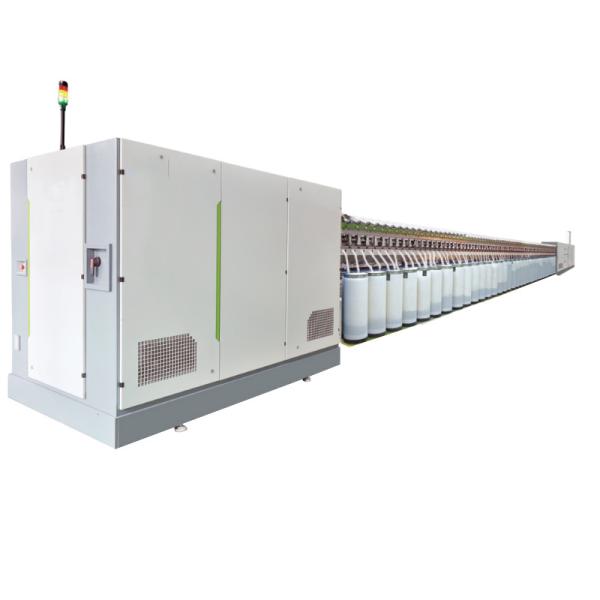

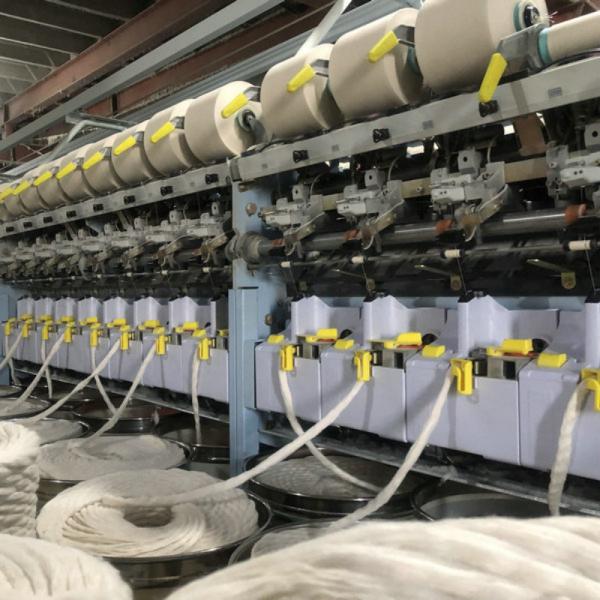

Modern Open End Rotor Spinning Machine

This rotor spinning machine is a new generation of digital high speed section type rotor spinning machine.

The high-end design concept based on the foreign advanced technology and combined with more than 40

years of R&D experiences. it is a new generation of digital high speed section type rotor spinning machine.

The machine is suitable for spinning Ne 3-40 of cotton, T/C, viscose and chemical fiber. The whole machine's

performance reached the international advanced level. JW Rotor Spinning Machine is the best replacement

of imported equipment.

Rotor speed (rpm) 60000~120000
Twist range (t/m) 250~1300
Draft ratio 40~400
Sliver count (tex) 7140~2500(0.08 Ne ~0.24 Ne)
Yarn count (tex) 200~14.5(3 Ne~40 Ne)
Fiber length (mm) Max.60
Combing roller speed (rpm) 5000~10000
Delivery speed (m/min.) Max 200

Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm

Advantage 1:Full frequency conversion closed loop control systemThe fan and motor speed are

automatically adjusted in real time according to the needs of the system to ensure a constant

negative pressure in the system, which not only ensures the quality of the yarn but also achieves

the purpose of energy saving

Advantage 2:Auxiliary Yarn Suction Feeder Ensures Perfect Package Equipped with auxiliary yarn

suction device, even when piecing at the highest speed, it can ensure perfect package quality

Advantage 3:Tail Yarn Retaining Function Equipped with a doffing suction device, the full doffing

has the function of retaining tail yarn. It can greatly reduce the workload of the operator during

doffing.

Automatic Open End Rotor Spinning Machine Manufacturers Capacity 120000rpm
