Specifications
Place of Origin :
China
Packaging Details :
Wooden package
Supply Ability :
100 Set/Sets per Month
Price :
$23,500.00/sets 1-2 sets
Brand Name :
ZYTT
Certification :
CE
Delivery Time :
30 days
MOQ :
1 set
Model Number :
21/42
Applicable Industries :
Manufacturing Plant
Showroom Location :
United States, Italy, Viet Nam, Pakistan, India, Uzbekistan, Iron
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor, Gear
Condition :
New
Automatic Grade :
Automatic
Voltage :
380V
Total power consumption :
<25KW
Warranty :
1 Year
Name :
spandex Warping Machine
Function :
Improve Yarn Quality
Suitable for :
Yarn
Application :
Textile Industry
Keyword :
spandex
Port :
shanghai
Description
ZYTT-21/42 Spandex Warping Machine
Product Introduction
Spandex Warping Machine with Vertical Creel, It's a high-performance warping machine that is suitable for elastic yarn. It is suitable for warping all kinds of elastic yarn, especially for knitting high quality plain cloth. It could reduce the warp beam qty. for warp knitting machine, for improving the quality of the cloth.
The machine is mainly composed by creel, photo-self stopping device, yarn guider, drawing roller, leveling roller and warper head.
Machine Specification & Advantages
Warper beam size 42"xΦ21"(inch)42"xΦ30"(inch).
Maximum creel linear speed 300m/min, Max. warper linear speed:600m/min
Pre-draft:0-200%,Final draft 15-100%.
Creel capacity 476-1760 (Normal), According to customer’ s requirement.
Servo Motor Power Warper head power 26KW, Leveling roller 3.8KW, Draft roller:6.4KWCreel:2x17.2KW
Total power consumption <25KW.
Machine Size 3250x2200x8600mm(1760cones)

Product Features
1.It's driven in-phase by 5 pcs of high performance servo motor which are made by Lenze Germany The warper head, leveling roller, draft roller and creel(L&R) are driven by servo motor to eliminate some problems such as noise, maintenance and damager which caused by traditional mechanical drive.
2. To ensure the precision of line speed of beam, the warper adopts high precision
laser to measure and monitors winding perimeter of the beam.
3. Protection system is equipped to avoid problems caused by power break, no phrase and no pressure.
4.High precision cam scan stop device is equipped to ensure stop immediately during missing ends and yarn broken.
5.The system is equipped with self-diagnosed function which can monitor the condition in real time and yarn tension for making sure the system safety and precision.
6.The deviation of stop synchronization is less than ±3%, It's no effect for the draft to yarn, even the warp beam stop many times.

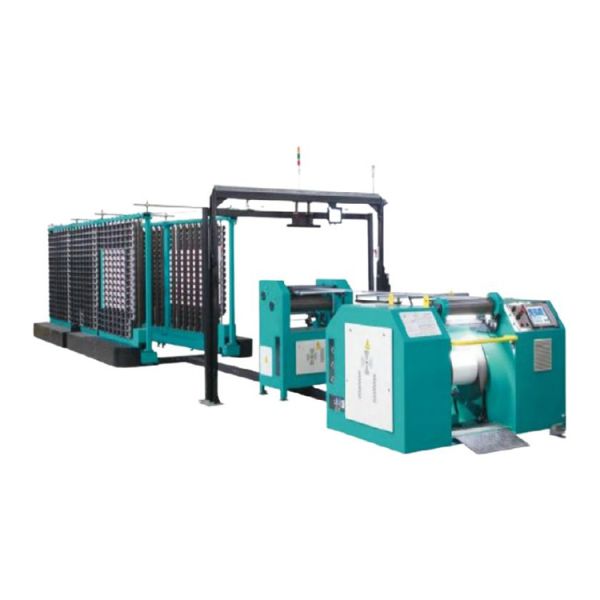

Machine Display
Beam 42
Company Profile
Beam 42
Our Partner
Beam 42
Certificates & Exhibitions
Beam 42
Beam 42
Beam 42
Packaging & Logistics
Beam 42
Beam 42
