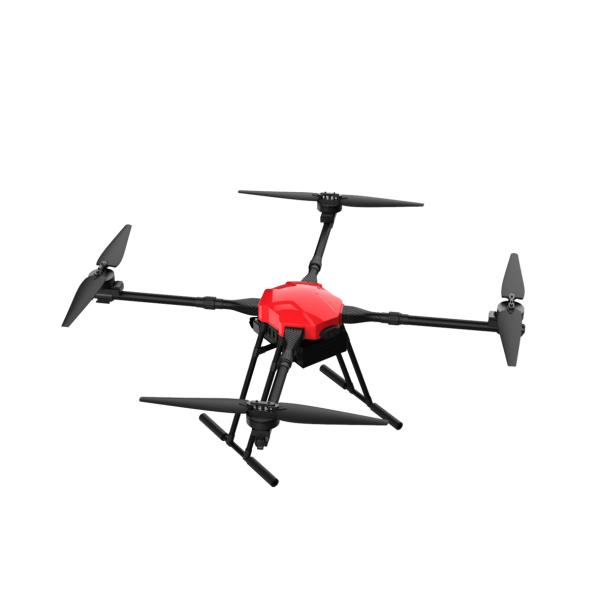

Long Time Endurance Tethered Surveillance Drone 4 Rotor Drones W20
Long Time Endurance Tethered Surveillance Drone 4 Rotor Drones W20
Long Time Endurance Tethered Surveillance Drone 4 Rotor Drones W20
Long Time Endurance Tethered Surveillance Drone 4 Rotor Drones W20
Specifications
Brand Name :
Kitefly
MOQ :
1~5unit
Price :
negotiable
Payment Terms :
T/T,L/C, Western Union
Place of Origin :
china
Delivery Time :
1~4week
Supply Ability :
1~5unit
Description

Model: AF-W20

Product Material: Carbon Fiber+Aviation Aluminum Alloy

Number of rotors: 4 rotors

Wheelbase: ≤ 1560(±20)mm

Unfolding size (mm): 1250 * 1250 * 710 (± 20) mm

Folding size (mm): 850 * 850 * 710 (± 20) mm

Empty weight: ≤ 13KG (excluding battery weight)

Maximum load: ≤ 20KG

Maximum takeoff weight: ≤ 42KG

Maximum flight speed: ≤ 18m/s

Maximum ascent speed: ≤ 5m/s

Maximum descent speed: ≤ 4m/s

Maximum takeoff altitude: 3000m

No load endurance: ≥ 35min

Positioning system: GPS positioning

Power system: Efficient FOC power

Propeller size: 34 inch folding propeller

Power battery: 16S 28000mAh * 1

Charger: Intelligent Super Fast Charging

Remote control: Clear resolution 1920 * 1080 integrated display 5.5-inch screen

Remote standby time: 3-5 hours

Image and data transmission distance: 5km (upgradable)

Safe wind speed: ≤ Level 6

Working temperature: -20 ℃ to 50 ℃

Body protection level: IP45
