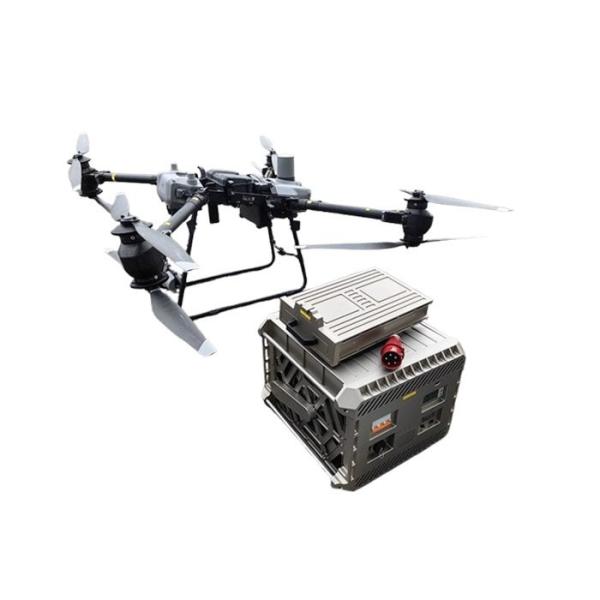

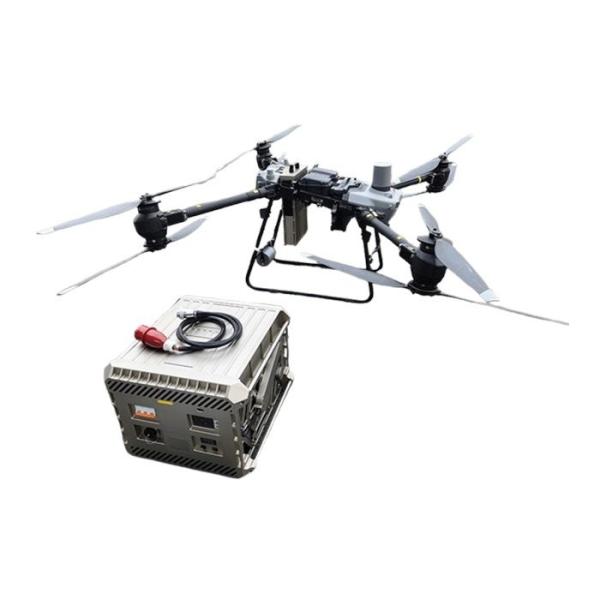

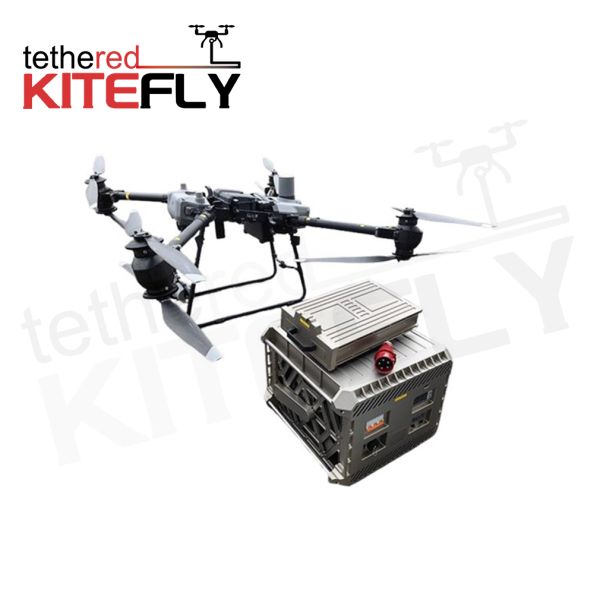

DJI Tethered FC30 Carrier Tethered

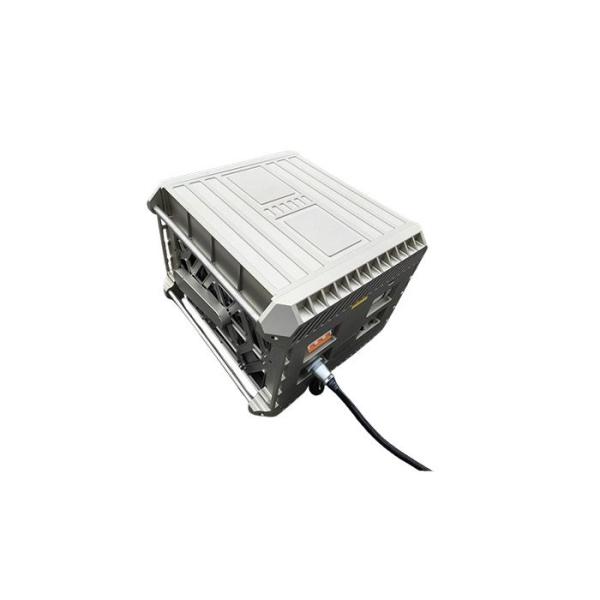

Onboard Power Supply

• Input Voltage: 580-810 Vdc, wide input range

• Output Voltage: 59 Vdc ±1%, constant regulated output, with voltage customization available

• Output Power: ≥18000W (nominal continuous output), ≥22000W (peak for at least 10s)

• Protection Functions: Input overvoltage and undervoltage protection; output overvoltage, overcurrent, short-circuit, and over-temperature protection

• Isolation Voltage: ≥3000V (Vin-Vout), 1-minute withstand voltage test, leakage current 5mA, no breakdown

• Installation Method: Replaces one drone battery, plug-and-play installation

• Input Connector: LP20 aviation plug

• Output Connectors: Battery interface, XT90, XT60 × 2

• Protection Rating: IP54

• Dimensions: 468 × 308 × 142 ±0.5 mm (excluding handle and connectors)

• Weight: 10.8 ±0.2 kg (replacing a 11.5 kg drone battery)

Tether Cable

• Material: High-temperature-resistant alloy copper wire, composite fluoropolymer insulation layer, high-modulus tensile aviation-grade fiber braided layer

• Current Capacity: 25-30A, internal resistance 1.6 ±0.1Ω (100m @ 20℃ loop)

• Tensile Strength: ≥300 kg, with ≥1000 cycles of repeated reeling/unreeling

• Insulation Strength: ≥3500 Vdc, no breakdown in 1-minute test

• Fiber Optic Communication: The tether cable is a hybrid fiber-optic and electrical cable, containing tight-buffered single-mode fiber, with optional fiber optic communication

• Cable Length: Standard: 220m (4 layers of winding in the box), Optional: 330m (6 layers of winding in the box)

• Outer Diameter: 6.3 ±0.1 mm

• Weight: 44 ±1 g/m

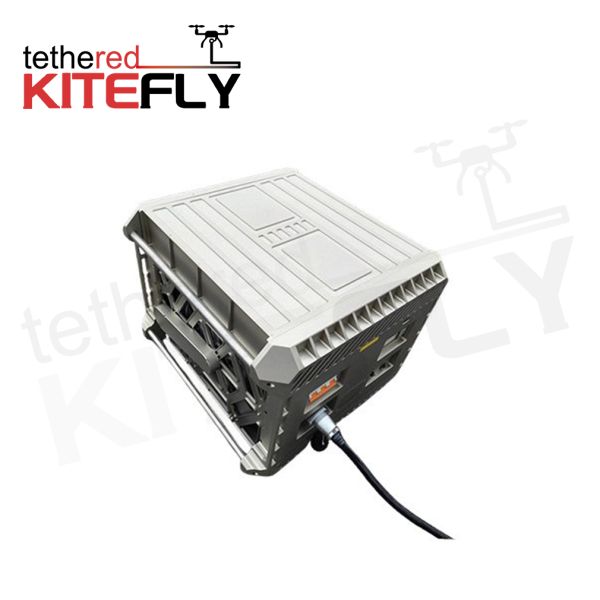

Tether Box

• Input Voltage: 380 ±10% VAC, three-phase five-wire system, frequency 50Hz

• Output Voltage: 600-800 Vdc adjustable (default 800 Vdc at factory)

• Output Power: ≥22000W (nominal continuous output), ≥25000W (peak for at least 30s)

• Reeling Speed: 0-3 m/s, adjustable in steps

• Reeling Tension: 0-20N, adjustable in steps

• Input Connector: Aviation plug

• Tether Output: LP20 aviation plug

• Fiber Optic: FC connector (optional)

• Switches and Buttons: AC switch, high-voltage on/off button, emergency reeling button, backup power switch

• Protection Rating: IPx4

• Dimensions: 600 × 570 × 460 ±0.5 mm (excluding feet and external accessories)

• Weight: 54 ±0.5 kg (excluding tether cable)

Environmental Characteristics

• Ambient Temperature:

  • Operating: -20 to 45°C

  • Storage: -40 to 65°C

• Relative Humidity:

  • Operating: 10 to 80% RH

  • Storage: 5 to 90% RH

• Altitude: ≤3000 m

Packaging and Transportation

• Dimensions: Wheeled flight case: 850 × 740 × 600 ±5 mm (excluding wheels)

• Weight: 115 ±5 kg (including tether box, onboard power supply, accessories, and documents)
