Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Specifications
Brand Name :
Infinity Machine Inc.
Model Number :
C5092
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200SETS PER MONTH
Delivery Time :
35-40 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Automotive Cable Cyclic Bending Tester
Model :
C5092
Application :
cables cyclic cable bending test machines is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc.
Test standard :
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test amount :
2 PCS
Test speed :
10~60rpm±2cpm (Frequent user of 13rpm)
Angle range :
±90° / 0°~180°
Testing cycles :
1～999,999times
Power :
Single phase AC220V or 120V±10%, 50/60Hz
Warranty :
1 Year
Description
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Model C5092 - Cable Cyclic Bending Testing Equipment
This specialized testing machine evaluates the durability and conductivity of automotive cables, communication cables, earphone cables, and similar multi-wire products through cyclic bending tests.
Testing Methodology
The testing process involves short-circuit connecting one end of the cable, fixing this end on the rotation plate, applying calibrated weights, and performing controlled left and right rotations. The equipment assesses cable conductivity after specified rotation cycles to evaluate overall cable quality and durability.
Compliant Test Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Technical Specifications
SpecificationDetails
ModelC5092
Test Amount2 PCS
Test Speed10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range90°
Min Display Angle±1°
Testing Cycles1～999,999 times
Guide Wheel RadiusR13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate275mm
Weights100g, 200g, 500g, 1000g (each 2 pcs)
Dimensions (W×D×H)1280×724×1320mm
Weight350kg
Power SupplySingle phase AC220V / AC120V 50/60Hz 5A or specified by user

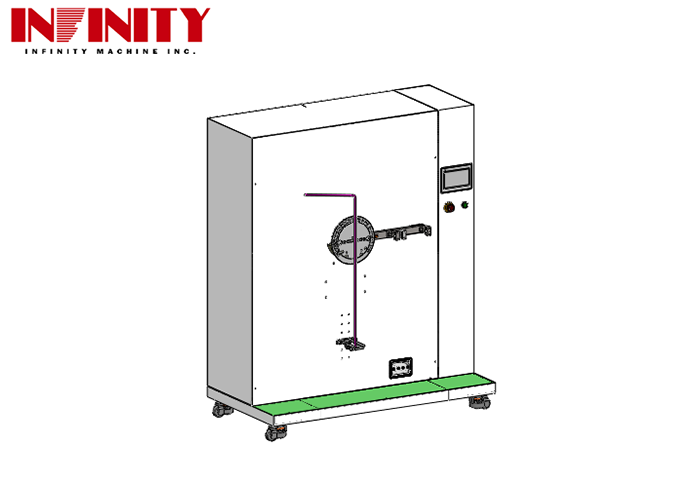

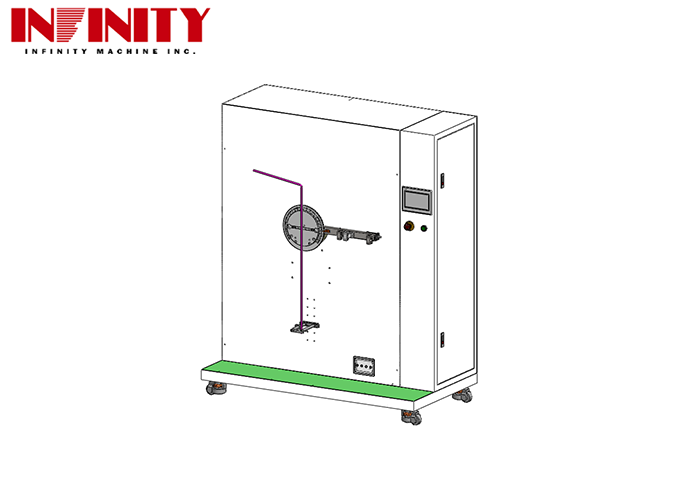

Product Appearance
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Automotive Cable Cyclic Bending Test Equipment ISO 19642-2:2023
Packaging and Shipping
Secure Packaging
Automotive cables cyclic bending testing machines are securely packaged in reinforced wooden crates to prevent any damage during transportation. Each crate is clearly labeled with shipping marks for easy identification and handling.
Reliable Shipping
All testing equipment is shipped through reliable and experienced shipping companies. Transportation is carefully arranged to ensure timely delivery and safe handling. Customers receive comprehensive tracking information to monitor shipment status throughout the entire delivery process.
