IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
Specifications
Brand Name :
Infinity Machine Inc.
Model Number :
IC2186
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
35~45 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
90° Flexible Cable Flexing Test Apparatus
Model :
IC2186
Application :
Apply for bending endurance test for cable connected with plug.
Standards :
GB2099-2008、IEC 60884-1:2022
Jig :
6 sets
Bending angle :
1~180° (±90°) (Adjustable)
Bending speed :
10~60c.p.m (Adjustable)
Load :
50, 100, 200, 300, 500g (6 per each)
Power :
AC220V or AC110V
Warranty :
1 Year
Description
IEC 60884-1:2022 Flexible Cable 90° Flexing Test Apparatus Plug Bending Testing Machine
Product Overview
Model: IC2186
The IEC 60884-1:2022 Flexible Cable 90° Flexing Test Apparatus is designed for bending endurance testing of cables connected with plugs. This testing machine evaluates cable durability by simulating real-world bending conditions.
Application
This flexible cable 90° flexing test machine performs bending endurance tests for cables connected with plugs. The sample is fixed on the jig with weight applied to the cable, then the jig swings right and left at the set angle. After completing the required rotation cycles, the test stops for cable inspection. Alternatively, when testing electrified cables, the machine counts rotation cycles until cable failure, automatically stopping when the cable breaks and disconnects from electricity.
Specifications
Model IC2186
Standards GB2099-2008, IEC 60884-1:2022
Jig 6 sets
Bending Angle 1~180° (±90°) (Adjustable)
Bending Speed 10~60 c.p.m (Adjustable)
Counter 6 individual counters
Load 50, 100, 200, 300, 500g (6 per each)
Weight 132kg
Dimension (W*D*H) 960*530*850mm
Power Supply AC220V 3A or specified by user

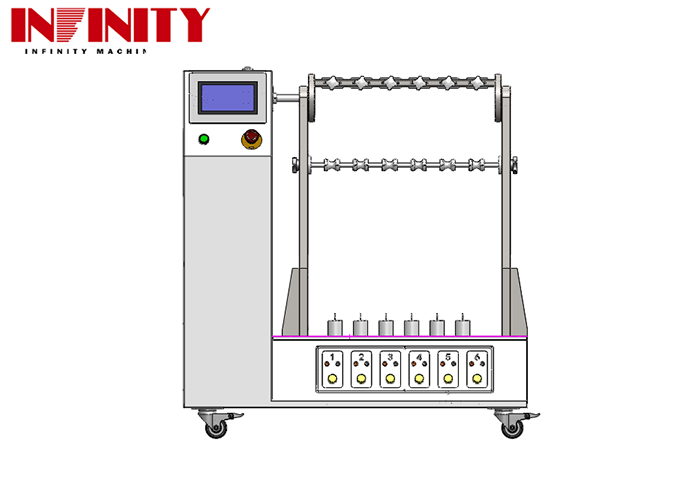

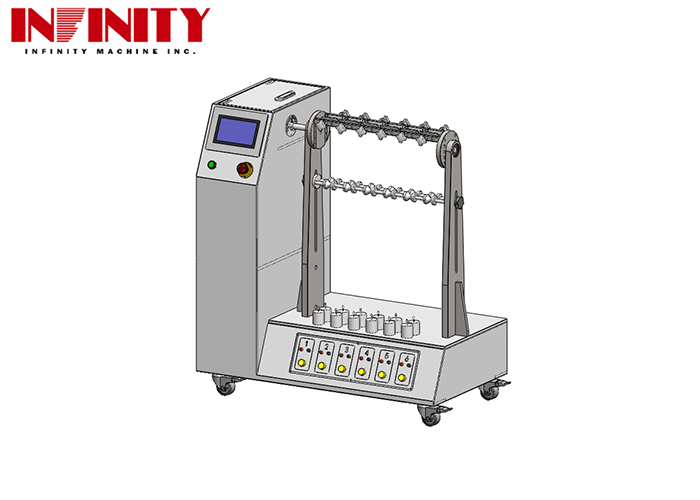

Product Appearance
IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs IEC 60884-1:2022 Compliant Flexible Cable Bending Test Apparatus with Adjustable Angle and 6 Jigs
Packaging and Shipping
Product Packaging: The flexible cable flexing test machine is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Related Product Recommendation
Cable Bending Cycle Testing Machine: Suitable for bending testing of multi-wire cables, communication cables, earphone cables, and similar applications.
Multi Conductor Cable 90° Bending Testing Cable Flex Cycle Test Machine
