Specifications
Brand Name :
YUHONG
Model Number :
Heat exchanger
Certification :
ASME, TEMA
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on drawing
Payment Terms :
T/T, L/C, D/A
Supply Ability :
60 SETS/MONTH
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Heat Exchanger Type :
Fixed Tube Sheet Heat Exchanger
Material Standards :
ASTM B111 / ASTM B543
Material :
C71500 Copper Nickel Alloy (70/30 Cu-Ni)
Outer Diameter, OD :
19.05 mm
Wall Thickness :
BWG 16 to BWG 12
Tube Length :
1.5 m to 12 m
Surface Treatment :
Pickling & Passivation or Sandblasting
Application :
Seawater Cooling, Petrochemical, Marine Systems
Description

​​Offshore Heat Exchanger TubeBundle ASTM B111 C71500 Tubes (Ø19.05mm), Sour Service Ready

Yuhong Holding Group Co., Ltd. specializes in providing professional industrial equipment to engineering companies, including heat exchangers, fired heaters, and air coolers. With a focus on quality and reliability, we are committed to delivering high-performance products that meet the specific needs of various industries.

Chemical Composition of Heat Exchanger TubeBundle ASTM B111 C71500 Tubes

C71500 is a copper-nickel alloy known for its excellent resistance to corrosion, especially in marine environments. The chemical composition of C71500 is as follows:

Element Composition (%)
Copper (Cu) 70.0 - 90.0
Nickel (Ni) 10.0 - 30.0
Iron (Fe) 0.5 max
Manganese (Mn) 1.0 max
Zinc (Zn) 0.5 max

Mechanical Properties of Heat Exchanger TubeBundle ASTM B111 C71500 Tubes

C71500 exhibits excellent mechanical properties, making it suitable for demanding applications in heat exchangers. Key properties include:

Property Value
Yield Strength 220 MPa
Tensile Strength 450 MPa
Elongation 30%
Hardness 70 HRB
Operating Temperature Up to 300 °C

Common Materials for Heat Exchanger TubeBundle ASTM B111 C71500 Tubes

When constructing tube bundles for heat exchangers, several materials may be utilized. Common options include:

Material Description
C71500 Copper-nickel alloy with excellent corrosion resistance
C70600 Another copper-nickel alloy, often used in seawater applications
Stainless Steel Commonly used for its strength and corrosion resistance

Advantages of Heat Exchanger TubeBundle ASTM B111 C71500 Tubes

The C71500 copper-nickel alloy tubebundle offers several key advantages:

  • Corrosion Resistance: C71500 is particularly resistant to pitting and crevice corrosion, making it ideal for use in marine and industrial environments.
  • Durability: The alloy's mechanical properties ensure longevity and reliability, even under high-pressure conditions.
  • Thermal Conductivity: Copper-nickel alloys provide excellent thermal conductivity, enhancing the efficiency of heat exchange processes.
  • Weldability: C71500 exhibits good weldability, allowing for easy integration into various systems.

Additional Supply Options

In addition to the C71500 tubebundle, Yuhong Holding Group Co., Ltd. can supply:

  • C71500 Plates: Available for applications requiring flat material.

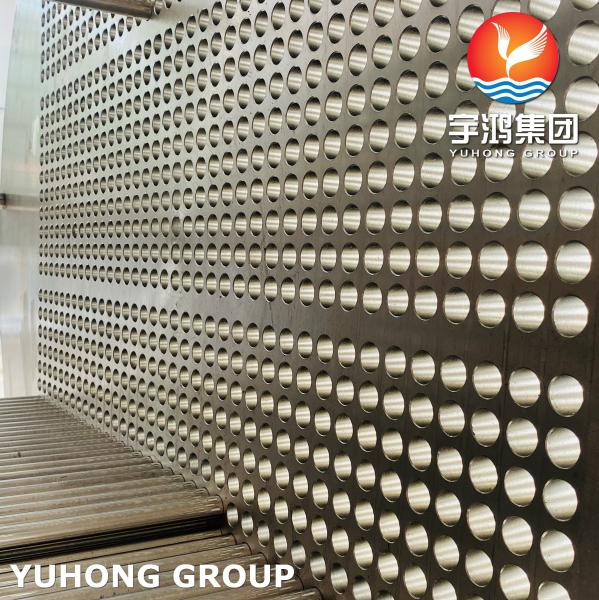

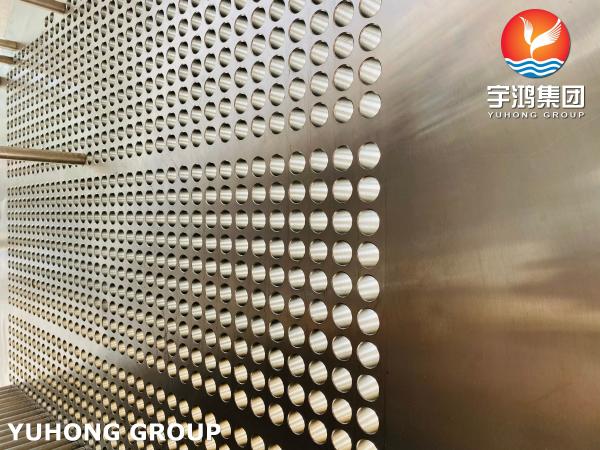

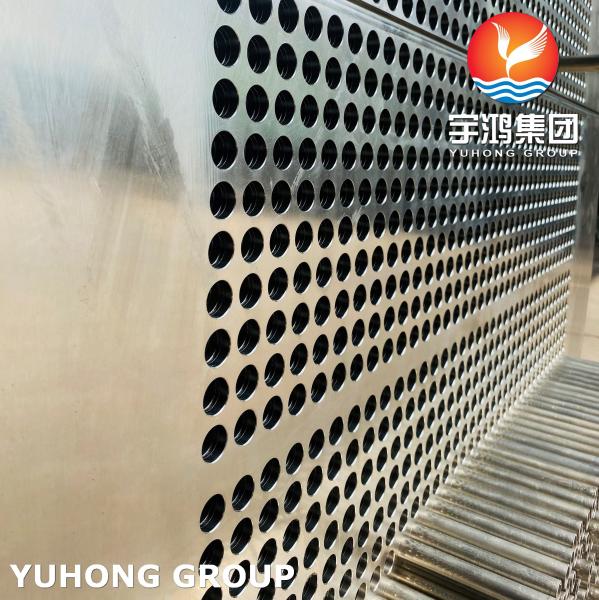

  • Tube Sheets: Custom-designed to fit specific heat exchanger configurations.
  • Flanges: Manufactured to meet industry standards for secure connections.

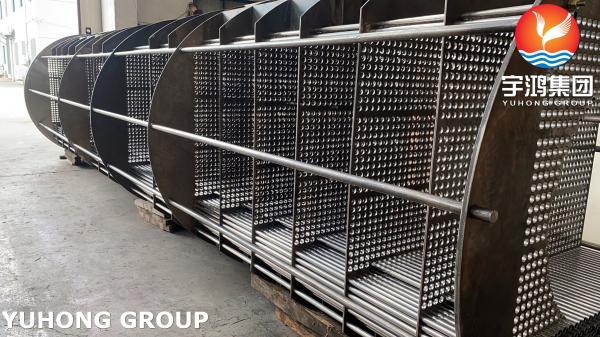

Component Description Function
Tubes C71500 copper-nickel alloy tubes Facilitate heat transfer between fluids
Tube Sheets Plates that secure the tubes Provide structural support and direct flow
Baffles Plates that create fluid flow paths Enhance heat transfer efficiency by directing flow
Nozzles Openings for fluid entry and exit Allow for the inlet and outlet of fluids
Flanges Connection points for attaching to other equipment Ensure secure and leak-proof connections
End Caps Close off the ends of the tube bundle Prevent fluid leakage and maintain pressure
Supports Structural components that hold the tube bundle in place Provide stability and alignment during operation
Gaskets Seals used between flanges and tube sheets Prevent leaks and ensure a tight seal
Insulation Material applied to reduce heat loss Improve energy efficiency and safety
Expansion Joints Allow for thermal expansion of the tubes Prevent damage due to thermal stress

Applications Heat Exchanger TubeBundle ASTM B111 C71500 Tubes

The C71500 copper-nickel alloy tubebundle is primarily used in fixed tube heat exchangers, with applications including:

  • Marine Heat Exchangers: Ideal for cooling and heating in shipbuilding and offshore platforms.
  • Chemical Processing: Employed in various chemical plants where corrosion resistance is crucial.
  • Power Generation: Used in heat exchangers for cooling systems in power plants.
