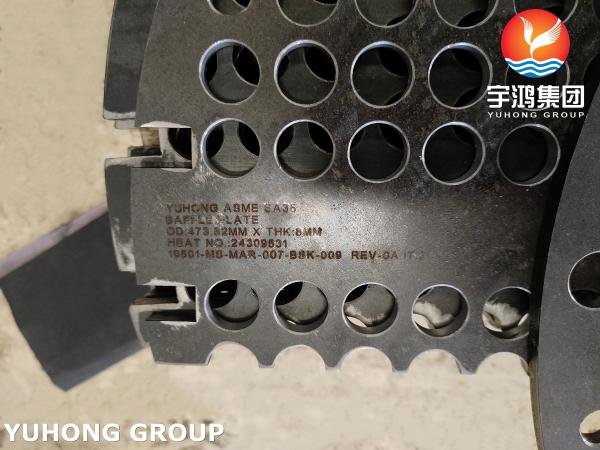

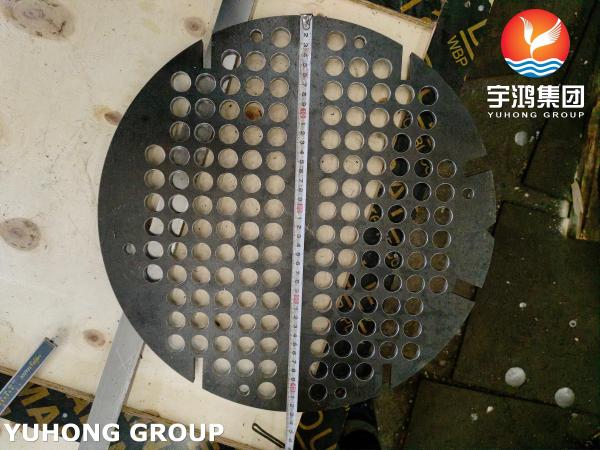

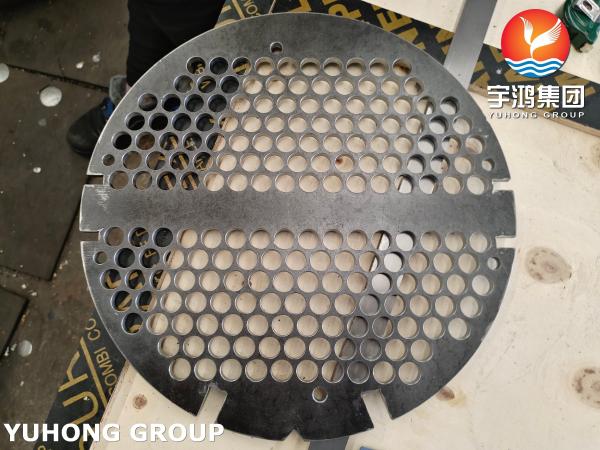

ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA36
Certification :
ASME U CERTIFICATED
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
50 TONS/ month
Delivery Time :
25-30 DAYS
Packaging Details :
PLY WOODEN CASE WITH PLASTIC COVER
Material :
carbon steel
Application :
tube bundle or heat exchanger/condenser
Warranty :
5 years
Size :
Custom Made
Edge Detail :
Square
Product Type :
Baffle
Description

ASME SA36 Baffle Plate – Technical Overview

Durable Structural Component for Industrial Applications

1. Introduction

The ASME SA36 Baffle Plate is a carbon steel structural plate manufactured in compliance with the ASME SA36/ASTM A36 standard. Designed for high-strength applications, it is widely used in:

  • Pressure vessels

  • Heat exchangers

  • Boiler systems

  • Storage tanks

  • Pipeline supports

Its primary function is to redirect fluid flow, reduce vibration, and enhance structural integrity in industrial equipment.

2. Key Features

Property Specification
Material Standard ASME SA36 / ASTM A36
Material Type Carbon Steel
Thickness Range 3mm to 50mm (customizable)
Size Availability Up to 3m x 12m (standard)
Surface Finish Mill scale, blasted, or coated (optional)
Yield Strength ≥ 250 MPa (36,300 psi)
Tensile Strength 400–550 MPa (58,000–79,800 psi)
Applications Baffles, supports, gussets, reinforcement

3. Advantages

✅ Cost-Effective: Low-carbon steel balances strength and affordability.
✅ Weldability: Excellent compatibility with common welding techniques.
✅ Corrosion Resistance: Optional coatings (e.g., galvanization) for harsh environments.
✅ Versatility: Customizable dimensions and hole patterns (e.g., drilled or perforated).

4. Manufacturing Process

  1. Material Selection: SA36-grade hot-rolled steel.

  2. Cutting: Plasma, laser, or waterjet cutting to required shapes.

  3. Forming: Press-bending or rolling for curved baffles.

  4. Surface Treatment: Sandblasting, priming, or galvanizing.

(Include an image of a baffle plate here with dimensions or installation in a heat exchanger.)

5. Compliance & Certifications

  • ASME Section II (Material Standards)

  • ASTM A36 (Parallel U.S. standard)

  • EN 10025-2 (Equivalent EU standard)

6. Ordering Information

Specify:

ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger

  • Thickness

  • Dimensions (L x W)

  • Hole pattern (if applicable)

  • Surface treatment
