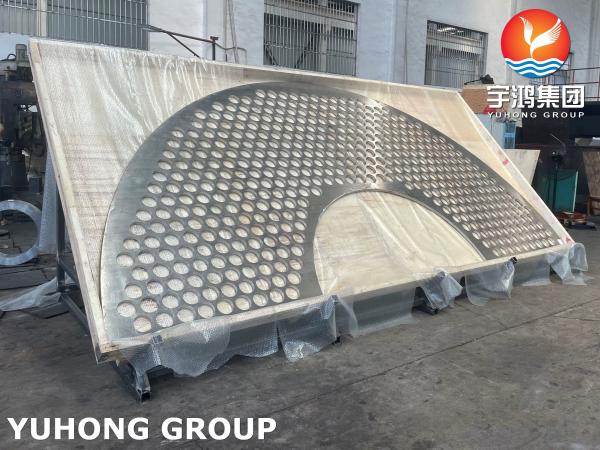

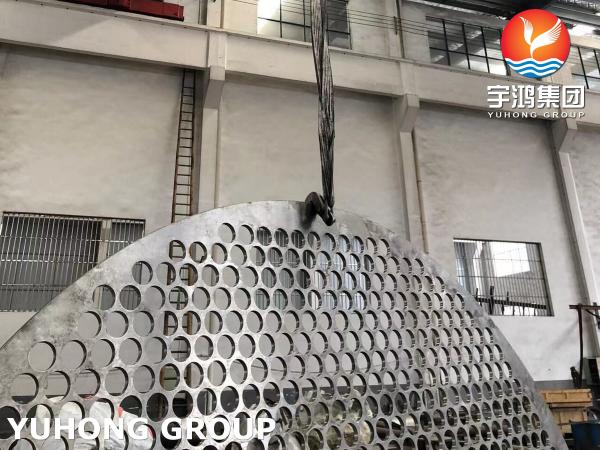

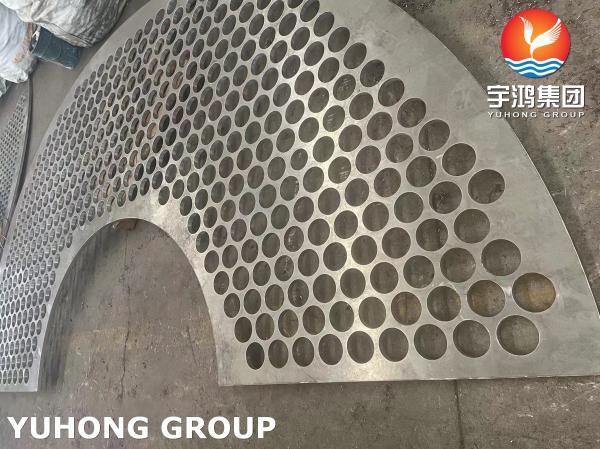

TP304L Stainless Steel Single Segmental Baffle for Heat Exchangers

Yuhong Holdings Group Co., Ltd. is a leading manufacturer in the pressure vessel industry, boasting an annual production capacity exceeding 6,000 tons. We provide a wide range of products, including thin film evaporators, heat exchangers, reaction vessels, towers, storage tanks, and filters. Our products cater to various sectors, including biopharmaceuticals and petrochemicals, and we also supply equipment spare parts to our customers.

TP304L Chemical Composition

TP304L Mechanical Properties

Advantages of TP304L Material as a Baffle

• Corrosion Resistance: TP304L exhibits excellent resistance to corrosion, making it suitable for various environments.
• Durability: The material's mechanical properties ensure a long service life and reliability in heat exchanger applications.
• Versatility: TP304L is widely used across different industries, enhancing its applicability in diverse heat exchanger designs.

Types of Baffles

• Segmental Baffles: Commonly used in heat exchangers to enhance fluid mixing and heat transfer efficiency.

• Disc and Doughnut Baffles: Used in specific applications where minimal flow disruption is required.

• Double Segmental Baffles: Designed to improve thermal performance in certain configurations.

• Orifice Baffles: These baffles feature openings or orifices that allow the process fluid to flow through. They are commonly used to regulate flow rate and pressure.

• Helical Baffles: Designed with a helical shape, these baffles create a spiral flow pattern that helps reduce pressure drop and enhance heat transfer efficiency compared to traditional segmental baffles.

• Rod Baffles: Comprised of rods aligned parallel to the tube bundle axis, rod baffles enable fluid to flow freely along the length of the tubes. They are primarily used when minimizing pressure drop is a key concern.

• Strip Baffles: Made from flat metal strips positioned at an angle to the flow, strip baffles provide a balance between pressure drop and heat transfer efficiency.

• Grid Baffles: Constructed from a grid of bars, grid baffles allow fluid to pass through the openings in the grid. They are suitable for applications where maintaining a low-pressure drop is essential.

Conclusion

At Yuhong Holdings Group Co., Ltd., we are committed to delivering high-quality products tailored to meet our customers' needs. Our TP304L stainless steel single segmental baffles are engineered to provide superior performance in heat exchange applications. For more information about our products and services, please contact us.
