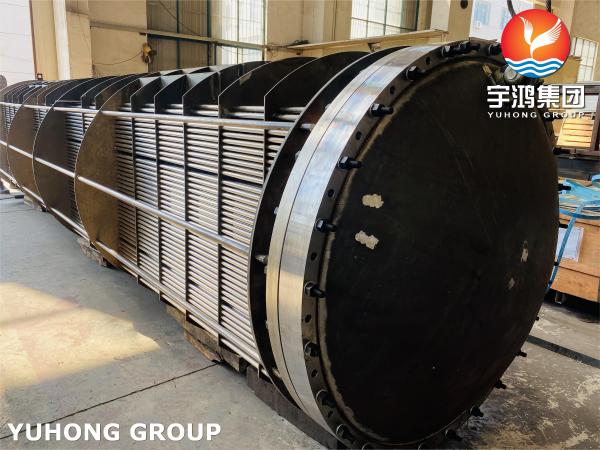

Desalination Brine Heater Tube Bundle: SB111 C71500 Seamless Tubes Assembled

What is Tube Bundle?

A tube bundle is a crucial component in various heat exchangers, especially in industries like power generation, chemical processing, and HVAC systems. It consists of a series of tubes assembled together in a specific arrangement, allowing fluids to pass through the tubes while another fluid flows over the outside, facilitating efficient heat transfer.

The design of tube bundles optimizes surface area and fluid dynamics, which helps enhance overall thermal performance while minimizing energy consumption. Commonly constructed from materials like stainless steel or copper, these bundles can withstand high pressures and temperatures, making them reliable for demanding applications.

In essence, tube bundles are integral to improving energy efficiency and operational effectiveness in various industrial processes.

Yuhong Group houses a 20000 square foot manufacturing space with a 100-ton bridge-crane capacity and highly skilled, custom fabricators and engineers, our factory's location is suitable for the transportation of large equipment and export equipment. Yuhong Group is capable of building vessels up to 5000mm in diameter and up to 35m in length and hold current A.S.M.E. Code Symbols “U”, and National Board Inspection Code (NBIC) “U” stamp.

C71500 Tube Bundle Specification:

Tube Material: ASME SB111 UNS C71500

Tube Size: 3/4''x0.065''x20FT

Floating Tube Sheet Material: ASME SB171 UNS C71500

Floating Tube Sheet Size: DIA:1460.5mm x THK:69.9mm

Stationary Tube Sheet Material: ASME SB171 UNS C71500

Stationary Tube Sheet Size: DIA:1465.2mm x THK:69.9mm

Baffle Material: ASME SB171 UNS C71500

Baffle Size: DIA:1414.8mm x THK:6.35mm

Central Baffle Size: DIA:1414.8mm x THK:12.7mm

Back Flange Material: ASME SA266 Gr.2

Rear Head Cover Dished Material: ASME SA516 Gr.70N

Equipment Capabilities:

-Tube to tubesheet automatic welding robot(TPWR-6)

-Laser/plasma controlled cutting machines

-CNC milling machines

-Tube sheet automatic welding machines(4 sets)

-Plasma arc welding machines(3 sets)

-Sandblasting equipment

-Rolling machine

-Helium leak detector from Japan

-Fischer Ferrite detector FMP30 from Gamany

-Niton XL2 X-ray PMI spectrometer from USA

-Roughness test machine from Japan

...

Our engineering and design team can provides the following services:

-Design & Engineering
-Manufacturing
-Maintenance & Repair
-Testing & Inspection
-Consulting Services
-Upgrades & Retrofits
-Spare Parts Supply
-Technical Support

...
