HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
Specifications
Brand Name :
YUHONG
Model Number :
Alloy Steel Fin Tube HFW Serrated Type
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
10000 pcs per month
Delivery Time :
Depends on order quantity
Packaging Details :
Iron frame wooden box
Type :
High Frequency Welded (HFW) Serrated Type
Base tube O.D. :
114.3mm/4"
Base tube THK. :
6.02mm/SCH40S
Base tube Length :
5020mm
Fin material :
SA387 Grade 12, 13CrMo4–5(1.7335),
FPI :
5
Description

HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG


An HRSG (Heat Recovery Steam Generator) comprises three core sections:

  1. ​​Economizer​​: Preheats feedwater using low-temperature exhaust gas (250–350°C), improving thermal efficiency.
  2. ​​Evaporator​​: Absorbs medium-grade heat (300–400°C) to convert water into saturated steam.
  3. ​​Superheater​​: Elevates steam temperature to 500–600°C using high-grade heat, ensuring dry, high-energy steam for turbines.

1.7335 13CrMo4–5 Alloy Steel Fins Equivalent Designations​

​​Standard​​ ​​Equivalent Grade​​
​​EN (Europe)​​ 1.7335 / 13CrMo4-5
​​ASTM (USA)​​ SA387 Grade 12
​​JIS (Japan)​​ SFVAF12


1.7335 13CrMo4–5 Alloy Steel Fins Chemical Composition (wt%)​

​​Element​​ ​​C​​ ​​Si​​ ​​Mn​​ ​​Cr​​ ​​Mo​​ ​​P (max)​​ ​​S (max)​​
​​13CrMo4-5​​ 0.08–0.18 0.15–0.35 0.40–0.70 1.00–1.50 0.45–0.65 0.025 0.015


1.7335 13CrMo4–5 Alloy Steel Fins Mechanical Properties​

Property​​ ​​Value​​
Tensile Strength (Rm) 440–640 MPa
Yield Strength (Rp0.2) ≥270 MPa
Elongation (A₅) ≥20%
Impact Energy (KV, 20°C) ≥40 J
Hardness (HB) ≤200


HRSG Tube Types, Parameters, and Functions​

Tube Type​​ ​​Key Parameters​​ ​​Function​​
​​Economizer​​ - OD: 25–50 mm
- Temp: 250–350°C
- Pressure: 5–15 MPa		 Preheats feedwater using exhaust gas, improving thermal efficiency.
​​Evaporator​​ - OD: 30–60 mm
- Temp: 300–400°C
- Pressure: 10–20 MPa		 Converts water to steam via heat absorption from flue gas.
​​Superheater​​ - OD: 25–50 mm
- Temp: 500–600°C
- Pressure: 15–25 MPa		 Increases steam temperature above saturation for turbine efficiency.

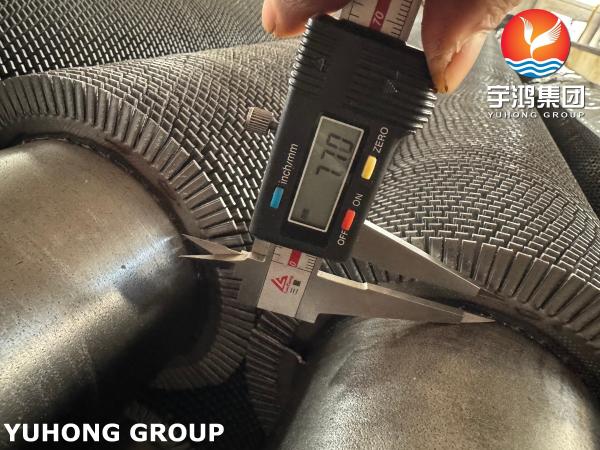

​​Serrated Fins​​ - Height: 12–25 mm
- Thickness: 1–2 mm
- FPI: 3–7		 Enhances heat transfer via turbulence and surface area (used in all sections).

HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG
