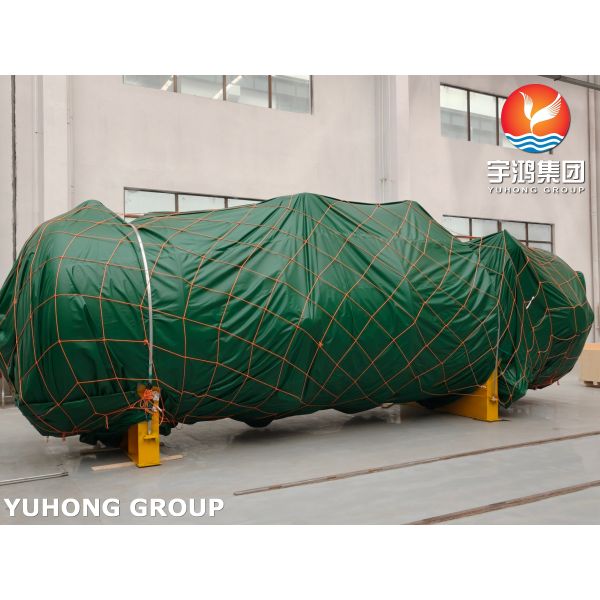

ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit
Specifications
Brand Name :
YUHONG
Model Number :
ASME Heat Exchangers
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China
MOQ :
1Set
Price :
1--1000000 USD
Payment Terms :
L/C,T/T
Supply Ability :
50SETS/MONTHS
Delivery Time :
45---150 DAYS
Packaging Details :
Pallet
code :
ASME VIII DIV.1, TEMA R, API660
Empty weight :
11800kgs
tube :
SA179
shell :
SA387 GR.11 CL.2
head :
SA387 GR.11 CL.2
tubesheet :
SA336 GR.F11 CL.2
Description

ASME Heat Exchangers for Diolefin Reactor Feed Service in Hydrotreating Unit

YUHONG​ provides ASME-certified #heatexchangers specifically engineered for diolefin reactor feed service in hydrotreating units. Our robust shell-and-tube designs ensure reliable operation under severe refinery conditions, helping #Brazilianclients like Petrobras enhance process stability and efficiency while meeting stringent safety standards.

Key specifications for heat exchangers

Material certification: Material with EN 10204 Type 3.2 Certificate

Design Codes & Standards: ASME VIII Div.1-2004 Ed. + 2006 Addenda, TEMA "R", API 660

Shell side:51kgf/cm²(g), 400°C

Post Weld Heat Treatment (P.W.H.T.): YES

Corrosion Allowance (mm): 3mm

Main parts list of ASME Heat Exchangers

ITEM NAME SPEC. MATERIAL/STANDARD
1 LIFTING LUG PLATE 200 x 25 THK x 350 LG. SA 387 Gr.11 Cl.2
2 RIVETS Ø8 DIA. STAINLESS STEEL
3 NAME PLATE SUPP. FROM PLATE 5 THK AS DWG. SA 387 Gr.11 Cl.2
4 NAME PLATE SEE SHEET 4 of 5 SA 240-304
5 PASS PARTITION FROM 13 THK PLATE AS DWG. -
6 PULLING EYE BOLT 7/8"-UNC -
7 PLUG 7/8"-UNC -
8 LIFTING EYE BOLT 1.1/2"-8UN -
9 PLUG 1.1/2"-8UN -
10 MAIN GASKET O.D. 1097 / I.D. 1067 x 3 THK SA 387 Gr.11 Cl.2
11 MAIN GASKET O.D. 1097 / I.D. 1067 x 3 THK SA 194 Gr.4
12 HEX. NUT 1.5/8"-8UN (H=D) SA 193 Gr.B16
13 STUD BOLT 1.5/8"-8UN L=690 -
14 TUBESHEET O.D. 1115 x 155 THK SA 336 Gr.F11 Cl.2
15 CHANNEL FLANGE O.D. 1350 / I.D. 1067 x 236 THK SA 336 Gr.F11 Cl.2
16 SHELL FLANGE O.D. 1350 / I.D. 1067 x 235 THK SA 336 Gr.F11 Cl.2
17 ELL. HEAD 2:1 I.D. 1067 x 27 THK M.A.F. SA 387 Gr.11 Cl.2
18 ELL. HEAD 2:1 I.D. 1067 x 22 THK M.A.F. SA 387 Gr.11 Cl.2
19 CHANNEL COURSE I.D. 1067 x 28 THK L=650 SA 387 Gr.11 Cl.2
20 SHELL COURSE I.D. 1067 x 22 THK L=2200 SA 387 Gr.11 Cl.2
21 SHELL COURSE I.D. 1067 x 22 THK L=2200 SA 387 Gr.11 Cl.2

Application except Hydrotreating Unit

Catalytic Reforming Unit

Crude Distillation Unit (CDU)

Fluid Catalytic Cracking (FCC) Unit

Delayed Coking Unit

Steam Methane Reforming (SMR) Unit
