Specifications
Place of Origin :
China
Shell material :
Carbon Steel SA-516 Grade 70
Supply Ability :
10SETS/MONTHS
Model Number :
FLOATING HEAD TYPE
Shell :
Carbon Steel SA-516 Grade 70
Payment Terms :
L/C,T/T
MOQ :
1Set
Radiography Testing :
100% Full Radiographic Examination (RT-1)
Certification :
ASME SEC. VIII DIV.1 ED.2010&TEMA "R" ED.2007
Delivery Time :
100-120DAYS
Tube :
Duplex Stainless Steel UNS S31803 / 2205
Channel :
Carbon Steel SA-516 Grade 70 + SS 316L Clad (3 mm min.)
Tube material :
Duplex Stainless Steel UNS S31803 / 2205
Brand Name :
YUHONG
Channel material :
Carbon Steel SA-516 Grade 70 + SS 316L Clad (3 mm min.)
Tube-to-Tubesheet joints :
Strength-welded with helium leak testing
Price :
10,000-500,000 USD
Code :
ASME SEC. VIII DIV.1 ED.2010&TEMA "R" ED.2007
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Tubesheet material :
SA-266 Class 2N + SS 316L Weld Overlay (10 mm min.)
Tubesheet :
SA-266 Class 2N + SS 316L Weld Overlay (10 mm min.)
Description
Shell and Tube Heat Exchanger ASME Section VIII Div. 1 TEMA Class C

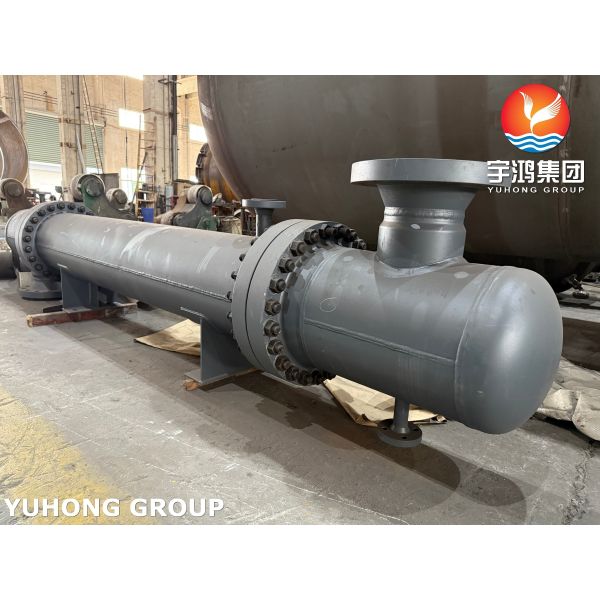

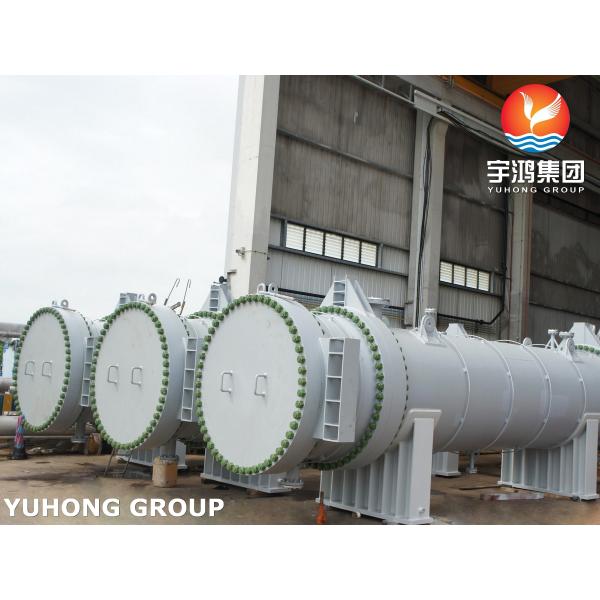

High-Pressure (HP) Superheater shell and tube heat exchanger fabricated for geothermal power generation installations. Operating as an ASME Section VIII Division 1 stamped TEMA heat exchanger, this unit processes n-Butane C.G. on the shell side and geothermal steam/brine on the tube side. Note: High-density finned tube bundle options can be integrated for gas-phase thermal recovery systems requiring expanded external surface area per project requisites.
Core Technical & Fabrication Features
  • ASME Code Stamped Structural Design: Fabricated and stamped in compliance with ASME Boiler and Pressure Vessel Code Section VIII, Division 1 and TEMA Class C criteria.
  • Corrosion-Resistant Cladding: Applies a 10 mm minimum SS 316L weld overlay across the SA-266 Class 2N tubesheet face and a 3 mm minimum SS 316L cladding layer on internal channel surfaces.
  • Tube-to-Tubesheet Fabrication: Includes strength-welded tube-to-tubesheet joints verified via pre-hydrostatic helium leak testing.
  • Mounting Integration: Equips fixed and sliding saddles with 3 mm SS 304 baseplates under sliding units to accommodate axial thermal expansion.
Quality Assurance & Testing Specifications
  • Radiographic Examination (RT): 100% full radiographic testing (RT-1) executed on all longitudinal and circumferential pressure-retaining butt welds.
  • Non-Destructive Testing (NDT): Ultrasonic Testing (UT), Liquid Penetrant Testing (PT), and Magnetic Particle Testing (MT) performed in accordance with ASME Code Section V.
  • Hydrostatic Pressure Test: Shop hydrostatic test executed at vendor-calculated pressures matching the highest requirement between ASME Code and project engineering standards.
  • Joint Integrity Testing: Strength-welded tube-to-tubesheet connections undergo helium leak testing prior to final hydrostatic pressure testing.
  • Material Certification: All pressure-retaining components, shell attachments, and lifting lugs furnished with EN 10204 Type 3.1 inspection certificates.

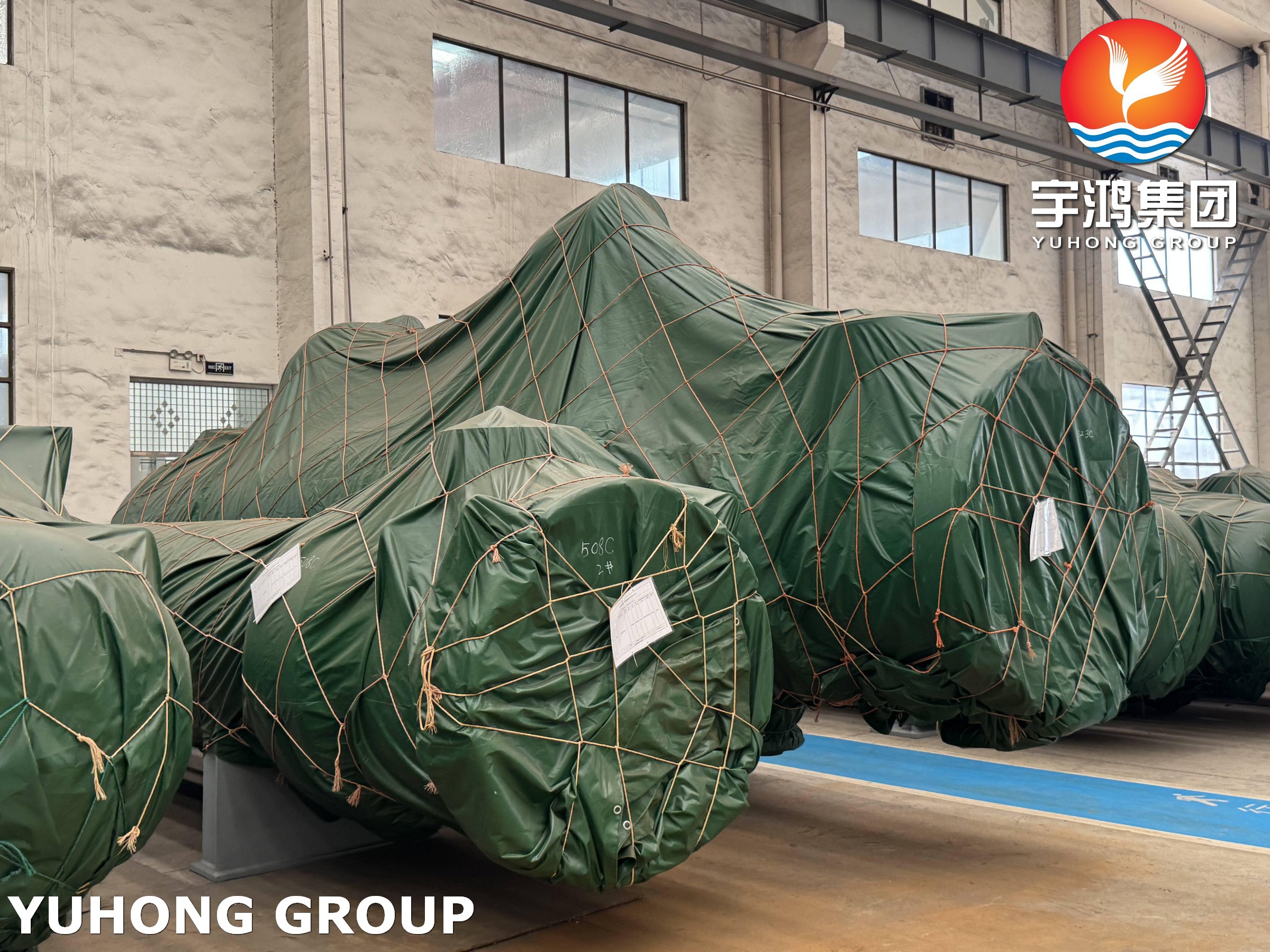

International Logistics & Market Support
  • Internal Protection: Internal pressure chambers cleaned, dried, and charged with positive nitrogen pressure prior to shipping.
  • Structural Transport Supports: Fabricated steel saddles fitted with 3 mm SS 304 sliding plates to prevent carbon steel contact corrosion during sea transit.
  • Export Documentation Compliance: Shipped with complete ASME Form U-1A reports, EN 10204 3.1 MTRs, full NDE dossiers, and pre-approved SONCAP / Form M documentation for international project customs clearance.

Engineering Support & Global Project Services:

For custom ASME design verification, HTRI thermal calculations, or urgent RFQ processing, our lead sales engineer Max Zhang (Yuhong Group) provides direct technical assistance.

  • Direct Line / WhatsApp: +86-153-8196-4640

  • Engineering Mail: max [at] steelseamlesspipe [dot] com

  • Official Spec Portal: www [dot] tema-heatexchanger [dot] com
