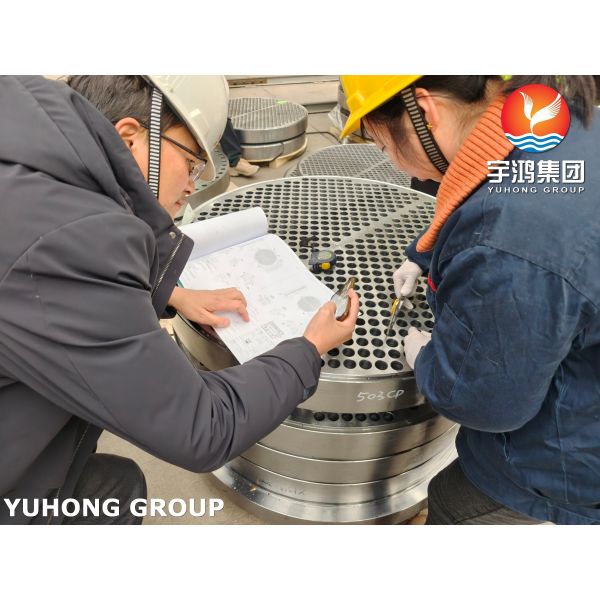

Knowledge Module: Tube Sheet Material Selection — Why is SA105 Commonly Used?

SA105 is a forged carbon steel material widely used in pressure vessels and heat exchanger components. Its advantages as a tube sheet material include:

Excellent Mechanical Properties: The forging process gives it a dense metallic structure, providing good strength, toughness, and fatigue resistance, enabling it to withstand the stress of tube expansion or welding and pressure fluctuations during operation.

Excellent Machinability: Compared to cast materials, SA105 is easier to drill, mill, and turn, allowing for high-precision machining of tube holes and ensuring a tight and airtight connection between the tubes and the tube sheet.

Economy and Wide Applicability: As a standardized forged material, SA105 achieves a good balance between cost and performance, making it a reliable and economical choice for tube sheets operating in water, oil, steam, and other non-corrosive media conditions.

Core Advantages and Value

• Ready-to-install, reducing downtime: Manufactured according to original dimensions for quick installation, minimizing production losses caused by equipment shutdowns to the greatest extent.
• Optimized thermohydraulic performance: Tube bundle layout and baffle design can be optimized based on the original equipment or specific working conditions, ensuring efficient heat transfer and reasonable pressure drop.
• Flexible customization services: We can customize the number of tubes, arrangement pattern, pitch, length of the tube bundle and baffle design according to the drawings or samples provided by you.
• Strict quality control: Material Test Certificates (MTC) are provided for key components. Critical processes such as tube end expansion/welding comply with strict technical specifications to ensure reliability during long-term operation.

Typical Application Fields

• Heating, Ventilation and Air Conditioning (HVAC) systems: Chillers, heat recovery units.
• Industrial cooling systems: Lubricating oil coolers, transformer oil coolers, air compressor aftercoolers.
• General industrial processes: Process water heating/cooling, low-pressure steam condensation.
• Power industry: Various auxiliary coolers.
