Description

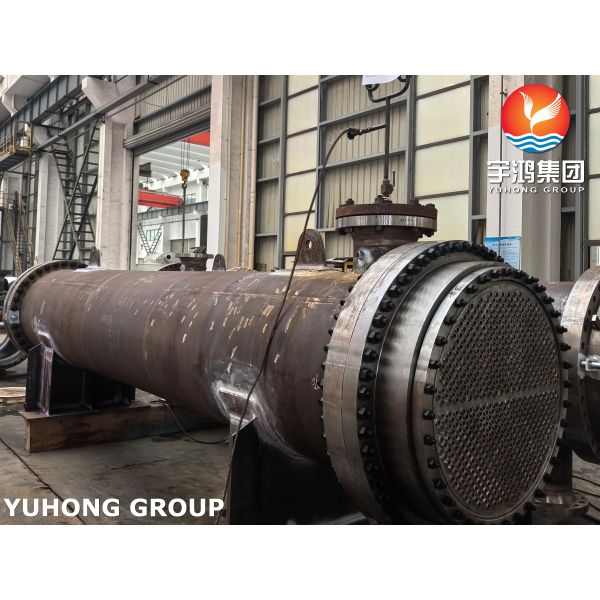

SA213 T2 Crude Oil Top P.A. Heat Exchanger for Crude Oil Distillation Unit with LPG Unit

YUHONG heat exchanger is a critical component of the crude oil distillation unit connected to the liquefied petroleum gas (LPG) facility, designed to facilitate efficient heat transfer between process fluids. The unit is manufactured in strict accordance with the 2015 edition of the American Society of Mechanical Engineers (ASME) Code, Section VIII, Part 1, and meets the highest safety and quality standards for pressure vessel applications. Its design incorporates advanced engineering specifications to ensure reliable operation under the demanding conditions of crude oil processing.

ASME Material Designation Corrosion Allowance(mm)
Shell SA 516 Gr.70
Heads SA 516 Gr.70

Nozzles SA 106 Gr. B

Channel SA 516 Gr. 70

Baffles SA 516 Gr.70 SA 105

Tubes SA 213 T2

Tubesheet SA 336 F12

Supports SA 516 Gr. 60
Flanges & Components SA105

Design Parameters & ASME Code Compliance

Type of Exchanger:​ AES-HORZ (Horizontal Air-Cooled Exchanger)
Nominal Size:​ Φ1400 I.D. x 6100 mm
Tube Size:​ Φ25.4 x 2.11 mm
Tube Pattern:​ 45°
Number of Tubes:​ 1198 per shell
Length of Tube Bundle:​ 6100 mm
Pitch:​ 31.75 mm
Heat Duty:​ 11.16 MM kcal/hr
Surface Area (Gross):​ 583.1 m² per shell

Certifications & Documentation​

This heat exchanger is delivered with full documentation, including:
ASME U-Stamp Certification​ (upon request)
Material Test Reports (MTRs)​ for all components
Hydrostatic Test Certificate​
NDT Inspection Reports​ (RT, UT, PT)
Operational Manual​ with maintenance guidelines
