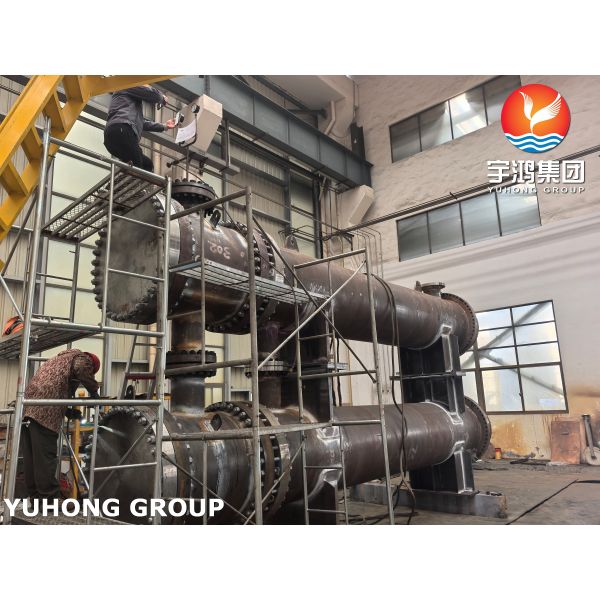

Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
Specifications
Brand Name :
YUHONG
Model Number :
Stack Type Heat Exchanger
Certification :
ASME VIII Div. 1, PED/97/23/CE, TEMA R, TEMA C, TEMA B
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on drawing
Payment Terms :
T/T,L/C,D/A
Supply Ability :
60 SETS/MONTH
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
shell :
ASME SA387 GR.5 CL.2
heads :
ASME SA387 GR.5 CL.2
nozzles :
ASME SA335 P5
channel :
ASME SA387 GR.5 CL.2
baffles :
ASME SA387 GR.5 CL.2
flange :
ASME SA182 F5
tubesheet :
ASME SA336 F5A
supports :
ASME SA516 GR.60
Description

Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers

YUHONG Stacked Shell-and-Tube Heat Exchanger designed for LPG (Liquefied Petroleum Gas) Units​ and Boiler Systems. Compliant with international standards (ASME, TEMA) for reliable heat transfer in high-pressure, corrosive hydrocarbon environments.

Technical specifications (Pressure Space)​

Parameter​
Shell Side​
Tube Side​
Max. Allowable Working Pressure (G)
25 kgf/cm² (2.45 MPa) at 275°C
37.5 kgf/cm² (3.67 MPa) at 225°C
Operating Pressure (G)
4.9 kgf/cm² (0.47 MPa) at 247°C
24.6 kgf/cm² (2.4 MPa) at 199°C
Design Pressure (G)
25 kgf/cm² (2.45 MPa)
37.5 kgf/cm² (3.67 MPa)
Design Temperature
275°C
225°C
Min. Design Metal Temperature
+1°C
+1°C
Hydrostatic Test Pressure (Horizontal)
33.96 kgf/cm² (3.33 MPa)
48.74 kgf/cm² (4.78 MPa)
Pneumatic Test Pressure (Collars)
0.6 kgf/cm² (0.06 MPa)
0.6 kgf/cm² (0.06 MPa)
Min. Pressure Test Metal Temperature
5°C
5°C
Fluid Name
Light Gas Oil
Desalted Crude Oil
Toxicity
No/NE
No/NE
Flammable
Yes/ANO
Yes/ANO
Explosive
Yes/ANO
Yes/ANO
Corrosion Allowance
3 mm
3 mm
Volume of Pressure Space
3.217 m³
1.973 m³

Painting System​

Description​
Surface Preparation​
Primer Coat​
Outside surface of shell side (including nozzles) – Paint System 3
Sa 2 1/2 (ISO 8501-1)
INTERZINC 22: 1 × 75 μm, 1 × 25 m²
Outside surface of saddles – Paint System 1
Sa 2 1/2 (ISO 8501-1)

INTERCURE 200: 1 × 100 μm, 1 × 8 m²

Material & Application​

  • Tube Material: ASME SA213 T5 (for high-pressure, high-temperature LPG/boiler applications)
  • Application: Optimized for LPG Units (light gas oil) and Boiler Systems (desalted crude oil)​

Welding:

  • Weld Joint Efficiency (Longitudinal/Circumferential): 1
  • Acceptance Criteria (Defects): UW 51 (ASME)
  • Welding Procedure Specification: ASME Sec. IX
  • Welder Qualification: ASME Sec. IX
​Stack Type Heat Exchanger ASME SA213 T5 Tubes for LPG Unit and Boilers
