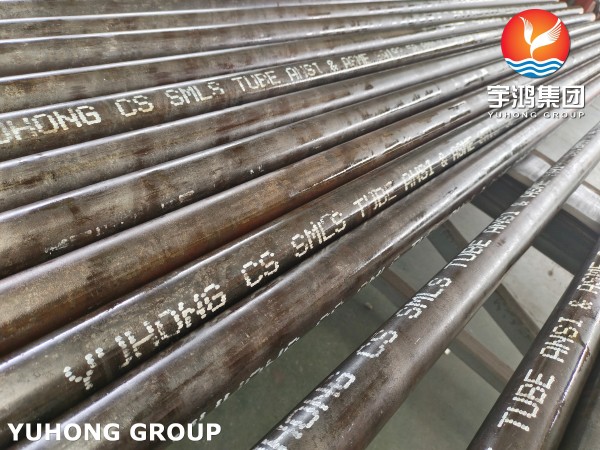

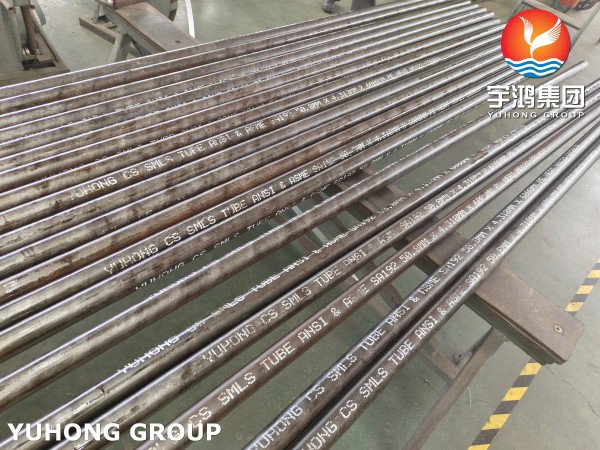

ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
ASME SA192 Seamless Carbon Steel Pipe High Strength Boiler Tube for Overheater And Water Wall
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA192
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity
Packaging Details :
Steel frame wooden case with plastic cap
Standard :
ASME SA192
Material Grade :
Carbon Steel
Form :
Seamless Tube
Diameter :
12.7 ~ 127 mm (1/2 ~ 5 in)
Wall Thickness :
0.9 ~ 12.7 mm (0.035 ~ 0.500 in)
Applications :
Boilers, heat exchangers, superheaters, HRSG
Description
ASME SA209 / SA209M Gr.T1A Alloy Steel Seamless Tube Boiler Tube For Boiler,Superheater,Reheater

ASME SA192 is a type of seamless carbon steel boiler tube manufactured according to ASME standards for high-pressure applications. Due to its excellent thermal conductivity and weldability, it is widely used in thermal engineering.

This standard is equivalent to the ASTM A192 standard of the American Society for Testing and Materials.

In engineering applications, SA192 seamless steel tubes are key pressure-bearing components in high-pressure boiler systems, primarily used in the manufacture of heating surface piping such as water-cooled walls, superheaters, reheaters, economizers, and headers.

Chemical Composition (Ladle Analysis)
Element Composition (wt%)
Carbon (C) 0.06 – 0.18
Manganese (Mn) 0.27 – 0.63
Silicon (Si) ≤ 0.25
Phosphorus (P) ≤ 0.035
Sulfur (S) ≤ 0.035

Mechanical Properties
Property Value (min.)
Tensile Strength ≥ 325 MPa (47.1 ksi)
Yield Strength (0.5% offset) ≥ 180 MPa (26.1 ksi)
Elongation (in 2 in / 50 mm) ≥ 35%
Hardness (Rockwell B) ≤ 77 HRB
Hardness (Brinell) ≤ 137 HB

Application:

  • Power Industry: Primarily used in boiler systems of various power plants, including thermal power plants, combined heat and power plants, and conventional islands of nuclear power plants.
  • Petrochemical Industry: Used in heat exchangers, condensers, reboilers, and high-temperature, high-pressure process piping in petroleum refining and chemical production processes.
  • General Industry and Manufacturing: As a key component of boilers, heat exchangers, and pressure pipelines.
  • Nuclear Power Sector: Applied to boilers and heat exchange equipment in the conventional island of nuclear power plants.
  • Paper Industry: As an energy center in the pulping and papermaking process, used in equipment such as recovery boilers and power boilers.
