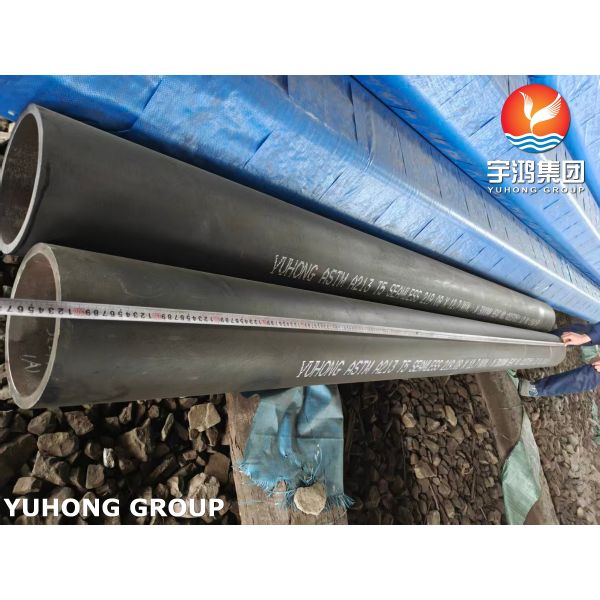

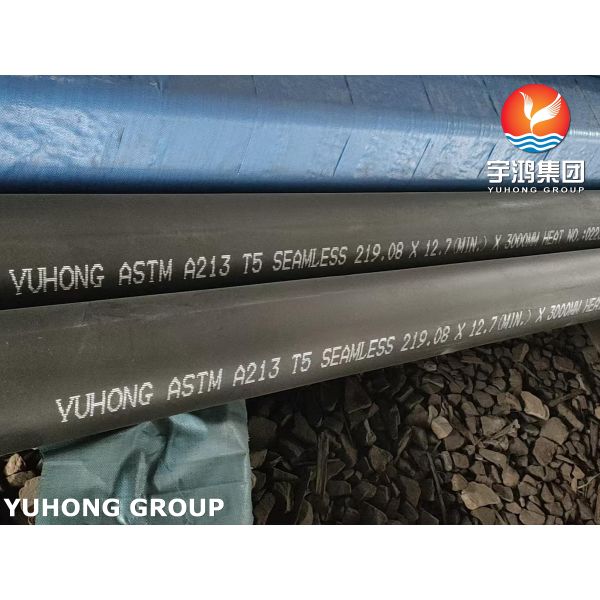

ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 / ASME SA213 T5
Certification :
ISO 9001/TUV/PED
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS / month
Delivery Time :
Depends on order quantity
Packaging Details :
Steel frame wooden case with plastic cap
Boiler Tube Standard :
ASME SA213 , ASTM A213
Alloy Type :
Alloy Steel
Form :
Seamless tube
Diameter :
3.18-152.4mm
Wall Thickness :
0.41mm - 25.4mm
Applications :
Boilers, heat exchangers, superheaters, HRSG
Ends :
Bevled End, Plain End, Thread End
Description

ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel

ASTM A213 T5 is a seamless ferritic alloy steel tube conforming to ASTM A213/A213M standards, specifically designed for high-temperature, high-pressure applications such as boilers, superheaters, and heat exchangers.
This material belongs to the low-alloy high-strength steel category, with chromium and molybdenum as its main alloying elements, giving it excellent oxidation resistance and creep resistance at high temperatures.

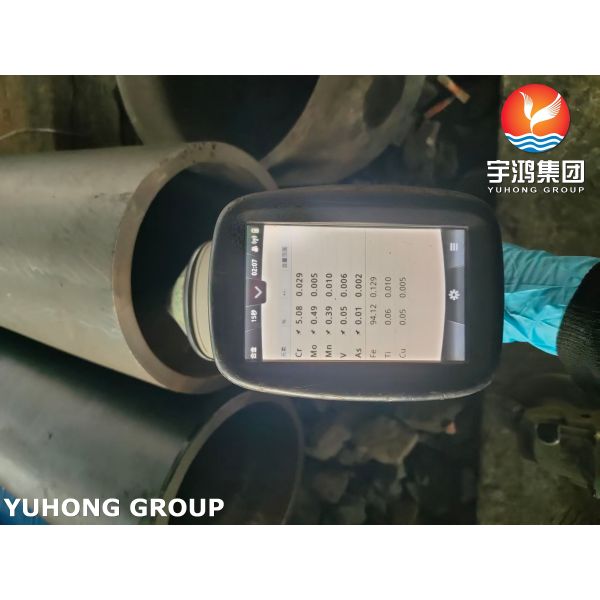

Chemical Composition (%)
Element T5
Carbon (C) ≤ 0.15
Manganese (Mn) 0.30 – 0.60
Phosphorus (P) ≤ 0.025
Sulfur (S) ≤ 0.025
Silicon (Si) ≤ 0.50
Chromium (Cr) 4.00 – 6.00
Molybdenum (Mo) 0.45 – 0.65

Mechanical Properties (Room Temperature)
Property T5
Tensile Strength, Rm (MPa) ≥ 415
Yield Strength, Rp0.2 (MPa) ≥ 205
Elongation, A (%) ≥ 30
Hardness (HB) ≤ 163

Applications and Advantages of T5 Material:

  • Power Generation:Boiler tubes, superheater tubes, reheater tubes, steam transmission pipelines (up to 540°C), and Heat Recovery Steam Generators (HRSG) .
  • Petrochemical Industry:Heat exchangers, reactor vessels, furnace tubes (e.g., cracking furnaces, fired heaters), piping systems for high-pressure/high-temperature fluids .
  • Industrial Equipment:High-temperature and high-pressure heat exchangers, radiation section furnace tubes in industrial heating furnaces .
  • Pipelines:Transportation of petroleum and natural gas .

  • Excellent High-Temperature Performance
  • Good Oxidation and Corrosion Resistance
  • Reliable Mechanical Strength
  • Good Weldability
  • Cost-Effectiveness
