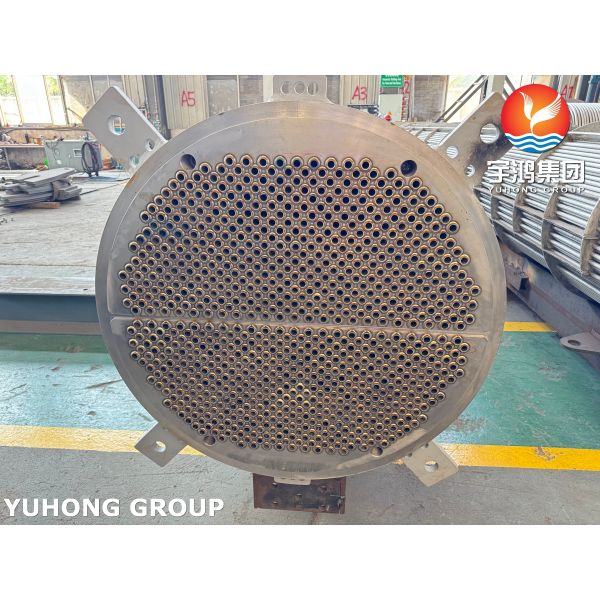

ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
ASME SA213 TP316L Stainless Steel Floating Head Heat Exchanger Tube Bundle Corrosion Resistant Shell & Tube Replacement Core
Specifications
Brand Name :
YUHONG
Model Number :
FHE
Certification :
ASME, TEMA
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on Detailed Drawings
Payment Terms :
T/T,L/C
Supply Ability :
60 Sets/Month
Delivery Time :
30-80 Days
Packaging Details :
Ply-wooden Case /Iron Case/Rain cover and mesh bag
Description
ASME SA213 TP316L Stainless Steel Floating Heat Exchanger Tube Bundle | Corrosion Resistant Shell & Tube Replacement Core
Yuhong Holding Group Co., Ltd.is a leading manufacturer and global supplier of high-performance thermal and pressure equipment. Through our dedicated platform, TEMA Heat Exchanger, we provide custom-engineered shell & tube heat exchangers, pressure vessels, and a comprehensive inventory of precision replacement components, including tube bundles, U-bend tubes, finned tubes, and all essential parts (tubesheets, baffles, heads, nozzles).
This ASME SA213 TP316L Stainless Steel tube bundle serves as a high-performance, drop-in replacement core for shell and tube heat exchangers. Manufactured from low-carbon 316L stainless steel, it delivers superior resistance to a wide range of corrosive media, including chlorides and organic acids, making it a versatile and durable choice for demanding process conditions.

Technical Specifications & Configuration



Component Material Standard Key Characteristics & Benefit
Heat Exchanger Tubes ASME SA213 TP316L Seamless, low-carbon stainless steel for excellent corrosion resistance and formability.
Tubesheet Typical: SA182 F316L Forged stainless steel, ensuring compatible welding and thermal expansion with tubes.
Baffles Typical: SA240 316L Optimizes fluid flow (segmental, helical, etc.) for enhanced heat transfer and tube support.
Tie Rods & Spacers Stainless Steel (316) Secures the baffle stack with precise alignment and corrosion resistance.
Side Stream Nozzles Typical: SA182 F316L Allows for inlet/outlet of shell-side or tube-side fluids.

Technical Highlights

    • Superior Corrosion Defense: The TP316L (UNS S31603) alloy, with its low carbon content and molybdenum addition, offers enhanced protection against pitting and crevice corrosion in chloride-bearing environments compared to standard 304/304L grades.

    • Reliable Tube-to-Tubesheet Joints: Our precise expansion and welding techniques create leak-proof connections between the SA213 tubes and the F316L tubesheet, ensuring long-term integrity under thermal cycling and pressure fluctuations.

    • Optimized Thermal Performance: Each bundle is designed with calculated baffle spacing and tube layout to maximize heat transfer efficiency and minimize pressure drop for your specific service conditions.

Key Advantages & Applications

  • Extended Service Life: The corrosion-resistant properties of 316L stainless steel significantly reduce degradation, lowering lifecycle costs and unplanned downtime.

  • Maintenance Efficiency: As a direct replacement core, installation is straightforward, quickly restoring your heat exchanger to optimal operating capacity.

  • Broad Industry Utility: Ideal for chemical processing, pharmaceutical production, food and beverage, marine applications, and moderate chloride-containing cooling water systems.

Request a Custom Quote
Upgrade your heat exchange reliability with a precision-built ASME SA213 TP316L tube bundle. Contact Yuhong Holding Group today via jimmy@steelseamlesspipe.com for a competitive quote, technical consultation, or to discuss your specific project needs.
