Specifications
Brand Name :
YUHONG
Model Number :
SHELL AND TUBE HEAT EXCHANGER
Certification :
ASME VIII Div. 1, PED/97/23/CE, TEMA R, TEMA C, TEMA B
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on drawing
Payment Terms :
T/T, L/C, D/A
Supply Ability :
60 SETS/MONTH
Delivery Time :
20-80 days

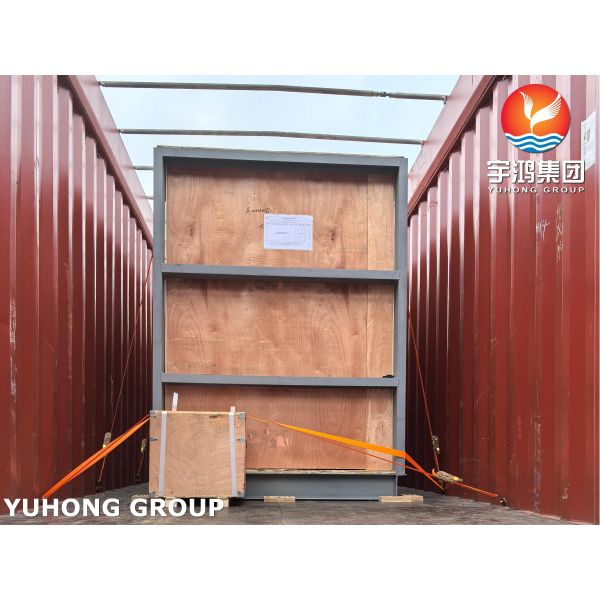

Packaging Details :
According to client requirements
Design pressure :
25bar/20bar
Design tempressure :
535/462degree
PWHT :
Yes
Impact test :
Exempted per UCS-66
Seismic load :
UBC-1994
Wind load :
UBC-1994
Description

ASME Certified Shell and Tube Heat Exchanger with Bellows Expansion Joints for Heat Exchanger Device

Our company designs and manufactures large fixed tube sheet shell-and-tube heat exchangers. The expansion joint, a critical flexible component, is specifically engineered to address the most fundamental challenge in high-temperature, high-pressure environments—significant thermal expansion differences.


ASME Certified Shell and Tube Heat Exchanger with Bellows Expansion Joints​ Bill of Materials

Part No. Drawing / Std. No. Name Material Remarks
22 A2554-00 Blind Flange Lug SA-387 Gr.11 CL1
21 A2554-01 Bundle Lug SA-387 Gr.11 CL1
20 Channel Shell (I.D. 1330x24, L=1230) SA-387 Gr.11 CL1
19 Jacket Closure (O.D. 2060 / I.D. 1422, t=115) SA-182 F11 CL2
18 Jacket Shell (I.D. 1930x65, L=1010) SA-387 Gr.11 CL1
17 ASME B18.22M Washer, 1 7/8" 304 F
16 ASME B18.2.4.6M Heavy Hex Nut, 1 7/8" SA-194 Gr.4 Zn-Plating
15 ASME B18.31.1M Continuous-Thread Stud SA-193 Gr.B16 Zn-Plating
14 A2554-01 Shell Flange 4 SA-182 F11 CL2
13 ASME B16.21-2021 Flat Gasket SOLID FLAT 4-6Cr
12 A2554-01 Shell Flange 3 SA-182 F11 CL2
11 A2554-00 Tube Bundle COMPONENT
10 Shell Barrel 2 (I.D. 1330x45, L=12100) SA-387 Gr.11 CL1
9 A2554-00 Jackscrew, 3/4"-10 UNC, L=200 SA-193 Gr.B7 Zn-Plating
8 ASME B18.22M Washer, 1 1/8" 304
7 ASME B18.2.4.6M Heavy Hex Nut, 1 1/8" SA-194 Gr.2H Zn-Plating
6 ASME B18.31.1M Continuous-Thread Stud SA-193 Gr.B7 Zn-Plating
5 A2554-01 Shell Cover Flange 2 SA-182 F11 CL2
4 ASME B16.21-2021 Flat Gasket SOLID FLAT IRON
3 A2554-01 Shell Cover Flange 1 SA-182 F11 CL2
2 Shell Cover Barrel (I.D. 1579x24, L=1600) SA-516 Gr.70
1 2:1 Elliptical Head (I.D. 1579x24(min20)) SA-516 Gr.70

Bellows Expansion Joints for Heat Exchanger - Device​-Critical Design & Selection Considerations:

Pressure Rating

Temperature Rating

Movement Capacity

Fatigue Life

Material Compatibility

Material of ​Bellows Expansion Joints for Heat Exchanger

SS304 equivalent to 0CR18NI9

SS304L equivalent to 0CR19NI10

SS316 equivalent to 0CR17NI12MO2

SS316L equivalent to 0CR17NI14MO2

SS321 equivalent to 06CR18NI11TI

INCONEL600 equivalent to GH600
