Specifications
Brand Name :
YUHONG
Model Number :
Shell and Tube Heat Exchanger
Certification :
NB PED ASME GB
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
negotiable
Delivery Time :
30-100 DAYS
Packaging Details :
Sea Worthy Package
Thermal Design :
HTRI software calculated
Design Codes :
API 660, ASME Section VIII, Div. 1
Shelldiameter :
Varies from 2 inches to 72 inches
Operatingpressure :
Up to 2500 psi
Condenser Type :
Vertical condenser, Horizontal condenser
Tube Bundle :
U BEND TUBE, Straight tube
Corrosion Resistance :
High, depending on material selection
Expansion Joint :
Bellows-type optional
Tube Diameter :
Typically 12.7 mm to 25.4 mm
Operating Pressure :
Up to 2500 psi
Description
Heat Exchanger Tube Bundle | High-Performance Tube Bundles for Shell and Tube Heat Exchangers
Shell and Tube Heat Exchanger | High-Efficiency Industrial Heat Transfer Solutions

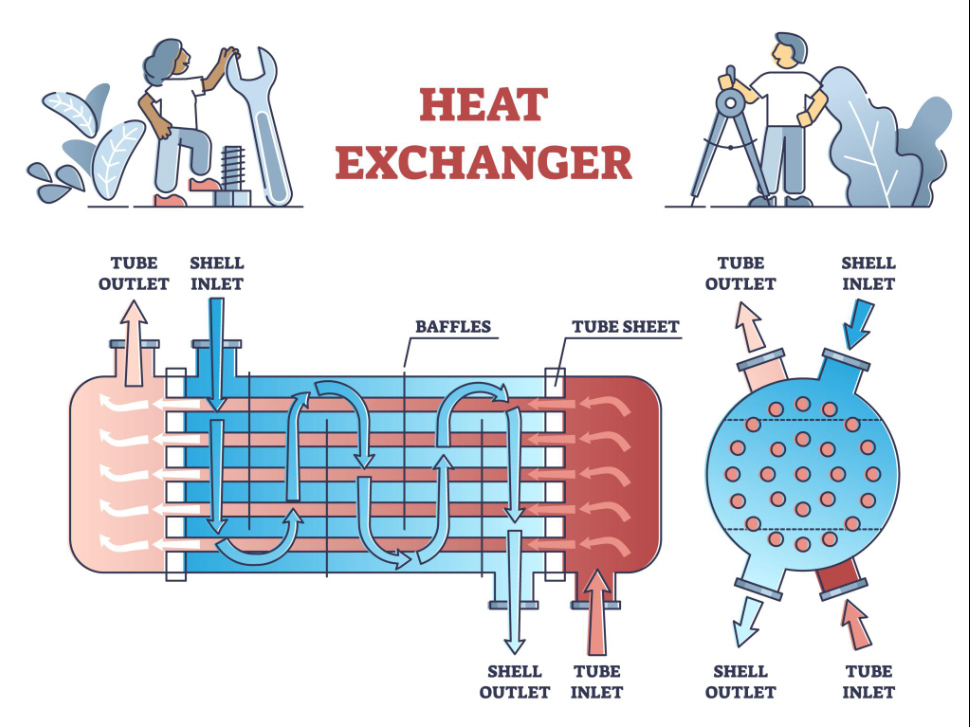

What is a Shell and Tube Heat Exchanger?
Heat Exchanger Tube Bundle | High-Performance Tube Bundles for Shell and Tube Heat Exchangers
A shell and tube heat exchanger is one of the most widely used heat transfer devices in industrial applications. It consists of a series of tubes (tube bundle) enclosed within a cylindrical shell. One fluid flows through the tubes while another flows across the tubes inside the shell, allowing efficient heat exchange without direct contact. This design ensures high thermal efficiency, mechanical strength, and adaptability to high pressure and temperature conditions, making it ideal for demanding industrial environments.
Key Features & Advantages
High Heat Transfer Efficiency
Optimized tube layout and advanced surface enhancement techniques ensure maximum heat transfer performance, even under heavy-duty operating conditions.
Robust & Durable Construction
Manufactured using high-grade materials such as:
  • Carbon Steel
  • Stainless Steel (SS304 / SS316)
  • Duplex Steel
to ensure long service life and corrosion resistance.
Customizable Design
We offer tailored solutions based on your project requirements:
  • Tube diameter and length
  • Number of passes (single-pass / multi-pass)
  • Baffle type and spacing
  • Horizontal or vertical configuration
Easy Maintenance & Cleaning
The modular structure allows:
  • Easy disassembly
  • Mechanical or chemical cleaning
  • Reduced downtime
Wide Application Range
Suitable for:
  • High-pressure systems
  • High-temperature environments
  • Corrosive fluids

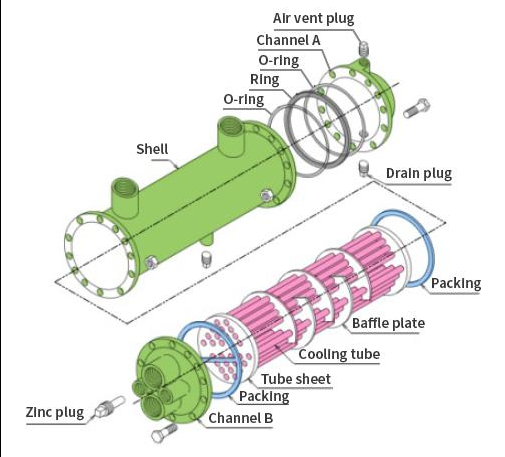

Working Principle
Heat Exchanger Tube Bundle | High-Performance Tube Bundles for Shell and Tube Heat Exchangers
The working principle is based on indirect heat transfer:
  • Tube Side Fluid: flows inside the tubes
  • Shell Side Fluid: flows over the tube bundle within the shell
  • Heat is transferred through the tube walls
Depending on the design, the flow can be:
  • Counter-flow (most efficient)
  • Parallel flow
  • Cross flow
Technical Specifications
Parameter Specification
Heat Transfer Area 1 - 1000 m²
Design Pressure Up to 10 MPa
Design Temperature -20°C to 450°C
Tube Material Copper / SS / Alloy Steel
Tube Diameter 6mm - 50mm
Standards ASME, TEMA, API
Customization available upon request.
Applications
Heat Exchanger Tube Bundle | High-Performance Tube Bundles for Shell and Tube Heat Exchangers
Our shell and tube heat exchangers are widely used in:
  • Oil & Gas Industry
    Crude oil heating, cooling, and condensation
  • Chemical Processing
    Reactor temperature control, solvent recovery
  • Power Generation
    Condensers and feedwater heaters
  • Food & Beverage
    Pasteurization and temperature control
  • HVAC Systems
    Chilled water and refrigerant systems
Why Choose Us?
  • ✅ 10+ years of manufacturing experience
  • ✅ Strict quality control (ISO certified production)
  • ✅ Engineering support & thermal design calculation
  • ✅ Fast delivery & global export capability
  • ✅ OEM & ODM services available
Get a Custom Quote Today
Looking for a reliable shell and tube heat exchanger manufacturer? Contact our engineering team to get:
  • Free technical consultation
  • Custom design proposal
  • Competitive pricing
