Specifications
Model Number :
KP3542-AH0650P20PS/C
Certification :
CE UL
MOQ :
1
Price :
1 USD
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
cartons
Output Type :
Single Phase
Utility Frequency :
45Hz to 65Hz
Maximum Utility Charging Current :
60A
Inverter Output Voltage :
220/230VAC±3%
Output Frequency :
50/60±0.2%
Size :
534mm × 300mm × 163mm
Weight :
12.7Kg
Inverter Rated Power :
3500W
MPPT Voltage Range :
85V to 400V
Description

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

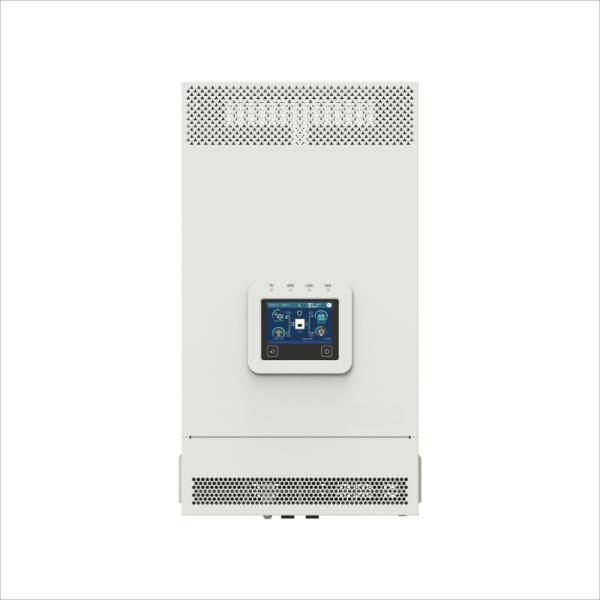

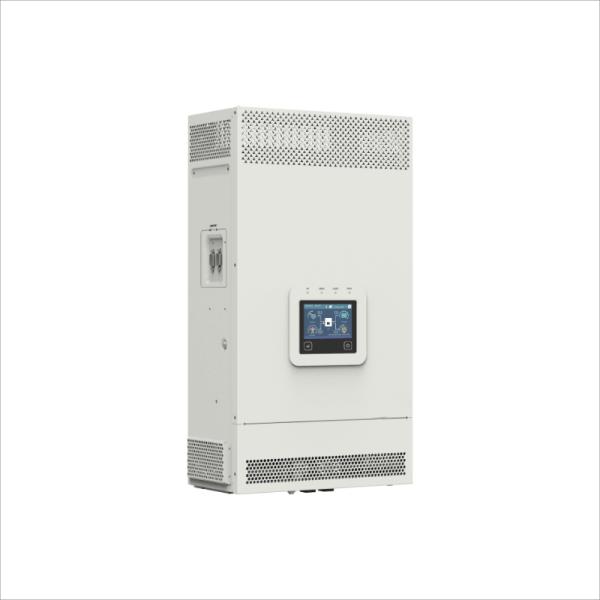

Introducing the KP Series Inverter/Charger, a reliable inverter charger engineered to deliver dependable power from 3500 to 5500 watts for a broad range of applications, including residential backup and off-grid energy systems. This series supports a variety of charging sources—solar, utility, and oil generators—with advanced energy management capabilities.

The ability to operate in parallel, both in single and three-phase setups, makes it highly adaptable and scalable for complex power needs. Its pure sine wave output ensures the safe operation of sensitive electronics, while the comprehensive electronic protection system guards against power irregularities.


Specification

Model

KP3542-AH0650P20PS/C

KP3542-AH0650P20NS/C

KP5542-AH1050P20PD/C

KP5542-AH1050P20ND/C

KP5542-AH1050P20PS/C

KP5542-AH1050P20NS/C


Utility input


Utility Input Voltage

176VAC to 264VAC (Default)
90VAC to 285VAC (Configurable)


Utility Input Frequency

45Hz to 65Hz


Maximum Utility Charging Current

60A

100A


Switch Response Time

Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms


Inverter output


Inverter Rated Power (@30℃)

3500W

5500W


3-second Transient Surge Output Power

7000W

8500W


Inverter Output Voltage

220/230VAC±3%


Inverter Frequency

50/60Hz±0.2%


Output Voltage Waveform

Pure sine wave


Load Power Factor

0.2－1(VA ≤ Rated output power)


THDu (Total Harmonic Voltage Distortion)

≤3% (48V resistive load)


Maximum Load Efficiency

92%


Maximum Inverter Efficiency

94%


Parallel Function

Yes, 12 units in standard, 16 units at most

NO

Yes, 12 units in standard, 16 units at most

NO

Yes, 12 units in standard, 16 units at most

NO

Solar controller


PV Maximum Open-circuit Voltage

500V (At minimum operating environment temperature)
440V (At 25℃)


MPPT Voltage Range

85V to 400V


Number of MPPTs

1

2

1


PV Maximum Input Current

One way, 16A

Two ways, 2 x 16A

One way, 16A


PV Maximum Short-circuit Current

One way, 18A

Two ways, 2 x 18A

One way, 18A


PV Maximum Input Power

4000W

2 × 3000W

5000W


PV Maximum Charging Current

60A

100A

100A


MPPT Maximum efficiency

≥99.5%


Battery


Battery Rated Voltage

48VDC


Battery Work Voltage Range

43.2VDC to 64.0VDC


Battery Maximum Charging Current

60A

100A

100A


Others


No-load Losses

≤0.8A

≤1.1A

≤1.1A


Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input


Standby Current

≤0.6A

≤0.8A

≤0.8A


Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input


Communication with BMS

RS485


Communication with Portal

RS485


Work Temperature Range

-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)


Storage Temperature Range

-25℃ to +60℃


Enclosure

IP20 (With ANTI-DUST KIT)


Relative Humidity

< 95% (N.C.)


Altitude

<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)


Certifications and Standards

IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368


Mechanical parameters


Dimension (Length x Width x Height)

534mm × 300mm × 163mm

590mm × 300mm × 163mm

590mm × 300mm × 163mm


Mounting size (Length x Width)

512mm × 245mm

568mm × 245mm

568mm × 245mm


Mounting hole size

Φ9mm/Φ10mm

Φ9mm/Φ10mm

Φ9mm/Φ10mm


Net Weight

12.7Kg

12.2Kg

15.5Kg

14.7Kg

14.8Kg

14.2Kg



Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System


Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System


Hybrid Solar Off-Grid System 5kw 10kw 15kw 20kw with Lithium Battery 5kwh 10kwh Complete Solar Panel System

Solutions

We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.


FAQ :

1. How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.


2. What is your minimum order quantity?

A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.


3. Can you introduce your company?

A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.


4. What are the advantages of your company?

A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.


5. Can i send samples?Report it to me along with the price?

A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.


6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.


7 What about the quality ?

A:100% original with new package. we will test each item before posted to make sure each item with good quality.


8 How many months for guarantee ?

A: 1 year quality guarantee


9 How to deal with any inferior -quality goods ?

A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
