Specifications
Model Number :
KP3542-AH0650P20NS/C
Certification :
CE UL
MOQ :
1
Price :
1 USD
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
cartons
Output Type :
Single Phase
Utility Frequency :
45Hz to 65Hz
Maximum Utility Charging Current :
60A
Inverter Output Voltage :
220/230VAC±3%
Output Frequency :
50/60±0.2%
Size :
534mm × 300mm × 163mm
Weight :
12.2Kg
Inverter Rated Power :
3500W
MPPT Voltage Range :
85V to 400V
Description

15KW 17KW 20KW Solar Energy System with 6 Set 4.8kwh Off Grid Hybrid Solar Power Inverter

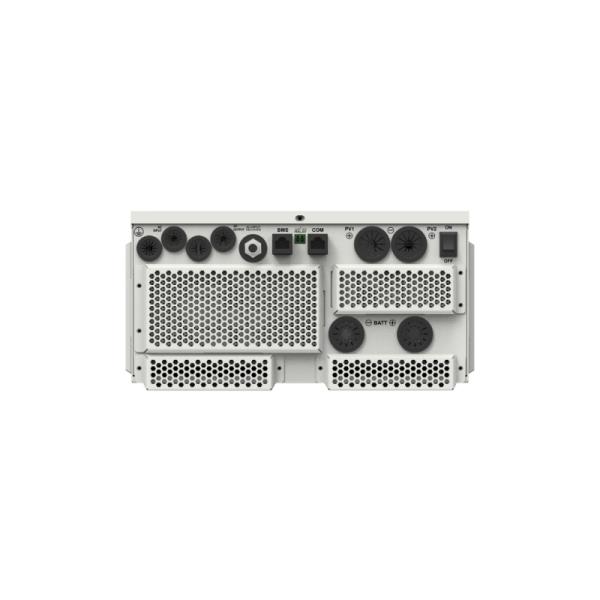

The brand new KP series is an inverter/charger that supports utility charging, oil generator charging, solar charging, utility
bypass, inverter output, and smart energy management. It supports parallel operation for multiple units in single phase or
three phase. The inverter with power of 3.5KW and 5.5KW perfectly suits residential applications, schools, health facilities,
government buildings, and areas where the electricity is unstable.

Specification

Model

KP3542-AH0650P20PS/C

KP3542-AH0650P20NS/C

KP5542-AH1050P20PD/C

KP5542-AH1050P20ND/C

KP5542-AH1050P20PS/C

KP5542-AH1050P20NS/C


Utility input


Utility Input Voltage

176VAC to 264VAC (Default)
90VAC to 285VAC (Configurable)


Utility Input Frequency

45Hz to 65Hz


Maximum Utility Charging Current

60A

100A


Switch Response Time

Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms


Inverter output


Inverter Rated Power (@30℃)

3500W

5500W


3-second Transient Surge Output Power

7000W

8500W


Inverter Output Voltage

220/230VAC±3%


Inverter Frequency

50/60Hz±0.2%


Output Voltage Waveform

Pure sine wave


Load Power Factor

0.2－1(VA ≤ Rated output power)


THDu (Total Harmonic Voltage Distortion)

≤3% (48V resistive load)


Maximum Load Efficiency

92%


Maximum Inverter Efficiency

94%


Parallel Function

Yes, 12 units in standard, 16 units at most

NO

Yes, 12 units in standard, 16 units at most

NO

Yes, 12 units in standard, 16 units at most

NO

Solar controller


PV Maximum Open-circuit Voltage

500V (At minimum operating environment temperature)
440V (At 25℃)


MPPT Voltage Range

85V to 400V


Number of MPPTs

1

2

1


PV Maximum Input Current

One way, 16A

Two ways, 2 x 16A

One way, 16A


PV Maximum Short-circuit Current

One way, 18A

Two ways, 2 x 18A

One way, 18A


PV Maximum Input Power

4000W

2 × 3000W

5000W


PV Maximum Charging Current

60A

100A

100A


MPPT Maximum efficiency

≥99.5%


Battery


Battery Rated Voltage

48VDC


Battery Work Voltage Range

43.2VDC to 64.0VDC


Battery Maximum Charging Current

60A

100A

100A


Others


No-load Losses

≤0.8A

≤1.1A

≤1.1A


Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input


Standby Current

≤0.6A

≤0.8A

≤0.8A


Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input

Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input


Communication with BMS

RS485


Communication with Portal

RS485


Work Temperature Range

-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)


Storage Temperature Range

-25℃ to +60℃


Enclosure

IP20 (With ANTI-DUST KIT)


Relative Humidity

< 95% (N.C.)


Altitude

<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)


Certifications and Standards

IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368


Mechanical parameters


Dimension (Length x Width x Height)

534mm × 300mm × 163mm

590mm × 300mm × 163mm

590mm × 300mm × 163mm


Mounting size (Length x Width)

512mm × 245mm

568mm × 245mm

568mm × 245mm


Mounting hole size

Φ9mm/Φ10mm

Φ9mm/Φ10mm

Φ9mm/Φ10mm


Net Weight

12.7Kg

12.2Kg

15.5Kg

14.7Kg

14.8Kg

14.2Kg
