Specifications
Brand Name :
Huawei
Model Number :
ETP23006-C1A1
Certification :
CE UL
MOQ :
1
Price :
1 USD
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
cartons
Type :
Telecom Power
Input :
53.5V 120A Max
Output :
220V
Inverter Model :
I23002G1 I23003G1
Output Power :
6KVA/4.8KW
Warranty :
2 Years
Description

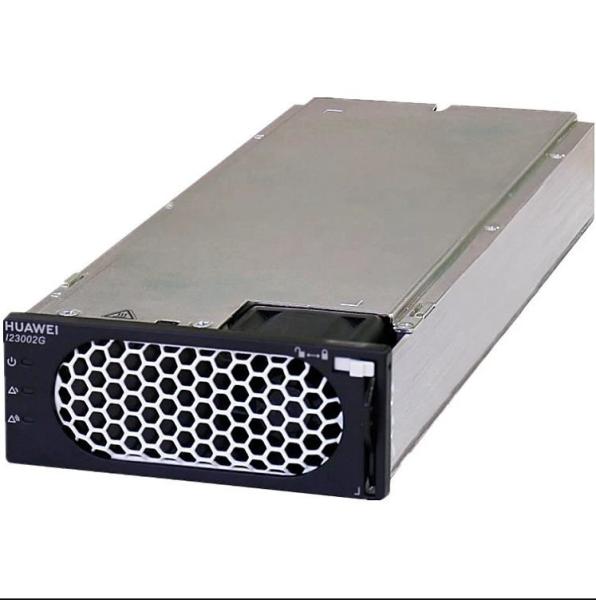

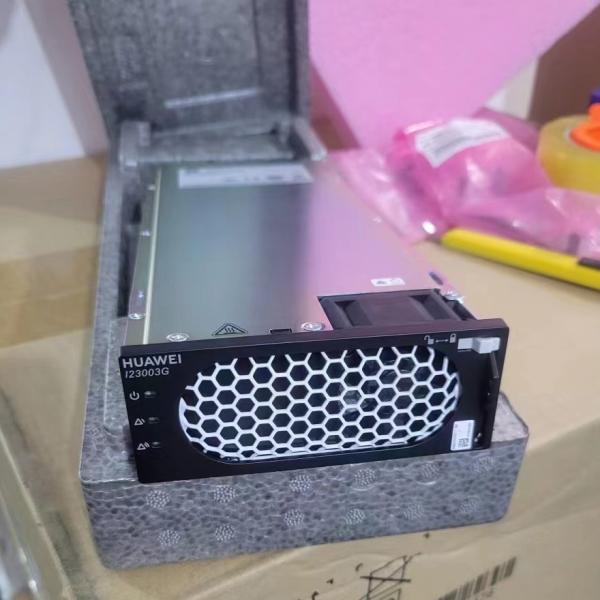

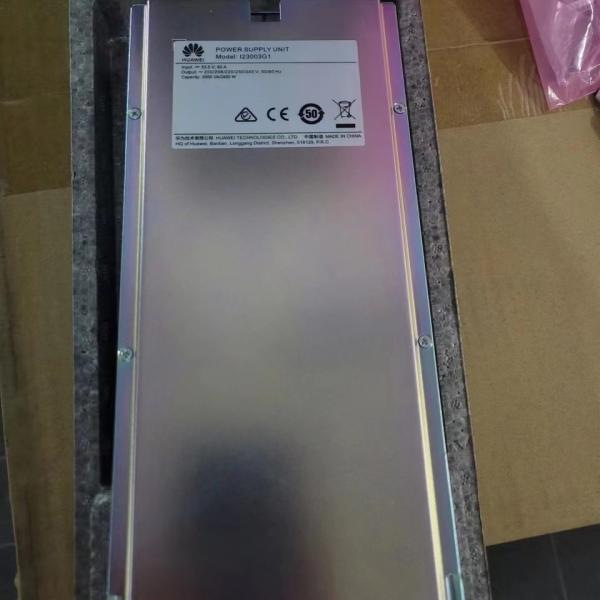

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

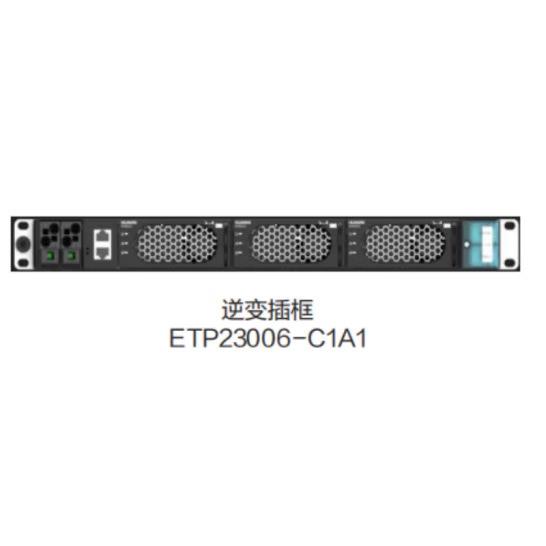

ETP23006-C1A1, Huawei DC to AC Embedded Inverter

1U height

Supports N+l backup

MAX Supports 3*I23003G Inverter Module

MAX Supoorts 6kVA output capacity

Supports remote management

Hot swap and online replacement

Apply to Communication site with AC equipment


Huawei ETP23006-C1A1 is a DC to AC embedded power supply, converts DC power into 220V AC power to provide high performance and uninterrupted AC power supply for AC devices.



Specification

Dimensions (H×W×D)

43.6mm×442mm×330mm

Weight

≤15kg

Heat Dissipation Mode

Air cooling

Protection Level

IP20

Output Capacity

6KVA Max

DC Input

Number of DC Input Channels

1*200A(Terminal)

Current

150A Max

Voltage

43.2 ~ 58 V, Rated 48V

Undervoltage Alarm Threshold

45V

Overvoltage Alarm Threshold

58V

Undervoltage Protection Threshold

Protection point:42V,Restoring point: 45V

Overvoltage Protection Threshold

Protection point:60V,Restoring point 58V

AC Output

Number of AC Output Channels

1*63A (Circuit breaker)

Output Voltage

220 Vac±2%

Output Frequency

50Hz±1%

Output Surge Protection

30KA/30KA

Peak Efficiency

≥94%

Output Power Factor

0.8

Overload Capability

105%≤ Load≤125%, the value is greater than 1min.
125%< Load≤150%, the value is greater than 5s. 150%< Load≤200%, the value is
greater than 1s

Output Current Peak Coefficient

3:1

Output Parallel Function

Support

Communication Port

CAN

Protection Function

DC Input

Overvoltage or undervoltage

AC Output

Overvoltage,undervoltage, overcurrent, over-power, short-circuit protection

Temperature

Overtemperature protection

Insulation Resistance

Not less than 2M

Audio Noise

<60DB

Reference Standards for &
Certification

CE passed the TUV and CE certification,obtained the CB certificateIEC/EN 62368,60950,TLC,RoHS,Reach,WEEE

Working Environment

Operating Temperature

-40ºC –+75ºC(+55°C derating)

Storage Temperature

–40℃-+75℃ (without package)

Altitude

0 -5000 m(1ºC per 200 m temperature derating from 2000 to 5000 m)

Relative Humidity

5% -95%(no condensation)



ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module


ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module


ETP23006-C1A1 6KVA Inverter Power Supply With I23002G1 I23003G1 Power Module

Solutions

We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.


FAQ :

1. How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.


2. What is your minimum order quantity?

A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.


3. Can you introduce your company?

A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.


4. What are the advantages of your company?

A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.


5. Can i send samples?Report it to me along with the price?

A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.


6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.


7 What about the quality ?

A:100% original with new package. we will test each item before posted to make sure each item with good quality.


8 How many months for guarantee ?

A: 1 year quality guarantee


9 How to deal with any inferior -quality goods ?

A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
